Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

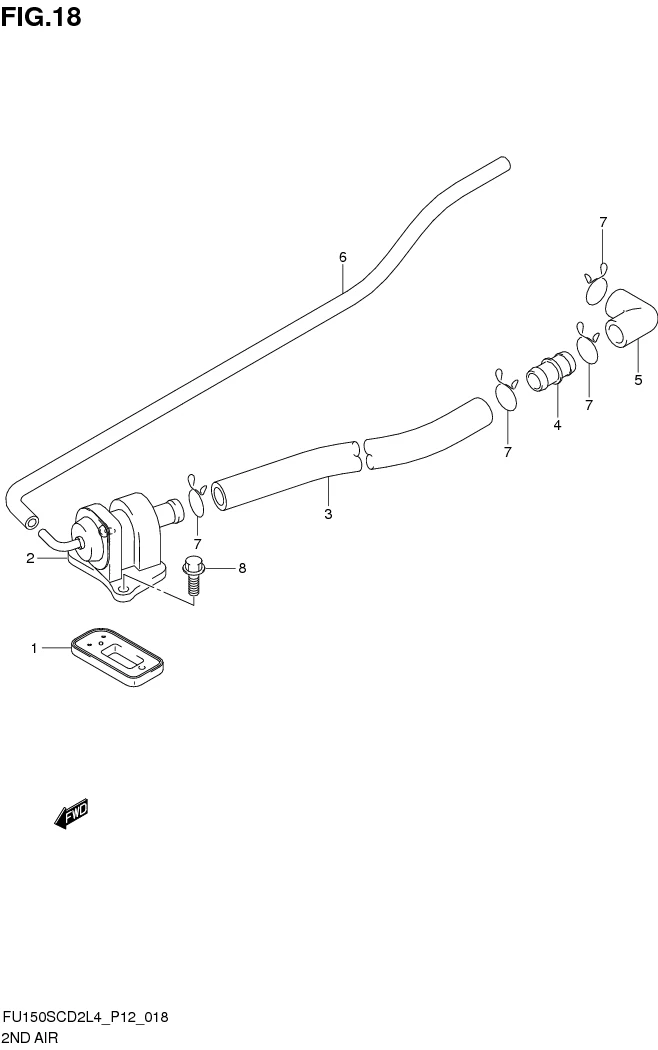

FIG.18 2ND AIR

FIG.18 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-06G10-000
SUB: 18450B06G10N000		 VALVE ASSY, 2ND AIR REED 1 Rp61.000
2 18510-25G20-000
SUB: 18510B25G20N000		 VALVE ASSY, AIR CUT 1 Rp116.500
3 09352-11163-600 HOSE, 2ND AIR CLEANER L:600->370 1 Rp116.000 L:600->370
4 13888-19B00-000 JOINT, 2ND AIR CLEANER HOSE 1 Rp7.000
5 18712-29F01-000
SUB: 18712B29F00N000		 HOSE, 2ND AIR CLEANER HOSE 1 Rp7.000
6 18762-25G00-000
SUB: 18762B25G00N000		 HOSE, 2ND AIR VALVE VACUUM 1 Rp11.000
7 09401-15101-000
SUB: 09401B15101N000		 CLIP 4 Rp3.000
8 01547-0616A-000
SUB: 01547B0616AN000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
