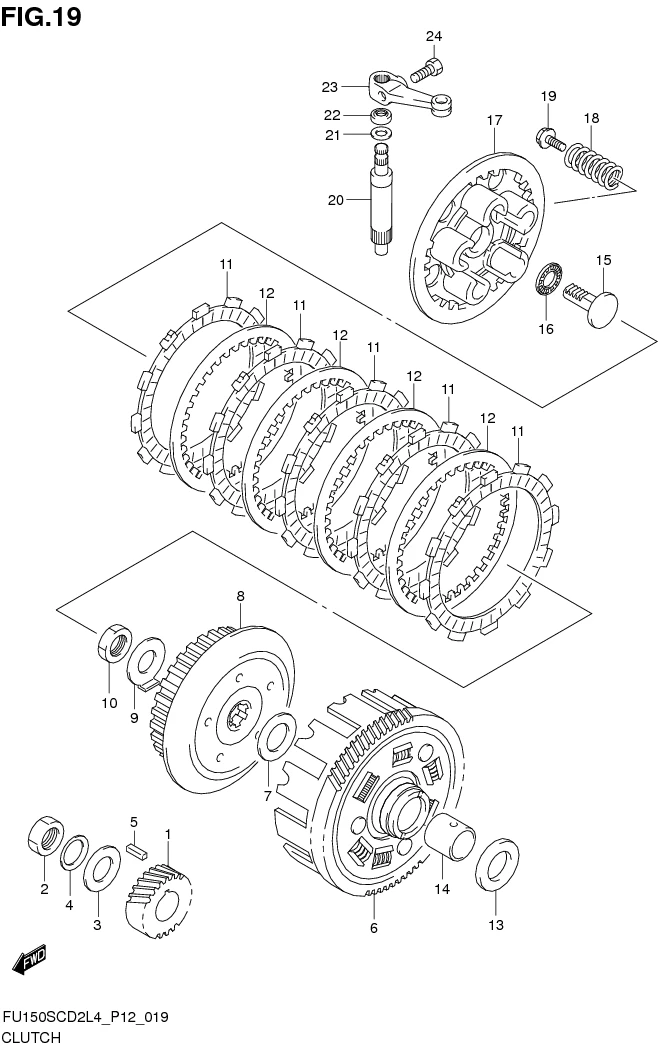

FIG.19 CLUTCH

FIG.19 CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 21111-25G20-000
SUB: 21111B25G10N000		 GEAR, PRIMARY DRIVE (NT:20) 1 Rp87.500
2 09140-16019-000
SUB: 09140B16019N000		 NUT 1 Rp11.000
3 09160-16003-000
SUB: 09160B16003N000		 WASHER (16X30X1) 1 Rp9.000
4 09164-16005-000
SUB: 09164B16005N000		 WASHER 1 Rp14.000
5 09421-04004-000
SUB: 09421B04004N000		 KEY, PRIMARY DRIVE GEAR 1 Rp6.500
6 21200-25G30-000
SUB: 21200B25G30N000		 GEAR, ASSY, PRIMARY DRIVEN 1 Rp540.000
7 08211-20352-000
SUB: 08211B20352N000		 WASHER 1 Rp10.500
8 21411-05220-000
SUB: 21411B05220N000		 HUB, CLUTCH SLEEVE 1 Rp56.500
9 09169-16009-000
SUB: 09169B16009N000		 WASHER 1 Rp5.500
10 09140-16001-000
SUB: 09140B16001N000		 NUT 1 Rp11.000
11 21441-25G00-000
SUB: 21441B25G00N000		 PLATE, DRIVE 5 Rp46.500
12 21451-28030-000
SUB: 21451B28030N000		 PLATE, DRIVEN 4 Rp21.000
13 21212-25G00-000
SUB: 21212B25G00N000		 SPACER (20.1X36X6) 1 Rp22.500
14 21251-13E20-000
SUB: 21251B13E20N000		 SPACER, PRIMARY DRIVEN 1 Rp79.000
15 23165-28301-000 RACK, CLUTCH RELEASE 1 Rp181.500
16 09263-10L04-000
SUB: 09263B10L04N000		 BEARING (10.1X22X2.8) 1 Rp32.000
17 21462-46910-000
SUB: 21462B46910N000		 DISC, CLUTCH PRESSURE 1 Rp89.000
18 09440-15043-000
SUB: 09440B15043N000		 SPRING 5 Rp4.000
19 09116-05147-000
SUB: 09116B05147N000		 BOLT 5 Rp8.000
20 23261-13A21-000
SUB: 23261B13A20N000		 PINION, RELEASE 1 Rp53.500
21 09160-12086-000
SUB: 09160B12086N000		 WASHER (12.5X17X1) 1 Rp7.000
22 09285-10008-000
SUB: 09285B10005N000		 SEAL (10X17X5) 1 Rp9.500
23 23271-47E00-000 ARM, RELEASE 1 Rp336.500
24 01500-0616A-000
SUB: 01500B0616BN000		 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
