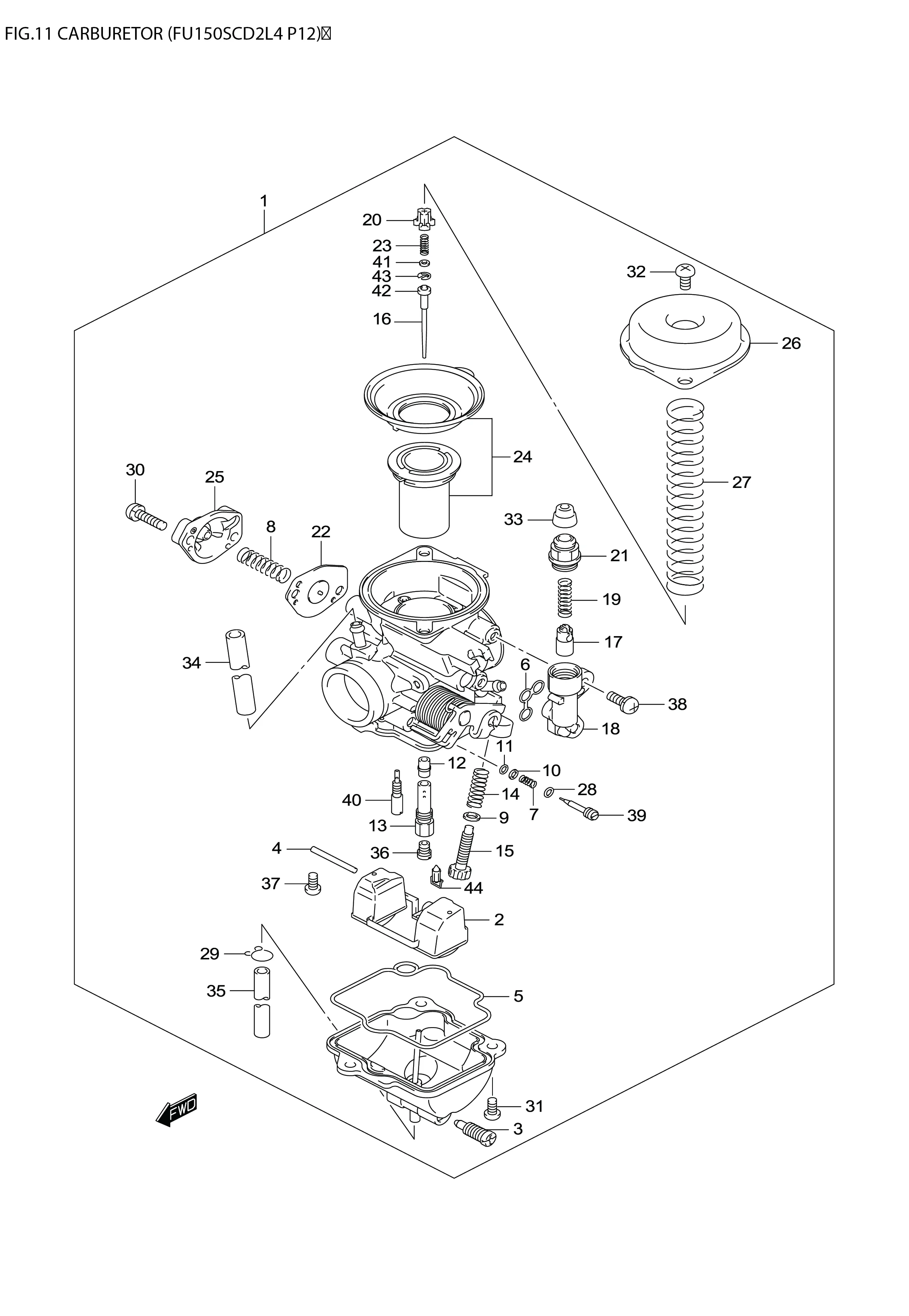

FIG.11 CARBURETOR (FU150SCD2L4 P12)

FIG.11 CARBURETOR (FU150SCD2L4 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 13200-25G50-000
SUB: 13200B25G50N000		 CARBURETOR ASSY 1 Rp1.184.000
2 13240-47E01-000
SUB: 13240B47E01N000		 â?¢FLOAT ASSY 1 Rp39.000
3 13247-25600-000
SUB: 13247B25600N000		 â?¢SCREW 1 Rp8.500
4 13254-20010-000
SUB: 13254B20010N000		 â?¢PIN, FLOAT 1 Rp7.500
5 13258-23F00-000
SUB: 13258B23F00N000		 â?¢O RING 1 Rp13.500
6 13258-23F10-000
SUB: 13258B23F10N000		 â?¢O RING 1 Rp14.000
7 13268-47070-000
SUB: 13268B47070N000		 â?¢SPRING 1 Rp8.000
8 13271-13F00-000 â?¢SPRING 1 Rp10.500
9 13285-07F00-000 â?¢PACKING 1 Rp15.500
10 13291-29900-000
SUB: 13291B29900N000		 â?¢WASHER 1 Rp6.500
11 13295-29900-000
SUB: 13295B29900N000		 â?¢O RING 1 Rp8.000
12 13383-25G10-000 â?¢NEEDLE, JET 1 Rp30.500
13 13342-25G00-000
SUB: 13342B25G00N000		 â?¢HOLDER, JET 1 Rp47.500
14 13342-82370-000 â?¢SPRING 1 Rp34.000
15 13372-18237-000
SUB: 13372B18237N000		 â?¢SCREW, ADJUST 1 Rp43.000
16 13341-25G00-000 â?¢JET, NEEDLE 1 Rp27.000
17 13411-01010-000
SUB: 13411B01010N000		 â?¢PLUNGER, STARTER 1 Rp13.000
18 13412-25G00-000
SUB: 13412B25G00N000		 â?¢BODY, STARTER ASSY 1 Rp354.000
19 13417-01010-000
SUB: 13417B01010N000		 â?¢SPRING, STARTER 1 Rp6.500
20 13418-12F40-000
SUB: 13418B12F40N000		 â?¢HOLDER 1 Rp12.500
21 13418-43410-000
SUB: 13418B43410N000		 â?¢HOLDER, GUIDE 1 Rp7.500
22 13480-10F00-000
SUB: 13480B10F00N000		 â?¢DIAPHRAGM ASSY 1 Rp35.000
23 13481-33E00-000
SUB: 13481B33E00N000		 â?¢SPRING 1 Rp7.000
24 13501-25G10-000
SUB: 13501B25G10N000		 â?¢PISTON VALVE ASSY 1 Rp103.500
25 13502-10F00-000
SUB: 13502B10F00N000		 â?¢COVER ASSY 1 Rp45.000
26 13502-46G10-000
SUB: 13502B46G10N000		 â?¢COVER, DIAPHRAGM 1 Rp32.500
27 13503-25G00-000
SUB: 13503B25G00N000		 â?¢SPRING 1 Rp13.000
28 13509-17C00-000
SUB: 13509B17C00N000		 â?¢O RING 1 Rp7.500
29 13259-98010-000
SUB: 13529B98010N000		 â?¢CLIP 1 Rp9.500
30 13601-04148-000
SUB: 13601B04148N000		 â?¢SCREW 2 Rp8.000
31 DISCONTINUE
SUB: 13602B05088N000		 â?¢SCREW 2 -
32 13602-38A10-000
SUB: 13602B38A10N000		 â?¢CAP 1 Rp8.500
33 13681-04010-000
SUB: 13681B04010N000		 â?¢O RING 1 Rp6.500
34 09352-40703-230
SUB: 09352-40703-600		 â?¢HOSEL:600->350 1 Rp11.000 L:600->350
35 13684-47E00-000
SUB: 13684B47E00N000		 â?¢HOSE 1 Rp10.000
36 09491-22025-000
SUB: 09491B22025N000		 â?¢JET,MAIN (112.5) 1 Rp14.500
37 02112-04083-000
SUB: 02112B04083N000		 â?¢SCREW 1 Rp7.500
38 02112-35127-000
SUB: 02112B35127N000		 â?¢SCREW 2 Rp9.500
39 13279-25G00-000
SUB: 13279B25G00N000		 â?¢ADJUSTER 1 Rp43.000
40 09492-12003-000
SUB: 09492B12003N000		 â?¢JET,PILOT(12.5) 1 Rp19.000
41 13382-16D30-000
SUB: 13382B16D30N000		 â?¢WASHER 1 Rp7.000
42 13387-47010-000
SUB: 13387B47010N000		 â?¢RING 1 Rp7.500
43 13394-10010-000
SUB: 13394B10010N000		 â?¢CLIP 1 Rp6.000
44 13370-25G00-000
SUB: 13372B26H40N000		 â?¢NEEDLE ASSY 1 Rp164.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
