Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

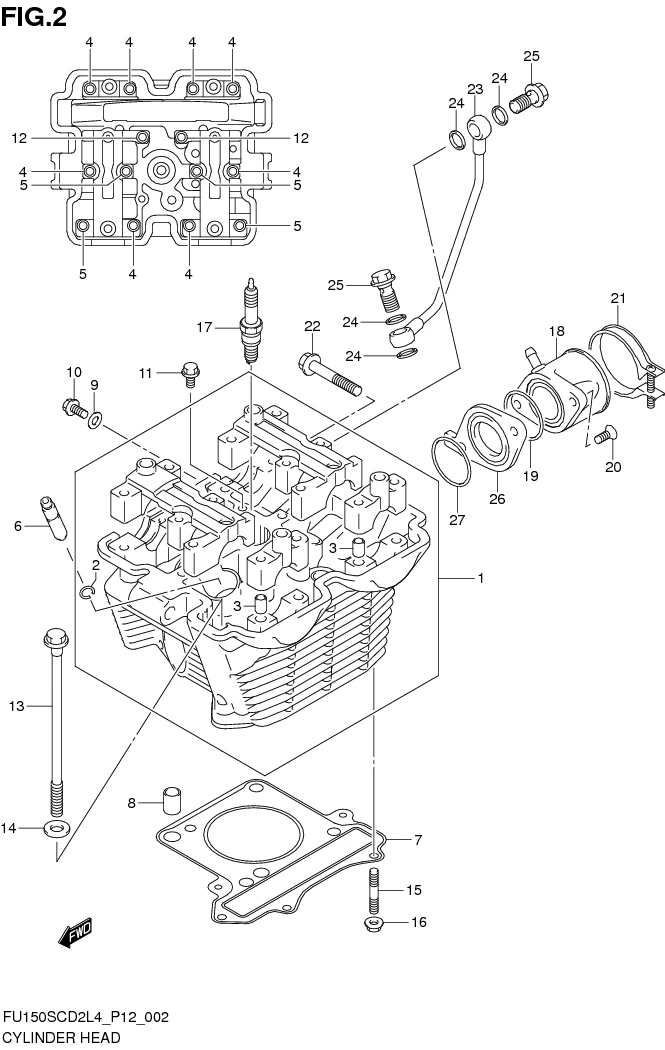

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-25G50-000
SUB: 11100B25G30N0T0		 HEAD ASSY, CYLINDER 1 Rp1.196.500
2 09381-10004-000
SUB: 09381B10004N000		 •SNAP RING 4 Rp3.000
3 09206-08001-000
SUB: 09206B08001N000		 •PIN (6.2X8X11) 8 Rp5.500
4 09103-06132-000
SUB: 09103B06132N000		 •BOLT (6X41) 8 Rp3.500
5 09103-06513-000
SUB: 09103B06513N000		 •BOLT (6X35) 4 Rp4.000
5 09168-06004-000
SUB: 09168B06004N000		 GASKET (6.2X11X1.2) 1 Rp2.500
6 11115-33D71-000 GUIDE, VALVE (OS:0.3) 8 Rp214.000 OPT
7 11141-25G10-000
SUB: 11141B25G10N000		 GASKET, CYLINDER HEAD 1 Rp77.000
8 04211-11169-000
SUB: 04211B11169N000		 PIN 2 Rp2.000
10 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
11 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
12 09103-06513-000
SUB: 09103B06513N000		 BOLT (6X35) 2 Rp4.000
13 09103-08305-000 BOLT (8X140) 4 Rp70.500
14 09160-08164-000
SUB: 09160B08164N000		 GASKET (8.5X18X2.3) 4 Rp6.500
15 01421-0625A-000
SUB: 01421B0625AN000		 BOLT 3 Rp7.000
16 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
17-1 09482-00456-000
SUB: 09482B00456N000		 SPARK PLUG (NGK,CR8E) 1 Rp26.000
17-6 DISCONTINUE
SUB: 09482-00461-000		 SPARK PLUG (DENSO,U31ESR-N) 2 - OPT
17-5 DISCONTINUE
SUB: 09482-00459-000		 SPARK PLUG (DENSO,U27ESR-N) 2 - OPT
17-4 DISCONTINUE
SUB: 09482-00460-000		 SPARK PLUG (NGK,CR10E) 2 - OPT
17-3 09482-00458-000 SPARK PLUG (NGK,CR9E) 2 Rp143.000 OPT
17-2 09482-00457-000
SUB: 09482B00457N000		 SPARK PLUG (DENSO,U24ESR-N) 1 Rp21.500
18 13110-25G00-000
SUB: 13110B25G00N000		 PIPE ASSY, INTAKE 1 Rp113.500
19 09280-35001-000
SUB: 09280B35001N000		 O RING (D:1.9,ID:34.6) 1 Rp2.500
20 02122-0620A-000
SUB: 02122B0620AN000		 SCREW 2 Rp3.500
21 DISCONTINUE
SUB: 13170-46G00-000		 CLAMP 1 -
22 09103-08289-000
SUB: 09103B08289N000		 BOLT (8X50) 1 Rp12.500
23-1 DISCONTINUE
SUB: 11280-47E00-000		 PIPE, HEAD OIL 1 -
23-2 DISCONTINUE
SUB: 11280B47E20N000		 PIPE, HEAD OIL 1 -
24 09168-10012-000 GASKET (10.5X14X1) 4 Rp13.000
25 09360-10047-000
SUB: 09360B10047N000		 UNION BOLT 2 Rp7.500
26 13128-25G00-000 INSULATOR 1 Rp52.000
27 09280-35001-000
SUB: 09280B35001N000		 O RING (D:1.9,ID:34.6) 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
