Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

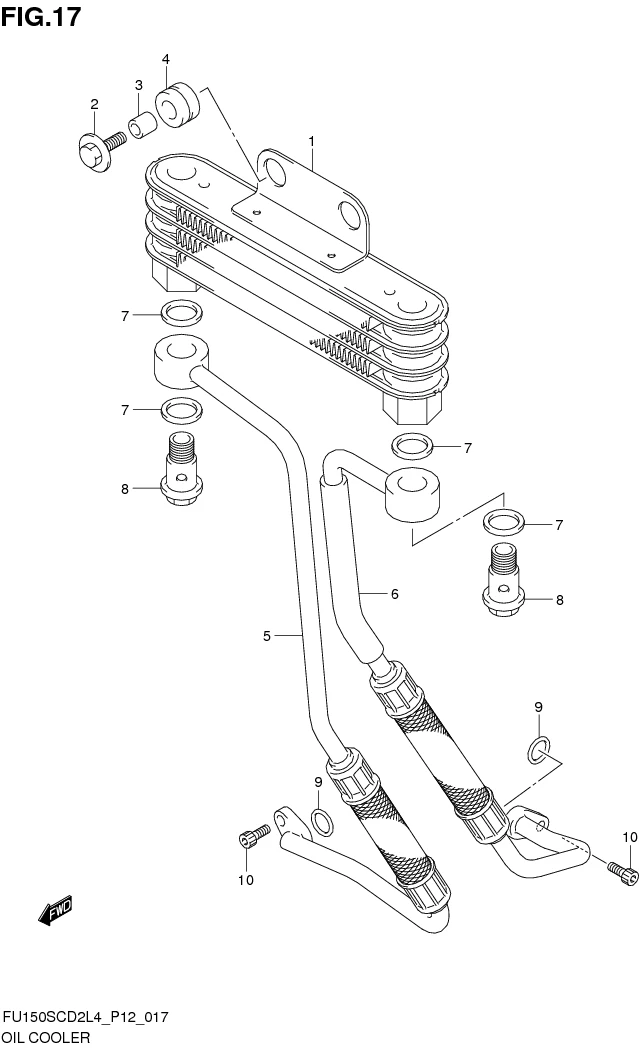

FIG.17 OIL COOLER

FIG.17 OIL COOLER
No No. Part Description Qty Price Per Pcs Remarks
1 16600-25G10-000
SUB: 16600B25G10N000		 COOLER ASSY, OIL 1 Rp344.500
2 09116-06167-000
SUB: 09116-06167L000		 BOLT (6X20) 2 Rp7.000
3 09180-06310-000
SUB: 09180B06310N000		 SPACER (6.5X10X10) 2 Rp5.000
4 09320-10015-000
SUB: 09320-10015L000		 CUSHION 2 Rp5.500
5 16460-25G10-000
SUB: 16460-25G00-000		 HOSE, OIL COOLER RH 1 Rp270.000
6 16470-25G10-000
SUB: 16470-25G00-000		 HOSE, OIL COOLER LH 1 Rp270.000
7 09168-14015-000 GASKET (14X20X1.5) 4 Rp7.500
8 09360-12006-000 BOLT, UNION (12X28) 2 Rp56.500
9 09280-12017-000
SUB: 09280B12017N000		 O RING 2 Rp13.500
10 07130-0616A-000
SUB: 07130B0616AN000		 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
