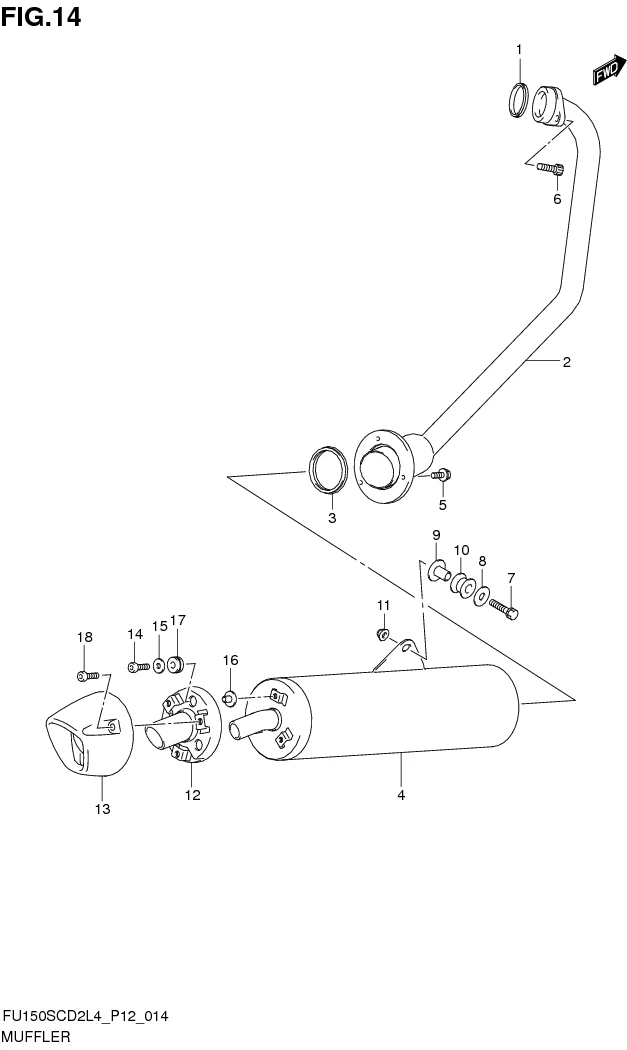

FIG.14 MUFFLER (FU150SCD2L4 P12)

FIG.14 MUFFLER (FU150SCD2L4 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 14181-47E20-000
SUB: 14181B47E20N000		 GASKET, EXHAUST PIPE 1 Rp9.000
2 14150-25G01-000
SUB: 14150B25G00N000		 PIPE, EXHAUST 1 Rp197.500
3 14181-25G10-000
SUB: 14181B25G10N000		 GASKET 1 Rp8.500
4 14310-25G40-000
SUB: 14310B25G40N000		 BODY, MUFFLER 1 Rp765.500
5 01550-0620B-000
SUB: 01550B0620BN000		 BOLT 3 Rp3.500
6 07130-0825A-000
SUB: 07130B0825BN000		 BOLT 2 Rp4.000
7 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
8 09160-08134-000
SUB: 09160B08134N000		 WASHER (8.5X26X1.6) 1 Rp7.500
9 09180-08151-000
SUB: 09180B08151N000		 SPACER (8.6X12X17.5) 1 Rp22.000
10 09320-12032-000
SUB: 09320-12043-000		 CUSHION 1 Rp5.000
11 08319-3108A-000
SUB: 08319B3108AN000		 NUT 1 Rp4.000
12 14760-25G40-000
SUB: 14760B25G40N000		 STAY, REAR COVER 1 Rp94.000
13 14790-25G40-019
SUB: 14790B25G40N000		 COVER, MUFFLER REAR 1 Rp206.500
14 07130-0616A-000
SUB: 07130B0616AN000		 BOLT 3 Rp3.500
15 09160-06028-000
SUB: 09160B06028N000		 WASHER (6.5X18X1) 3 Rp3.500
16 09169-06091-000
SUB: 09169B06057N000		 SPACER 3 Rp4.500
17 09320-08082-000
SUB: 09320B08082N000		 CUSHION 3 Rp10.500
18 09106-06069-000
SUB: 09106B06069N000		 BOLT (6X15) 3 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
