Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

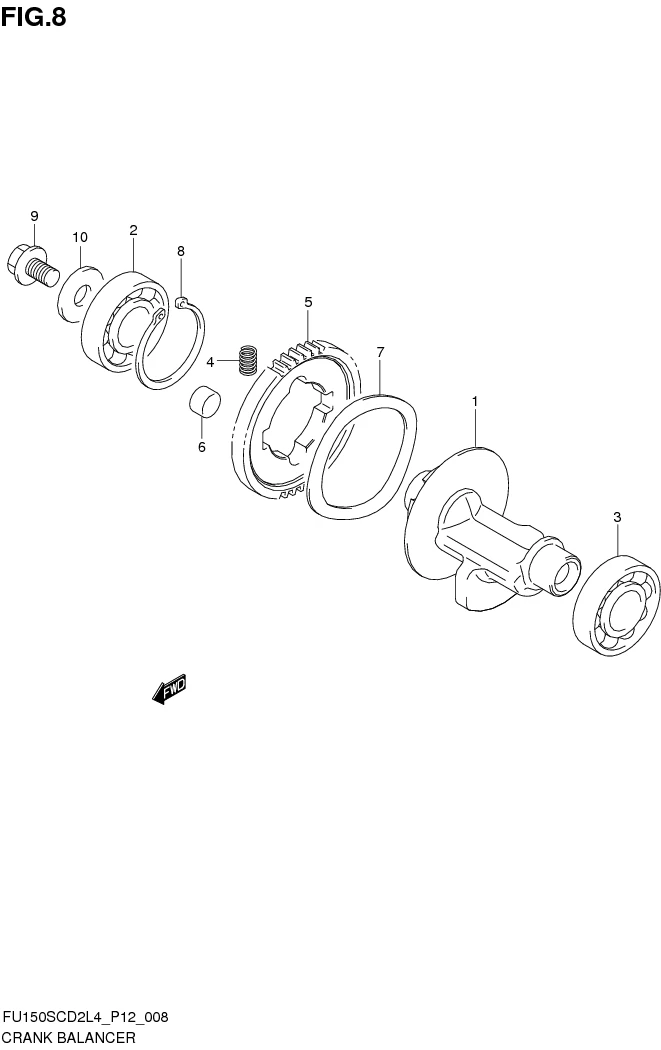

FIG.8 CRANK BALANCER

FIG.8 CRANK BALANCER
No No. Part Description Qty Price Per Pcs Remarks
1 12650-25G20-000
SUB: 12650B25G20N000		 BALANCER, CRANK 1 Rp181.000
2 09262-20L03-000
SUB: 09262B20L03N000		 BEARING (20X42X12) RH 1 Rp94.500 RH
3 09262-20L02-000
SUB: 09262B20L02N000		 BEARING (20X47X14) LH 1 Rp75.500 LH
4 12663-47E50-000
SUB: 12663B47E50N000		 SPRING 2 Rp3.000
5 12666-25G01-000
SUB: 12666B25G01N000		 GEAR 1 Rp144.500
6 12686-25G31-000
SUB: 12686B25G20N000		 DAMPER 2 Rp18.500
7 09164-58006-000
SUB: 09164-58002-000		 WASHER 1 Rp20.500
8 09380-38009-000
SUB: 09380B38009N000		 CIRCLIP 1 Rp16.500
9 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 1 Rp5.500
10 08211-10285-000
SUB: 08211B10285N000		 WASHER 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
