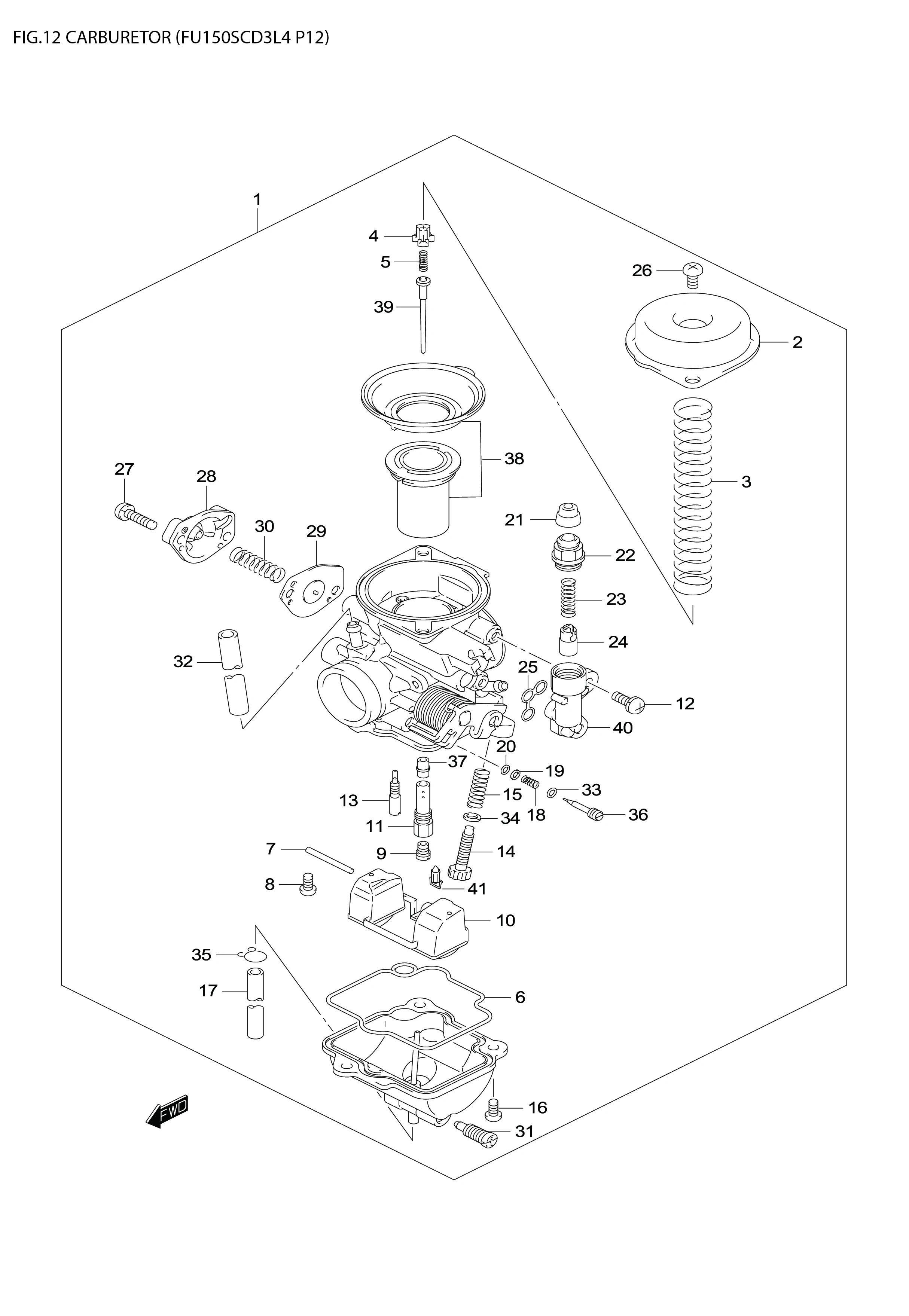

FIG.12 CARBURETOR (FU150SCD3L4 P12)

FIG.12 CARBURETOR (FU150SCD3L4 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 13200-25G60-000
SUB: 13200B25G60N000		 CARBURETOR ASSY 1 Rp1.318.000
2 13502-46G10-000
SUB: 13502B46G10N000		 â?¢DIAPHRAGM COVER 1 Rp32.500
3 13503-25G00-000
SUB: 13503B25G00N000		 â?¢SPRING 1 Rp13.000
4 13418-12F40-000
SUB: 13418B12F40N000		 â?¢HOLDER 1 Rp12.500
5 13481-45H00-000
SUB: 13481B45H00N000		 â?¢SPRING 1 Rp8.500
6 13258-23F00-000
SUB: 13258B23F00N000		 â?¢O RING 1 Rp13.500
7 13254-20010-000
SUB: 13254B20010N000		 â?¢PIN 1 Rp7.500
8 02112-04083-000
SUB: 02112B04083N000		 â?¢SCREW 1 Rp7.500
9 09491-22013-000 â?¢JET, MAIN (110) 1 Rp25.000
10 13240-47E01-000
SUB: 13240B47E01N000		 â?¢FLOAT ASSY 1 Rp39.000
11 13342-25G00-000
SUB: 13342B25G00N000		 â?¢HOLDER, JET 1 Rp47.500
12 02112-35127-000
SUB: 02112B35127N000		 â?¢SCREW 2 Rp9.500
13 09492-12014-000
SUB: 09492B12014N000		 â?¢JET, PILOT (12.5) 1 Rp22.500
14 13372-18237-000
SUB: 13372B18237N000		 â?¢SCREW 1 Rp43.000
15 13342-82370-000 â?¢SPRING 1 Rp34.000
16 13602-42A20-000
SUB: 13602B42A20N000		 â?¢SCREW 3 Rp7.000
17 13684-47E00-000
SUB: 13684B47E00N000		 â?¢HOSE 1 Rp10.000
18 13268-47070-000
SUB: 13268B47070N000		 â?¢SPRING 1 Rp8.000
19 13291-29900-000
SUB: 13291B29900N000		 â?¢WASHER 1 Rp6.500
20 13295-29900-000
SUB: 13295B29900N000		 â?¢O RING 1 Rp8.000
21 13681-04010-000
SUB: 13681B04010N000		 â?¢CAP 1 Rp6.500
22 13418-43410-000
SUB: 13418B43410N000		 â?¢GUIDE HOLDER 1 Rp7.500
23 13417-01010-000
SUB: 13417B01010N000		 â?¢SPRING 1 Rp6.500
24 13411-01010-000
SUB: 13411B01010N000		 â?¢PLUNGER ASSY 1 Rp13.000
25 13258-23F10-000
SUB: 13258B23F10N000		 â?¢O RING 1 Rp14.000
26 DISCONTINUE
SUB: 13602B05088N000		 â?¢SCREW 2 -
27 13601-04148-000
SUB: 13601B04148N000		 â?¢SCREW 2 Rp8.000
28 13502-10F00-000
SUB: 13502B10F00N000		 â?¢COVER ASSY 1 Rp45.000
29 13480-10F00-000
SUB: 13480B10F00N000		 â?¢DIAPHRAGM ASSY 1 Rp35.000
30 13271-10F00-000
SUB: 13271B10F00N000		 â?¢SPRING 1 Rp7.500
31 13247-25600-000
SUB: 13247B25600N000		 â?¢SCREW 1 Rp8.500
32 09352-40703-230
SUB: 09352-40703-600		 â?¢HOSEL:600->350 1 Rp11.000 L:600->350
33 13509-17C00-000
SUB: 13509B17C00N000		 â?¢O RING 1 Rp7.500
34 13285-07F00-000 â?¢PACKING 1 Rp15.500
35 13259-98010-000
SUB: 13529B98010N000		 â?¢CLIP 1 Rp9.500
36 13662-13H20-000
SUB: 13662B13H20N000		 â?¢ADJUSTER 1 Rp33.000
37 13383-25G20-000 â?¢NEEDLE,JET 1 Rp17.500
38 13501-25G00-000
SUB: 13501B25G00N000		 â?¢PISTON VALVE ASSY 1 Rp85.000
39 13341-25G10-000 â?¢JET, NEEDLE 1 Rp27.000
40 13412-25G00-000
SUB: 13412B25G00N000		 â?¢BODY,STARTER ASSY 1 Rp354.000
41 13370-25G00-000
SUB: 13372B26H40N000		 â?¢NEEDLE ASSY 1 Rp164.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
