Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

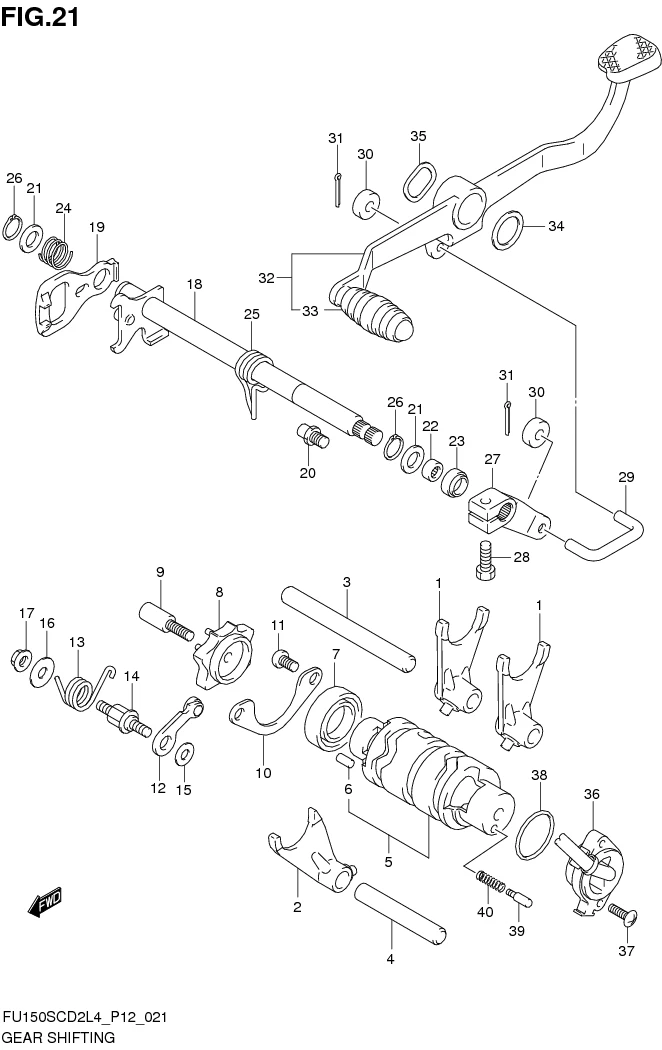

FIG.21 GEAR SHIFTING

FIG.21 GEAR SHIFTING
No No. Part Description Qty Price Per Pcs Remarks
1 25211-25G10-000
SUB: 25211B25G10N000		 FORK, GEAR SHIFTING NO.1 2 Rp44.000
2 25231-25G10-000
SUB: 25231B25G10N000		 FORK, GEAR SHIFTING NO.3 1 Rp44.000
3 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
3 25411-25G10-000
SUB: 25411B25G00N000		 SHAFT, GEAR SHIFTING NO.1 1 Rp74.500
4 25421-25G10-000
SUB: 25421B25G00N000		 SHAFT, GEAR SHIFTING NO.2 1 Rp73.500
5 25310-25G10-000
SUB: 25310B25G10N000		 CAM, GEAR SHIFTING 1 Rp143.500
6 04221-04089-000
SUB: 04221B04089N000		 •PIN 1 Rp3.500
7 08110-69050-000
SUB: 08113B69050N000		 BEARING, GEAR SHIFT CAM 1 Rp53.000
8 25381-25G20-000
SUB: 25381B25G20N000		 PLATE, GEAR SHIFT CAM 1 Rp75.500
9 25312-12C10-000
SUB: 25312B12C10N000		 STOPPER, SHIFT CAM 1 Rp20.500
10 24741-12B00-000
SUB: 24741B12B00N000		 RETAINER 1 Rp14.500
12 25350-26D01-000
SUB: 25350B26D01N000		 STOPPER, CAM 1 Rp17.000
13 25355-26D10-000
SUB: 25355B26D21N000		 SPRING, STOPPER 1 Rp3.000
14 25356-25G00-000
SUB: 25356B25G00N000		 SUPPORT, CAM STOPPER 1 Rp42.500
15 08211-06141-000
SUB: 08211B06141N000		 WASHER 1 Rp9.500
16 08211-06181-000
SUB: 08211B06181N000		 WASHER 1 Rp9.500
17 08316-1006A-000
SUB: 08316B1006AN000		 NUT, CAM 1 Rp2.000
18 25510-47E21-000
SUB: 25510B47E21N000		 SHAFT, GEAR SHIFTING 1 Rp66.000
19-1 DISCONTINUE
SUB: 25512-13E11-000		 PLATE, GEAR SHIFT CAM 1 -
19-2 25512-13E20-000
SUB: 25512B13E20N000		 PLATE, GEAR SHIFT CAM 1 Rp163.500
20 25671-01030-000
SUB: 25671B01030N000		 STOPPER, GEAR SHIFT 1 Rp4.500
21 09181-14167-000
SUB: 09181B14167N000		 WASHER (14X22X1) 2 Rp13.000
22 09263-14027-000
SUB: 09263B14027N000		 BEARING, LH (14X20X12) 1 Rp43.500
23 09283-14014-000
SUB: 09283B14L03N000		 SEAL (14X22X6) 1 Rp9.000
24 09440-17009-000 SPRING 1 Rp13.000
25 09444-20007-000
SUB: 09444B20007N000		 SPRING 1 Rp4.500
26 08331-3114A-000 CIRCLIP 2 Rp12.500
27 25520-25G00-000
SUB: 25520B25G00N000		 ARM, GEAR SHIFT LINK 1 Rp18.000
28 01500-0620A-000
SUB: 01500B0620AN000		 BOLT 1 Rp4.500
29 25525-25G00-000
SUB: 25525B25G00N000		 ROD, GEAR SHIFT LINK 1 Rp4.500
30 DISCONTINUE
SUB: 09161B06024N000		 WASHER 2 -
31 04111-2015A-000
SUB: 04111B2015AN000		 PIN 2 Rp4.500
32 25600-25G20-000
SUB: 25600B25G20N000		 LEVER ASSY, GEAR SHIFTING 1 Rp106.500
33 25652-16H11-000
SUB: 25652B16H10N000		 •RUBBER, PEDAL 1 Rp3.500
34 09161-18005-000 WASHER (18.2X26X0.8) 1 Rp58.000
35 09164-18002-000
SUB: 09164B18002N000		 WASHER (18.7X26X0.3) 1 Rp3.500
36 37720-25G10-000
SUB: 37720B25G10N000		 BASE ASSY, GEAR SHIFT TERM 1 Rp45.500
37 02112-7516A-000
SUB: 02112B7516AN000		 SCREW 2 Rp7.000
38 37722-25G00-000
SUB: 37722B25G00N000		 O RING (D:2.4,ID:26.2) 1 Rp7.500
39 09209-05011-000
SUB: 09209B05011N000		 CONTACT 1 Rp5.500
40 09440-04010-000
SUB: 09440B04010N000		 SPRING 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
