Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CRANK BALANCER FIG.9 CAM SHAFT/VALVE FIG.10 CAM CHAIN FIG.11 CARBURETOR (FU150SCD2L4 P12) FIG.12 CARBURETOR (FU150SCD3L4 P12) FIG.13 AIR CLEANER FIG.14 MUFFLER (FU150SCD2L4 P12) FIG.15 MUFFLER (FU150SCD3L4 P12) FIG.16 OIL PUMP FIG.17 OIL COOLER FIG.18 2ND AIR FIG.19 CLUTCH FIG.20 TRANSMISSION FIG.21 GEAR SHIFTING FIG.22 KICK STARTER

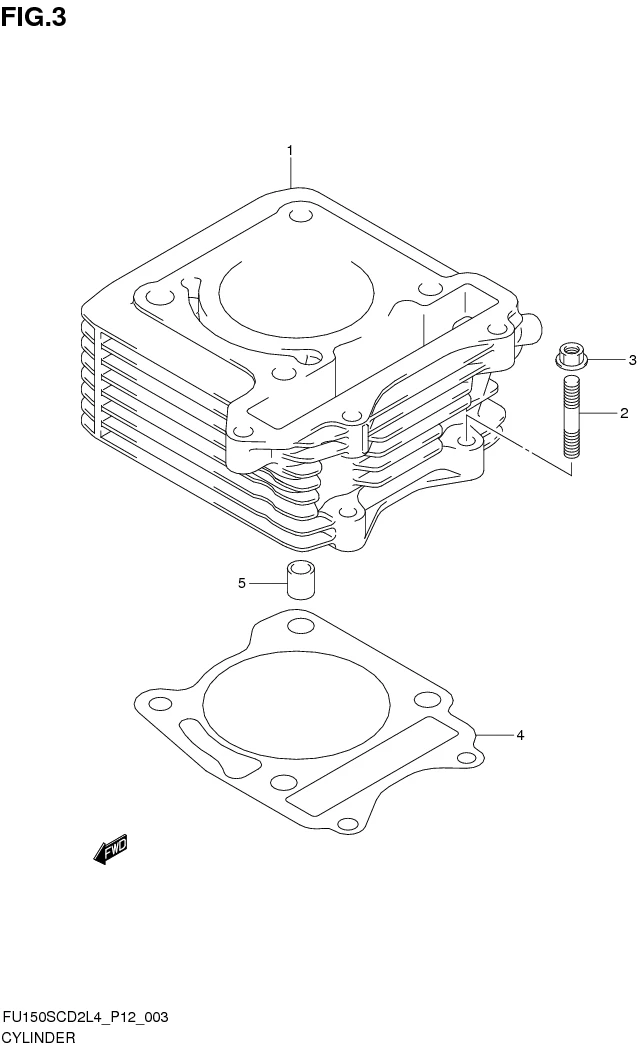

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 11211-25G50-0F0
SUB: 11211-25G00-0F0		 CYLINDER 1 Rp1.712.500
1-2 11211-25G50-0F0
SUB: 11211B25G50N0F0		 CYLINDER 1 Rp1.712.500
2 01421-0625A-000
SUB: 01421B0625AN000		 STUD BOLT 2 Rp7.000
3 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
4 11241-25G10-000
SUB: 11241B25G10N000		 GASKET, CYLINDER 1 Rp7.500
5 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
