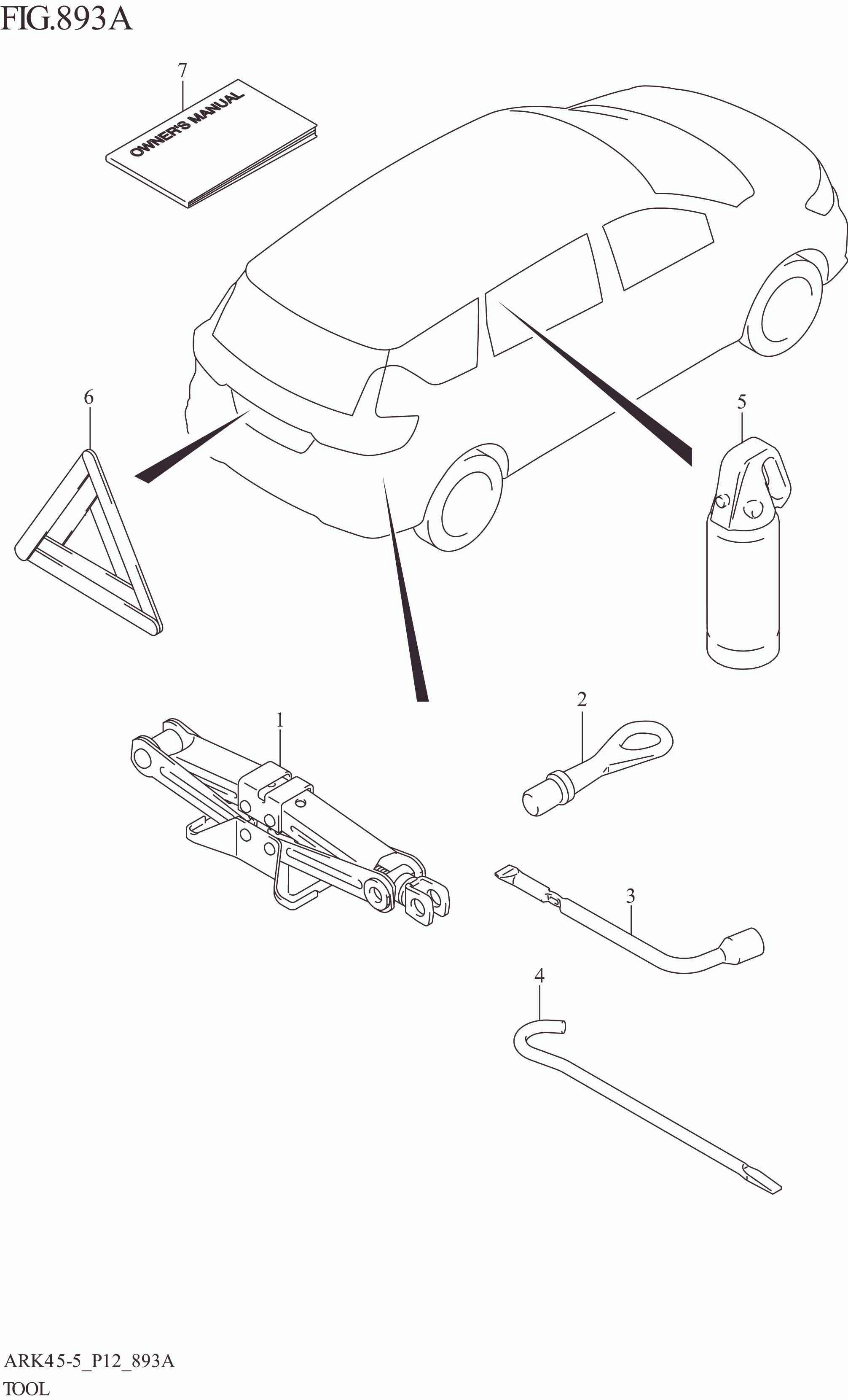

FIG. 893A TOOL

FIG. 893A TOOL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	89910-72SA0-000	JACK ASSY	1	Rp443.000	XL7
2	89969-52R00-000	BOLT,TOWING HOOK	1	Rp76.500
3	09816-00169-000	WRENCH,WHEEL (19)	1	Rp88.000
4	09827-00004-000	LEVER,JACK HANDLE	1	Rp23.000
5	89970-73R00-000	EXTINGUISHER,FIRE	1	Rp1.248.500
6-1	89950-73R00-000	PLATE,TRIANGLE	1	Rp266.500	UP TO 202203
6-2	89950-73R01-000	PLATE,TRIANGLE	1	Rp341.000	FROM 202204
7-1	99011-86TK1-12N SUB: 99011-86TK0-12N	MANUAL,OWNER'S	1	Rp72.000	UP TO 202212
7-2	99011-86TK1-12N	MANUAL,OWNER'S	1	Rp72.000	FROM 202301

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
