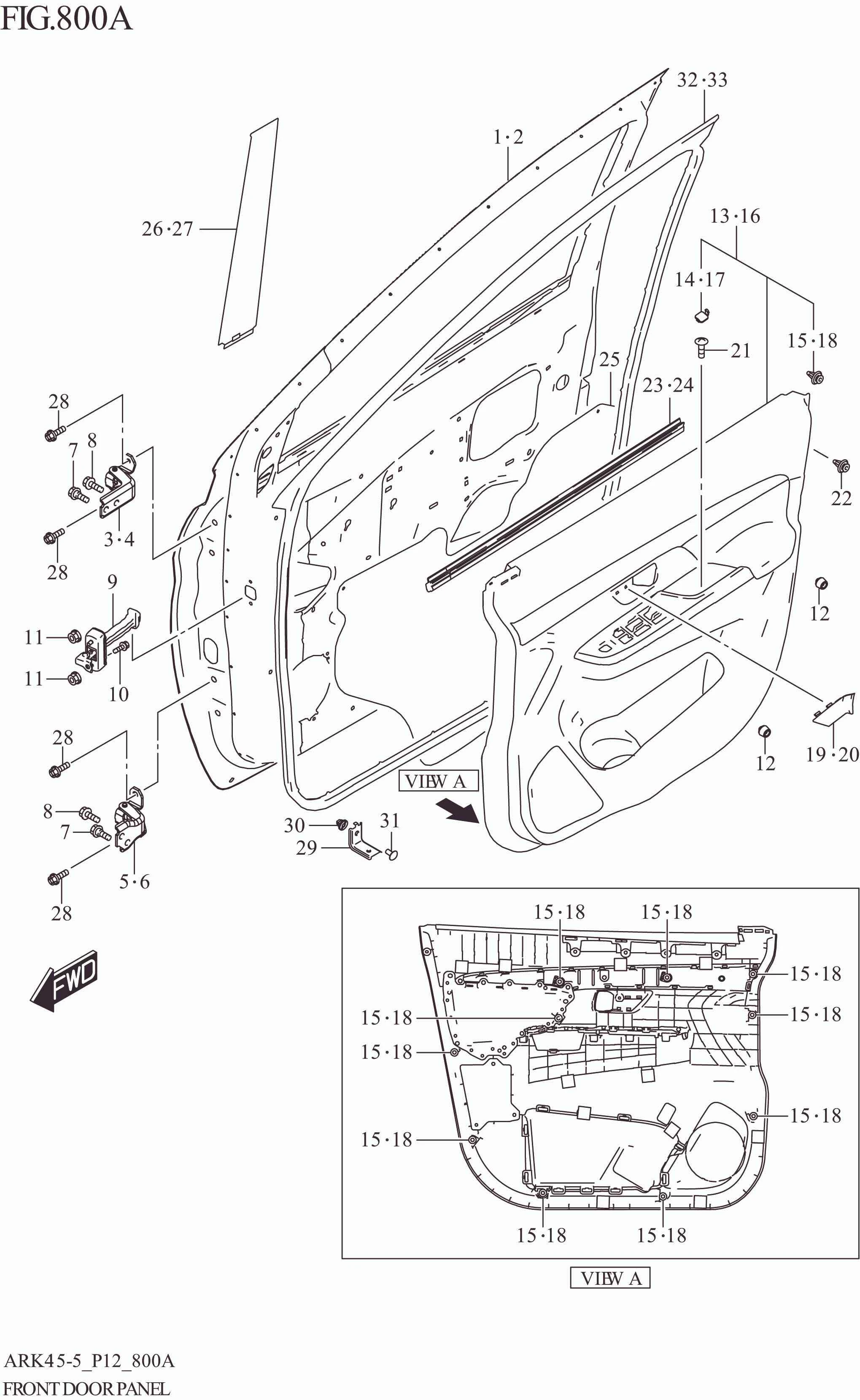

FIG. 800A FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-73R22-000	PANEL ASSY,FRONT DOOR,R	1	Rp2.247.000	XL7
2	68002-73R22-000	PANEL ASSY,FRONT DOOR,L	1	Rp2.247.000	XL7
3	69310M68L00-000	HINGE,FR DR UPR,R	1	Rp82.500
4	69320M68L00-000	HINGE,FR DR UPR,L	1	Rp82.500
5	69330M68L00-000	HINGE,FR DR LWR,R	1	Rp74.000
6	69340M68L00-000	HINGE,FR DR LWR,L	1	Rp74.000
7	09113-08001-000	BOLT (8X20)	4	Rp18.500
8	01551-0820A-000	BOLT	4	Rp17.500
9	81830-63RA1-000	STOP,FRONT DOOR OPEN	2	Rp83.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	08316-1006A-000	NUT (6X12)	4	Rp2.000
12	82711-51K00-000	STOPPER,DR	4	Rp39.000
13	83710-72SA0-EZB	TRIM,FRONT DOOR,R (BLACK,WOOD,SILVER)	1	Rp1.711.000	XL7
14	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
15	09409-10327-000	.CLIP	10	Rp5.000
16	83720-72SA0-EZB	TRIM,FRONT DOOR,L (BLACK,WOOD,SILVER)	1	Rp1.711.000	XL7
17	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
18	09409-10327-000	.CLIP	10	Rp5.000
19	83755-74L00-5PK	CAP,INSIDE HDL BEZEL,R (BLACK)	1	Rp24.000
20	83756-74L00-5PK	CAP,INSIDE HDL BEZEL,L (BLACK)	1	Rp24.000
21	09132-05058-000	SCREW (5X12)	2	Rp14.000
22	09409-06314-5PK	CLIP (5.9X20.5,BLACK)	2	Rp3.500
23	83851-73R00-000	WEATHERSTRIP,FR DR INNER,R	1	Rp57.000
24	83861-73R00-000	WEATHERSTRIP,FR DR INNER,L	1	Rp57.000
25	83911-73R00-000	COVER,FR DR SEALING	2	Rp10.000
26-2	83923-73R00-0CB	TAPE,FR DR OUTER RR,R (BLACK)	1	Rp34.500	GL,GX:BODY COLOR:ZRY,WAP,WAT,WAS,WAY
26-1	83923-73R00-0CB	TAPE,FR DR OUTER RR,R (BLACK)	1	Rp34.500	GL,GX:BODY COLOR:ZQZ,Z2S,ZYZ,ZLL,WAE,WBD,ET5,EC4,EYP
27-1	83924-73R00-0CB	TAPE,FR DR OUTER RR,L (BLACK)	1	Rp34.500	GL,GX:BODY COLOR:ZQZ,Z2S,ZYZ,ZLL,WAE,WBD,ET5,EC4,EYP
27-2	83924-73R00-0CB	TAPE,FR DR OUTER RR,L (BLACK)	1	Rp34.500	GL,GX:BODY COLOR:ZRY,WAP,WAT,WAS,WAY
28	09103-08546-000	BOLT (8X24)	8	Rp26.500
29	83751-67P00-000	BRACKET,DR TRIM	2	Rp11.500
30	71851M70F00-000	NUT (M6)	2	Rp4.000
31	03141M0612A-000	SCREW	2	Rp4.500
32	84641-73R00-000	WEATHERSTRIP,FR DR OPNG,R	1	Rp166.000
33	84651-73R00-000	WEATHERSTRIP,FR DR OPNG,L	1	Rp166.000
