New XL7 Hybrid

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 580C FRONT FENDER PANEL (XL7)FIG. 590B FRONT BODY PANEL (XL7)FIG. 600A FLOOR PANEL (GL)FIG. 600B FLOOR PANEL (GX)FIG. 640A SIDE BODY PANEL FIG. 660B ROOF PANEL (GL,GX)FIG. 717C FRONT BUMPER (XL7)FIG. 718B REAR BUMPER (XL7)FIG. 721A INSTRUMENT PANEL UPPER FIG. 722A INSTRUMENT PANEL LOWER FIG. 730A VENTILATOR (GL)FIG. 730B VENTILATOR (GX)FIG. 732A HEATER UNIT FIG. 735B HEATER BLOWER (GL)FIG. 735C HEATER BLOWER (GX)FIG. 736B HEATER DOOR (GL)FIG. 736C HEATER DOOR (GX)FIG. 737A EVAPORATOR UNIT (GL)FIG. 737B EVAPORATOR UNIT (GX)FIG. 73AB HEATER CONTROL (GL,GX)FIG. 740C CONSOLE BOX (XL7:GL)FIG. 740D CONSOLE BOX (XL7:GX)FIG. 741A FLOOR CARPET FIG. 745A INTERIOR TRIM FIG. 750A COVER/CAP FIG. 755A FUEL LID OPENER FIG. 757A ROOF SIDE PAD FIG. 760A ROOF LINING FIG. 772B MOLDING (XL7)FIG. 774A SPLASH GUARD FIG. 780A EMBLEM FIG. 790A WINDSHIELD FIG. 800A FRONT DOOR PANEL FIG. 801A REAR DOOR PANEL FIG. 805B BACK DOOR PANEL (GL,GX)FIG. 810A FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX)FIG. 821A REAR DOOR LOCK (GL)FIG. 821B REAR DOOR LOCK (GX)FIG. 824A BACK DOOR LOCK FIG. 835C MIRROR/SUNVISOR (GX)FIG. 835D MIRROR/SUNVISOR (GL)FIG. 841A FRONT SEAT BELT FIG. 843A 2ND SEAT BELT FIG. 844A 3RD SEAT BELT FIG. 848D FRONT LH SEAT (XL7:(GL,GX))FIG. 849D FRONT RH SEAT (XL7:GL)FIG. 849E FRONT RH SEAT (XL7:GX)FIG. 854D 2ND RH SEAT (XL7)FIG. 855C 2ND LH SEAT (XL7)FIG. 857B 3RD RH SEAT (XL7)FIG. 858B 3RD LH SEAT (XL7)FIG. 865A FUEL TANK FIG. 893A TOOL FIG. 960A CONDENSER FIG. 968B FRONT A/C PIPING (GL,GX)FIG. 970A REAR A/C PIPING (GL,GX)FIG. 972A COOLING UNIT (GL,GX)FIG. 990A COMPRESSOR (GL)FIG. 990B COMPRESSOR (GX)

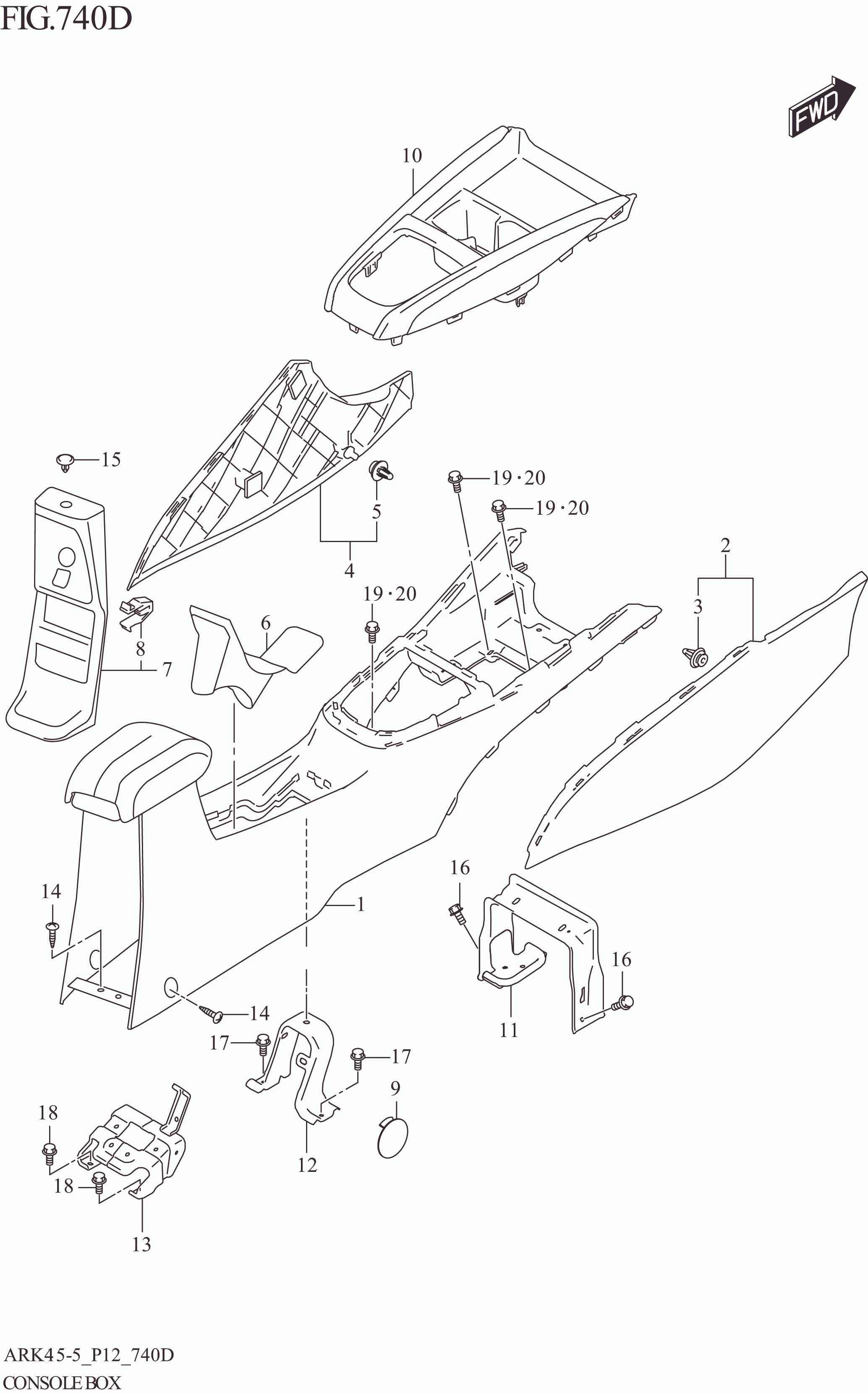

FIG. 740D CONSOLE BOX (XL7:GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75850-73R10-5PK SUB: 75850-73R00-5PK	BOX,FLOOR CONSOLE (BLACK)	1	Rp1.213.500
2	75830-73R00-5PK	COVER,FL CONSOLE FR DRVR (BLACK)	1	Rp75.000
3	09409-10327-000	.CLIP	1	Rp5.000
4	75840-73R00-5PK	COVER,FL CONSOLE FR ASST (BLACK)	1	Rp96.500
5	09409-10327-000	.CLIP	1	Rp5.000
6	75852-72R00-5PK	CAP,FLOOR CONSOLE BOX (BLACK)	1	Rp32.500
7	75853-72R00-5PK	COVER,FLOOR CONSOLE BOX (BLACK)	1	Rp86.500
8	09409-08352-000	.CLIP	8	Rp19.000
9	75854-72R00-5PK	CAP,FLOOR CONSOLE BOX SIDE (BLACK)	2	Rp14.500
10	75860-72SB0-C8J	GARNISH,FLOOR CONSOLE BOX (BLACK/SILVER)	1	Rp360.000
11	75880-73R00-000	BRACKET,FL CONSOLE BOX FR	1	Rp86.500
12	75882-72R00-000	BRACKET,FLOOR CONSOLE BOX CTR	1	Rp40.000
13	75883-72RA0-000	BRACKET,FLOOR CONSOLE BOX RR	1	Rp73.000
14	09125-05141-000	SCREW (5X16)	4	Rp19.000
15	09409-06328-000	CLIP	1	Rp20.500
16	02162-0612A-000	SCREW (6X12)	2	Rp11.000
17	02162-0612A-000	SCREW (6X12)	2	Rp11.000
18	02162-0612A-000	SCREW (6X12)	2	Rp11.000
19	03541-0516A-000	SCREW	4	Rp3.500	5MT
20	03541-0516A-000	SCREW	5	Rp3.500	4AT
