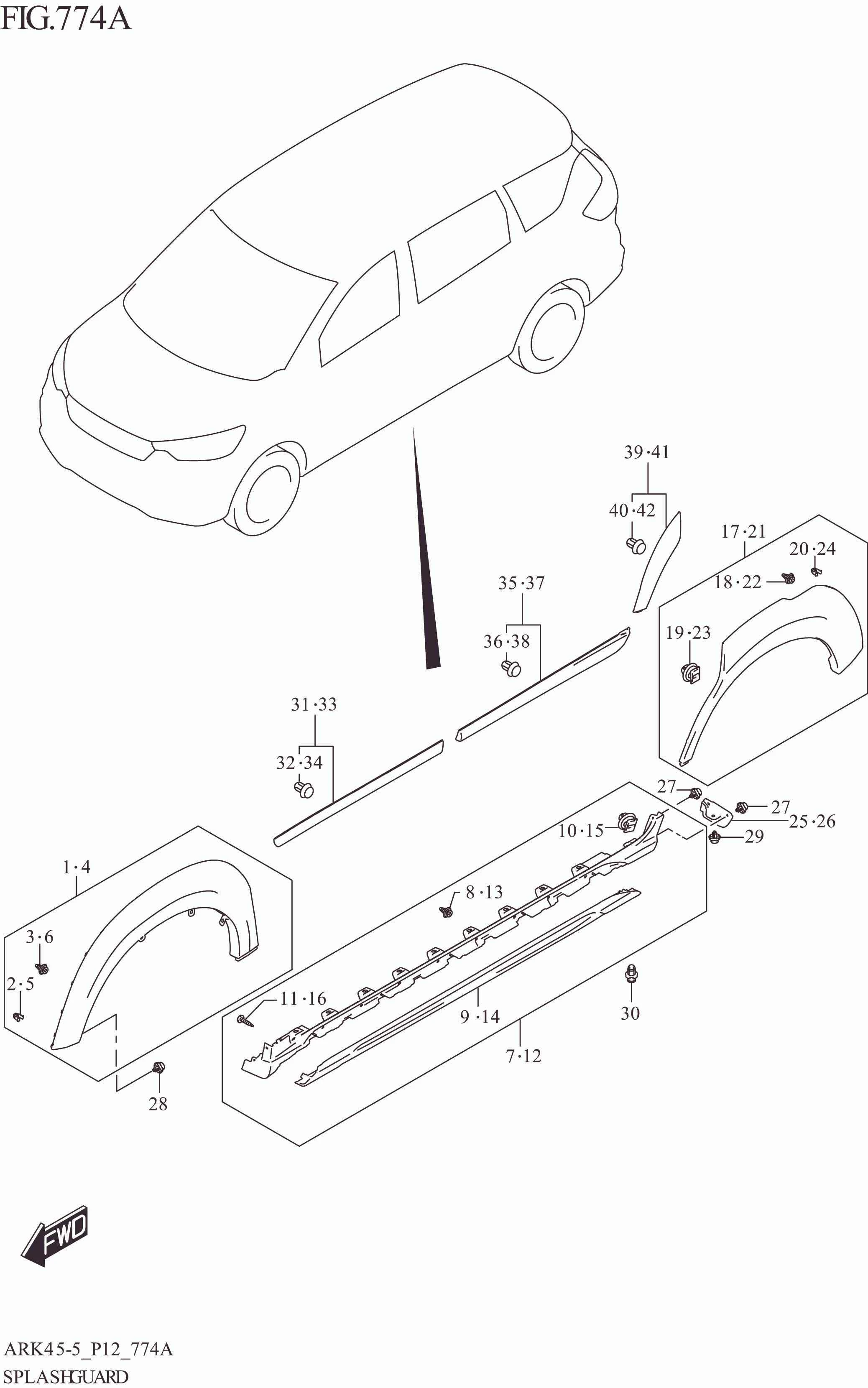

FIG. 774A SPLASH GUARD

No	No. Part	Description	Qty	Price Per Pcs
1	77210-72SA0-5PK	GUARD ASSY,FR FENDER SPLASH,R (BLACK)	1	Rp292.000
2	09409-08349-000	.CLIP	6	Rp4.500
3	09409-10327-000	.CLIP	12	Rp5.000
4	77220-72SA0-5PK	GUARD ASSY,FR FENDER SPLASH,L (BLACK)	1	Rp292.000
5	09409-08349-000	.CLIP	6	Rp4.500
6	09409-10327-000	.CLIP	12	Rp5.000
7	77230-72SA0-L0R	GUARD ASSY,SIDE SILL SPLASH,R (SILVER)	1	Rp2.383.000
8	71812-78F00-000	.CLIP	11	Rp9.000
9	77232-72SA0-Z2S	.GARNISH,SIDE SILL SPLASH,R (SILVER)	1	Rp508.000
10	09409-06342-000	.CLIP	1	Rp19.500
11	03541-0516A-000	.SCREW	7	Rp3.500
12	77240-72SA0-L0R	GUARD ASSY,SIDE SILL SPLASH,L (SILVER)	1	Rp2.383.000
13	71812-78F00-000	.CLIP	11	Rp9.000
14	77242-72SA0-Z2S	.GARNISH,SIDE SILL SPLASH,L (SILVER)	1	Rp507.000
15	09409-06342-000	.CLIP	1	Rp19.500
16	03541-0516A-000	.SCREW	7	Rp3.500
17	77250-72SA0-5PK	GUARD ASSY,RR FENDER SPLASH,R (BLACK)	1	Rp417.000
18	71812-78F00-000	.CLIP	5	Rp9.000
19	77290-72SA0-000	.CLIP	5	Rp21.000
20	09409-08349-000	.CLIP	5	Rp4.500
21	77260-72SA0-5PK	GUARD ASSY,RR FENDER SPLASH,L (BLACK)	1	Rp417.000
22	71812-78F00-000	.CLIP	5	Rp9.000
23	77290-72SA0-000	.CLIP	5	Rp21.000
24	09409-08349-000	.CLIP	5	Rp4.500
25	77271-72S00-000	STRAKE,SIDE SILL REAR,R	1	Rp21.500
26	77571-72S00-000	STRAKE,SIDE SILL REAR,L	1	Rp21.500
27	09409-07340-000	CLIP (6.8X11.5)	6	Rp17.500
28	09409-07340-000	CLIP (6.8X11.5)	12	Rp17.500
29	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
30	09409-15302-000	CLIP	20	Rp15.000
31	77510-73R00-5PK	GUARD ASSY,FR DOOR SPLASH,R (BLACK)	1	Rp298.500
32	09409-08343-000	.CLIP	9	Rp7.000
33	77520-73R00-5PK	GUARD ASSY,FR DOOR SPLASH,L (BLACK)	1	Rp298.500
34	09409-08343-000	.CLIP	9	Rp7.000
35	77530-73R00-5PK	GUARD ASSY,RR DOOR SPLASH FR,R (BLACK)	1	Rp292.000
36	09409-08343-000	.CLIP	9	Rp7.000
37	77540-73R00-5PK	GUARD ASSY,RR DOOR SPLASH FR,L (BLACK)	1	Rp292.000
38	09409-08343-000	.CLIP	9	Rp7.000
39	77550-73R00-5PK	GUARD ASSY,RR DOOR SPLASH RR,R (BLACK)	1	Rp70.000
40	09409-08343-000	.CLIP	6	Rp7.000
41	77560-73R00-5PK	GUARD ASSY,RR DOOR SPLASH RR,L (BLACK)	1	Rp70.000
42	09409-08343-000	.CLIP	6	Rp7.000
