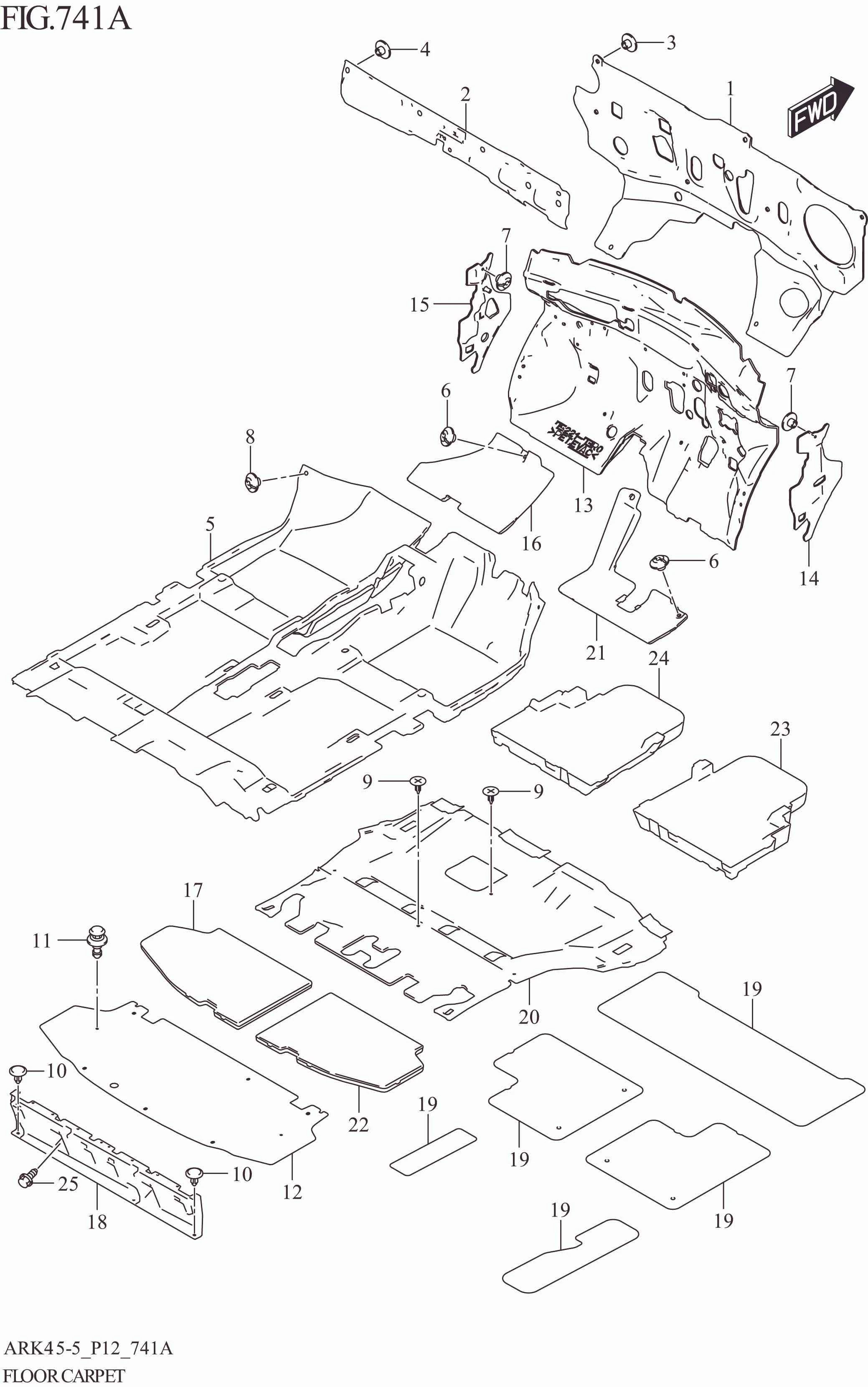

FIG. 741A FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72450-73R00-000	SILENCER,DASH OUTER	1	Rp839.500
2	72490-73R00-000	SILENCER,COWL FRONT	1	Rp407.000	GX
3	09148-05037-000	CLIP (M5)	3	Rp18.000
4	09148-05037-000	CLIP (M5)	7	Rp18.000	GX
5-1	75110-73R01-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp851.000	GL:5MT
5-2	75110-73R11-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp878.500	GL:4AT
5-3	75110-73R20-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp864.500	GX:5MT
5-4	75110-73R30-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp898.500	GX:4AT
6	09148-05037-000	CLIP (M5)	2	Rp18.000
7	09148-05037-000	CLIP (M5)	5	Rp18.000
8	09148-05037-000	CLIP (M5)	2	Rp18.000
9	09409-10302-5PK	CLIP (BLACK)	5	Rp18.500
10-1	09409-07340-R8R	CLIP (BROWN)	2	Rp18.500
10-2	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
11-1	09409-07340-R8R	CLIP (BROWN)	3	Rp18.500
11-2	09409-07340-000	CLIP (6.8X11.5)	3	Rp17.500
12	75130-73R00-R3F	CARPET,LUGGAGE FLOOR (BLACK)	1	Rp743.500
13-1	75221-73R00-000	SILENCER,DASH PANEL INNER	1	Rp1.232.500	5MT
13-2	75221-73R10-000	SILENCER,DASH PANEL INNER	1	Rp1.232.500	4AT
14	75222-73R00-000	SILENCER,DASH SIDE PANEL,R	1	Rp206.500
15	75223-73R00-000	SILENCER,DASH SIDE PANEL,L	1	Rp206.500
16	75412-73R00-000	PAD,DASH LOWER,L	1	Rp76.500
17	75471-73R01-R3F	BOARD,LUGGAGE FLOOR,L (BLACK)	1	Rp338.000
18	75481-73R00-5PK	SUPPORT,LUGGAGE FLOOR BOARD (BLACK)	1	Rp356.500
19	99611-60A01-000	SHEET,SILENCER 800X1000X3 (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
20-1	75121-73R11-PZD	CARPET,REAR FLOOR (BROWN)	1	Rp529.000
20-2	75121-73R11-R3F	CARPET,REAR FLOOR (BLACK)	1	Rp524.000
21	75411-73R00-000	PAD,DASH LOWER,R	1	Rp69.000
22	75461-73R01-R3F	BOARD,LUGGAGE FLOOR,R (BLACK)	1	Rp338.000
23	75531-73R00-000	PAD,MAIN FLOOR UPR RR,R	1	Rp169.500
24-1	75541-73R00-000	PAD,MAIN FLOOR UPR RR,L	1	Rp169.500	GL
24-2	75541-72R10-000	PAD,MAIN FLOOR UPR RR,L	1	Rp254.000	GX
25	09103-06283-000	BOLT (6X16)	6	Rp20.500
