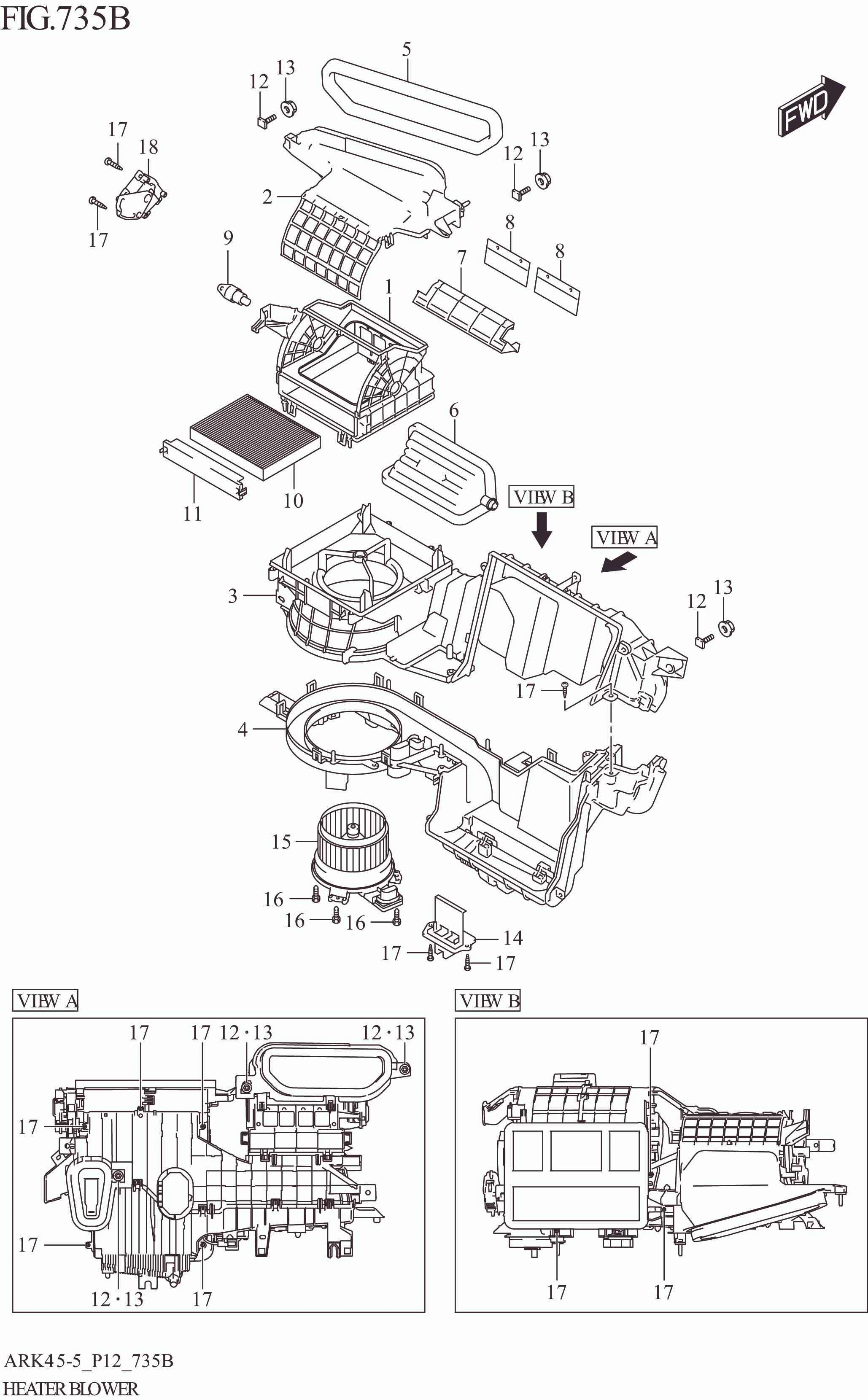

FIG. 735B HEATER BLOWER (GL)

FIG. 735B HEATER BLOWER (GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74113-73RL0-000	CASE,BLOWER	1	Rp134.000
2	74213-73RB0-000	CASE,BLOWER	1	Rp275.500
3	74211-73RB0-000	CASE,BLOWER	1	Rp275.500
4	74212-73RB0-000	CASE,BLOWER	1	Rp275.500
5	74119-73R00-000	PACKING	1	Rp23.500
6	74173-73RL0-000	DOOR S/ASSY	1	Rp91.000
7	74214-73RB0-000	PLATE	1	Rp18.500
8	74215-68P10-000	PACKING	2	Rp23.000
9	74281-73RL0-000	LEVER	1	Rp11.500
10	95850-73R00-000	FILTER,AIR	1	Rp131.500
11	95861-73R00-000	HOLDER,FILTER	1	Rp26.500
12	74115-85D10-000	BOLT	3	Rp15.000
13	74119-78F10-000	BUSH	3	Rp8.000
14	95626-79M00-000	POWER TRANSISTOR ASSY,BLO	1	Rp411.500
15	74150-73RC1-000	MOTOR,BLOWER	1	Rp930.500
16	94135-82000-000	SCREW	3	Rp53.500
17	03112-0416A-000	SCREW	13	Rp23.500
18	95655-73RL0-000	SERVO & ACCESSORY ASSY,R/F	1	Rp268.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
