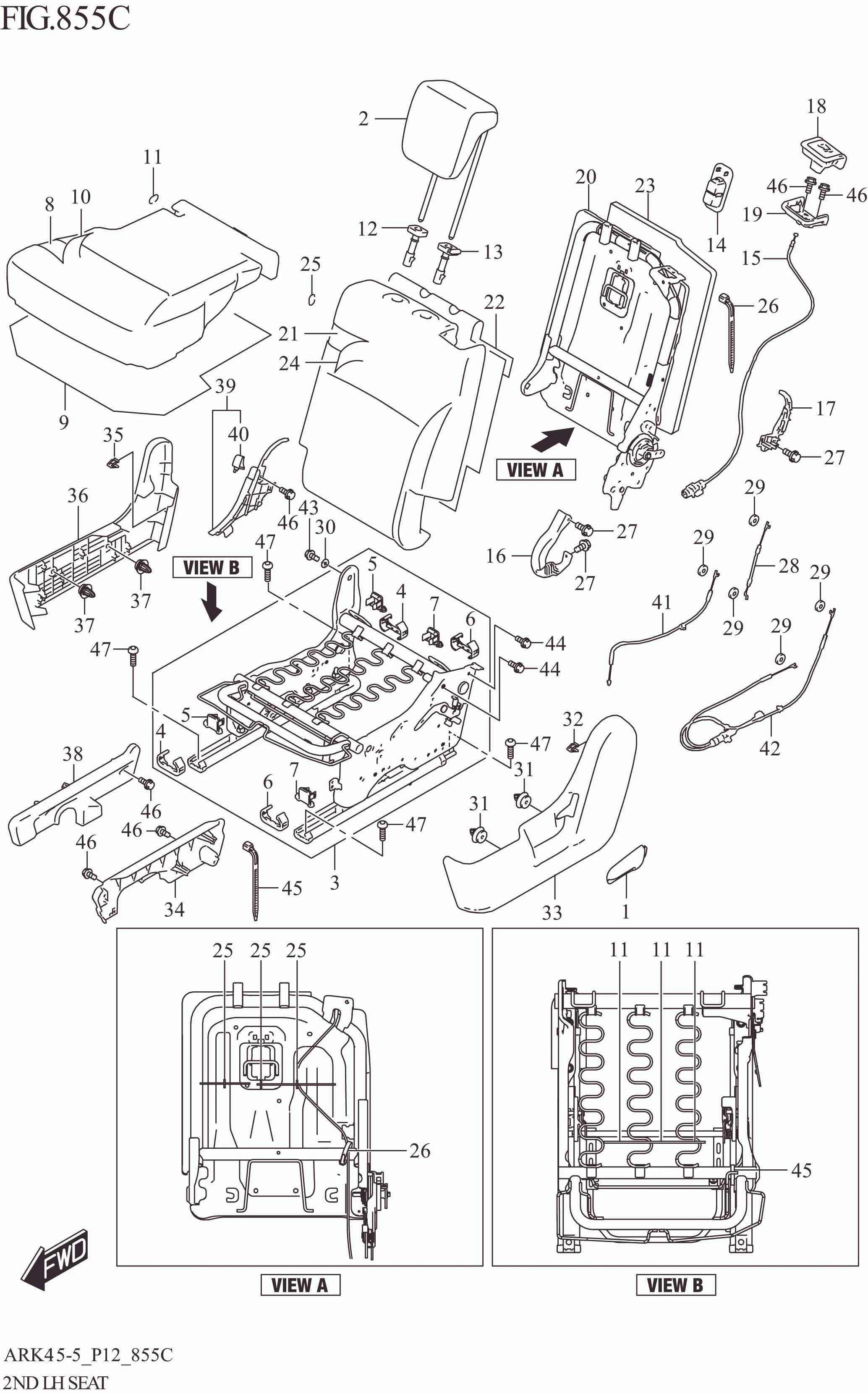

FIG. 855C 2ND LH SEAT (XL7)

No	No. Part	Description	Qty	Price Per Pcs
1	85711-58RA0-5PK	KNOB,RCLNG,L (BLACK)	1	Rp10.500
2	86401-73R10-QRB	HEADRESTRAINT ASSY,RR (BLACK)	1	Rp769.000
3	87603-73R14-000	FRAME ASSY,RR CUSH,L	1	Rp2.001.500
4	86652-73R20-000	.CAP,RR ADJUSTER LOWER	2	Rp27.500
5	86653-73R00-000	.CAP,RR ADJUSTER UPR	2	Rp18.000
6	86652-73R20-000	.CAP,RR ADJUSTER LOWER	2	Rp27.500
7	86653-73R00-000	.CAP,RR ADJUSTER UPR	2	Rp18.000
8	87660-73R10-000	PAD,RR CUSH,L	1	Rp307.000
9	87669-60M00-000	SILENCER,RR CUSH,L	1	Rp42.000
10	87680-73R60-D3C	TRIM,RR CUSH,L	1	Rp747.000
11	09387-19001-000	RING (OD:22.6)	3	Rp9.000
12	85341-58RA1-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp10.000
13	85840-73R10-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.000
14	87225-73R10-5PK	COVER,TETHER ANCHOR (BLACK)	1	Rp12.500
15	87342-73R01-000	CABLE,RR BACK WALKIN	1	Rp165.000
16	87722-73R01-5PK	COVER,RCLNG OUT INR UPR,L (BLACK)	1	Rp11.000
17	87724-73R00-5PK	COVER,RCLNG INR LWR,L (BLACK)	1	Rp18.500
18	87790-73R12-5PK	KNOB,WALKIN RELEASE,L (BLACK)	1	Rp86.000
19	87798-73R00-000	GUIDE,WALKIN LEVER,L	1	Rp19.000
20	87810-73R10-000	FRAME,RR BACK,L	1	Rp1.313.500
21	87860-73R10-000	PAD,RR BACK,L	1	Rp326.000
22	87869-73R00-000	SILENCER,RR BACK,L	1	Rp6.500
23	87872-73R01-000	FELT,RR BACK,L	1	Rp58.000
24	87880-73R60-D3C	TRIM,RR BACK,L	1	Rp545.000
25	09387-19001-000	RING (OD:22.6)	3	Rp9.000
26	36990-25G00-000	CLAMP (L:125)	1	Rp13.000
27	03241-0510A-000	SCREW	3	Rp8.000
28	87341-73R02-000	CABLE,RR RCLNG	1	Rp30.500
29	87371-73R00-000	WASHER,CABLE END	5	Rp5.500
30	87641-73R02-000	BUSH,RR HINGE	1	Rp5.500
31	87226-73R00-000	CLIP	2	Rp5.500
32	87227-73R00-000	CLIP	1	Rp5.500
33	87721-73R00-5PK	COVER,RR RCLNG OUT,L (BLACK)	1	Rp114.000
34	87725-73R00-000	COVER,RR OTR RISER,L	1	Rp23.500
35	87227-73R00-000	CLIP	1	Rp5.500
36	87741-73R00-5PK	COVER,RCLNG INSIDE,L (BLACK)	1	Rp55.500
37	09409-10314-000	CLIP	2	Rp17.000
38	87744-73R00-000	COVER,RR INR RISER,L	1	Rp23.000
39	87770-73R00-5PK	COVER,RCLNG INR LWR,L (BLACK)	1	Rp31.500
40	87729-73R00-5PK	.PROTECTOR,RR RCLNG COV,L (BLACK)	1	Rp111.000
41	87794-73R01-000	CABLE,RR SLIDE RELEASE,L	1	Rp48.000
42	87843-73R01-000	CABLE,RR WALKIN RELEASE,L	1	Rp235.500
43	88296-58R00-000	BOLT, HINGE	1	Rp5.500
44	09103-10472-000	BOLT	2	Rp33.000
45	36990-25G00-000	CLAMP (L:125)	1	Rp13.000
46	03241-0510A-000	SCREW	6	Rp8.000
47	87493-60M00-000	BOLT,RR MTG	4	Rp23.000
