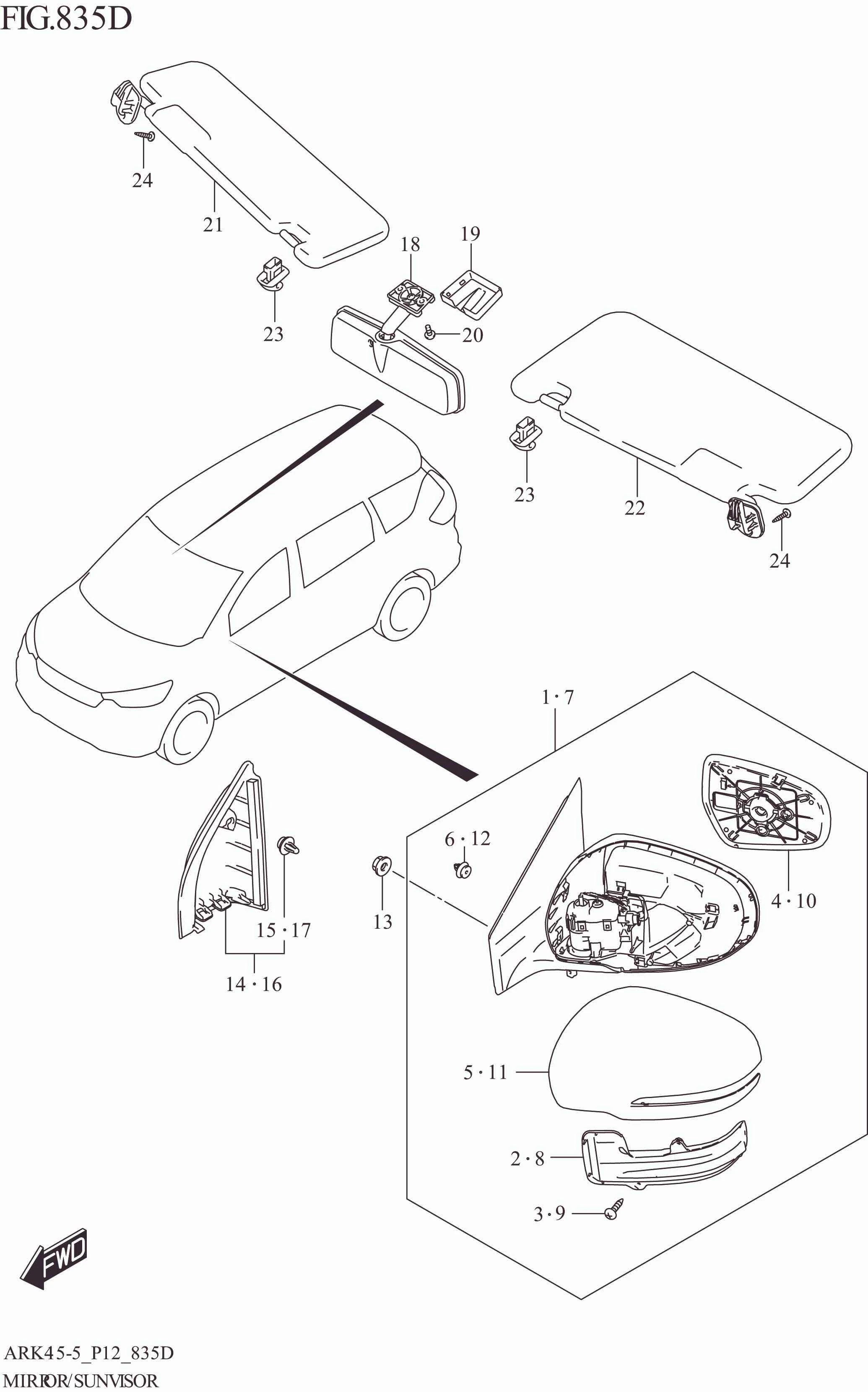

FIG. 835D MIRROR/SUNVISOR (GL)

No	No. Part	Description	Qty	Price Per Pcs
1	84701-73R21-000	MIRROR ASSY,RR VIEW,R (NOT PAINTED)	1	Rp1.078.000
2	36410-73R00-000	.LAMP ASSY,SIDE TURN SIG,R	1	Rp400.500
3	84717-73R00-000	.SCREW,TURN SIGNAL LAMP	2	Rp9.500
4	84730-73R00-000	.GLASS,OUT RR VIEW MIR,R	1	Rp235.000
5	84718-73R20-000	.COVER,MIRROR VISOR,R(NOT PAINTED)	1	Rp480.500
6	09409-08343-000	.CLIP	1	Rp7.000
7	84702-73R21-000	MIRROR ASSY,RR VIEW,L (NOT PAINTED)	1	Rp1.078.000
8	36430-73R00-000	.LAMP ASSY,SIDE TURN SIG,L	1	Rp400.500
9	84717-73R00-000	.SCREW,TURN SIGNAL LAMP	2	Rp9.500
10	84740-73R00-000	.GLASS,OUT RR VIEW MIR,L	1	Rp235.000
11	84728-73R20-000	.COVER,MIRROR VISOR,L(NOT PAINTED)	1	Rp480.500
12	09409-08343-000	.CLIP	1	Rp7.000
13	08316-1006A-000	NUT (6X12)	6	Rp2.000
14	84750-73R00-5PK	GARNISH,SASH BRKT INR,R (BLACK	1	Rp64.000
15	09409-10327-000	.CLIP	1	Rp5.000
16	84790-73R00-5PK	GARNISH,SASH BRKT INR,L (BLACK)	1	Rp64.000
17	09409-10327-000	.CLIP	1	Rp5.000
18	84703-77M00-6GS	MIRROR ASSY,INS RR VIEW (GRAY)	1	Rp95.500
19	84781-77M00-6GS	COVER,INS MIRROR STAY (GRAY)	1	Rp14.000
20	02142-0516A-000	SCREW	2	Rp3.500
21	84801-73R00-6GS	SUNVISOR ASSY,R (GRAY)	1	Rp136.500
22	84802-73R21-6GS	SUNVISOR ASSY,L (GRAY)	1	Rp201.000
23	84851M66R00-6GS	HOLDER,SUNVISOR (GRAY)	2	Rp8.500
24	02122-0516A-000	SCREW	2	Rp11.000
