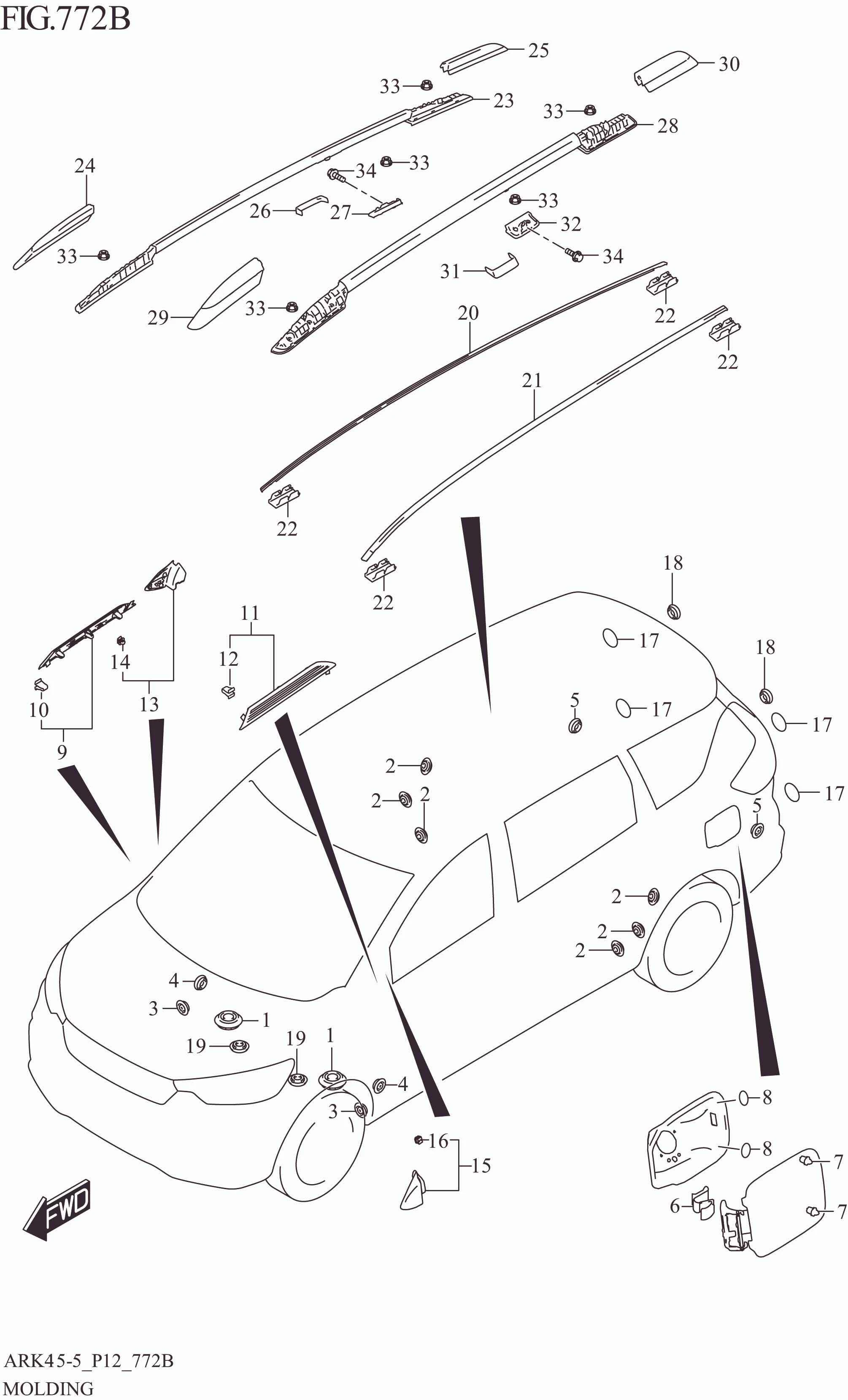

FIG. 772B MOLDING (XL7)

No	No. Part	Description	Qty	Price Per Pcs
1	72397-58J00-000	CAP,DASH LOWER	2	Rp39.000
2	09250-15012-000	CAP (OD:23.5)	6	Rp5.000
3	09250-15012-000	CAP (OD:23.5)	4	Rp5.000
4	09250-15012-000	CAP (OD:23.5)	2	Rp5.000
5	09250-15012-000	CAP (OD:23.5)	2	Rp5.000
6	77121M63J10-000	SPRING,FUEL FILLER DR	1	Rp11.500
7	77116-57L00-000	CUSHION,FUEL FILLER DOOR	2	Rp34.500
8	77117-79M00-000	FILM,FUEL LID CUSHION	2	Rp6.500
9	77160-72SA0-5PK	GARNISH,FR FENDER FRONT,R (BLACK)	1	Rp84.500
10	09409-06324-000	.CLIP	3	Rp13.500
11	77170-72SA0-5PK	GARNISH,FR FENDER FRONT,L (BLACK)	1	Rp84.500
12	09409-06324-000	.CLIP	3	Rp13.500
13	77180-72SA0-5PK	GARNISH,FR PILLAR OUTER,R (BLACK)	1	Rp45.500
14	09409-06342-000	.CLIP	2	Rp19.500
15	77190-72SA0-5PK	GARNISH,FR PILLAR OUTER,L (BLACK)	1	Rp45.500
16	09409-06342-000	.CLIP	2	Rp19.500
17	77191-64L00-000	FILM, REAR DOOR SWITCH	4	Rp30.500
18	09250-10L02-000	CAP (OD:16.2)	2	Rp5.500
19	09250-30002-000	CAP (OD:38.5)	2	Rp5.500
20	78131-73R00-000	MOLDING,ROOF,R	1	Rp239.500
21	78141-73R00-000	MOLDING,ROOF,L	1	Rp239.500
22	78170-68K10-000	CLIP,ROOF MOLDING BODY	4	Rp8.500
23	78210M72S00-Z2R	RAIL,ROOF,R (SILVER)	1	Rp1.525.000
24	78216M72S00-5PK	CAP,ROOF RAIL FR,R (BLACK)	1	Rp214.000
25	78217M72S00-5PK	CAP,ROOF RAIL FR,R (BLACK)	1	Rp219.500
26	78218M72S00-5PK	CAP,ROOF RAIL CTR,R (BLACK)	1	Rp27.000
27	78219M72S00-5PK	BASE,ROOF RAIL CTR,R (BLACK)	1	Rp112.500
28	78220M72S00-Z2R	RAIL,ROOF,L (SILVER)	1	Rp1.560.500
29	78226M72S00-5PK	CAP,ROOF RAIL FR,L (BLACK)	1	Rp214.000
30	78227M72S00-5PK	CAP,ROOF RAIL RR,L (BLACK)	1	Rp219.500
31	78228M72S00-5PK	CAP,ROOF RAIL CTR,L (BLACK)	1	Rp27.000
32	78229M72S00-5PK	BASE,ROOF RAIL CTR,L (BLACK)	1	Rp115.000
33	09159-06120-000	NUT	16	Rp25.000
34	09103-06283-000	BOLT (6X16)	2	Rp20.500
