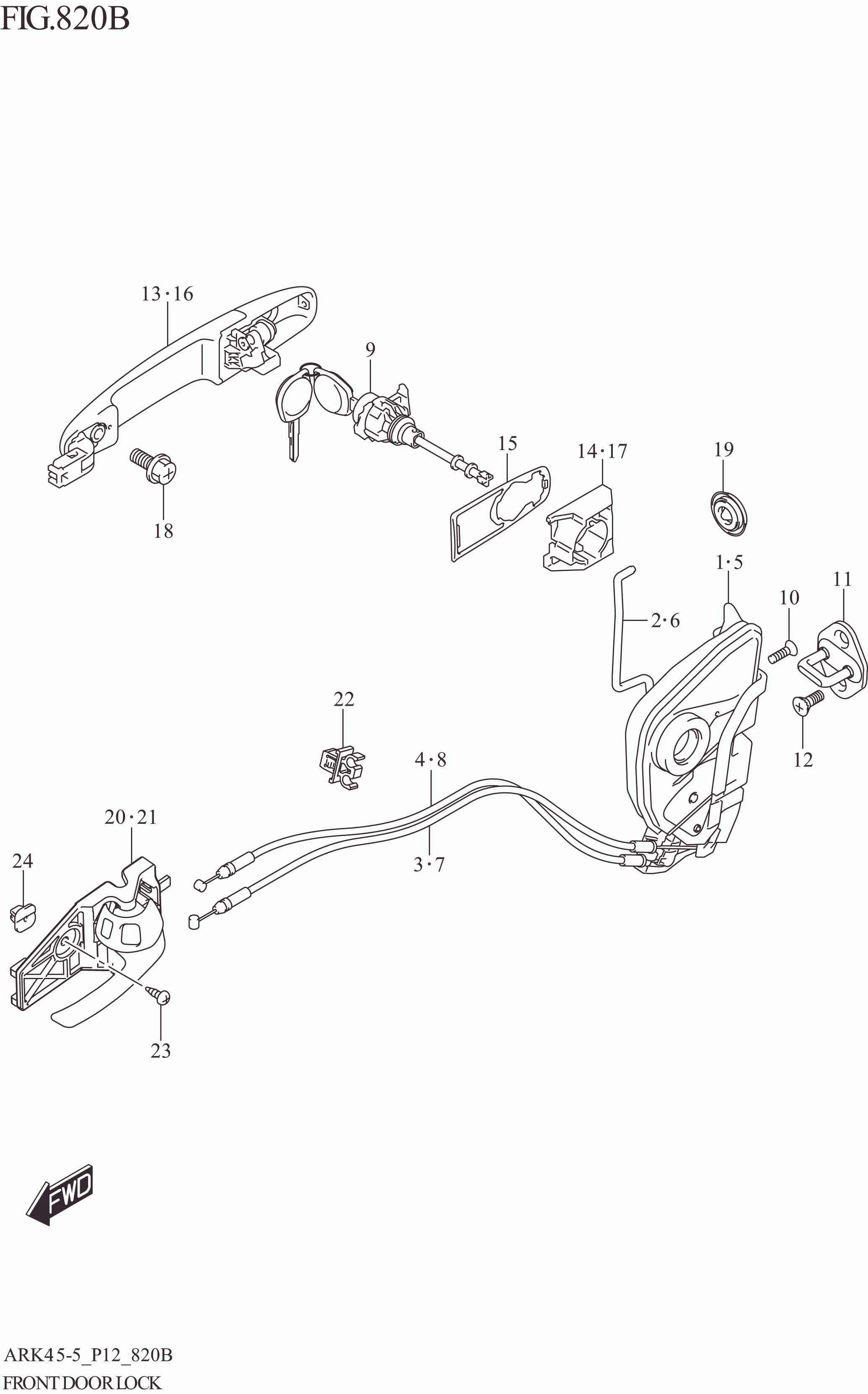

FIG. 820B FRONT DOOR LOCK (GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82210-55T10-000	LATCH,FRONT DOOR,R	1	Rp340.500
2	82221-73R00-000	ROD,FRONT DOOR OUT HANDLE,R	1	Rp14.500
3	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
4	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
5	82250-55T30-000	LATCH,FRONT DOOR,L	1	Rp345.500
6	82261-73R00-000	ROD,FRONT DOOR OUT HANDLE,L	1	Rp17.000
7	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
8	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
9	82270-73860-000	CYLINDER SET,FR DR LATCH,R	1	Rp337.500
10	09137-06032-000	SCREW (6X18)	6	Rp16.500
11	82610-67LA0-000	STRIKER,DOOR LATCH	2	Rp21.500
12	09139-08025-000	SCREW (8X20)	4	Rp23.000
13-1	82811-73R21-000 SUB: 82811-73R20-000	HANDLE,FRONT DOOR OUT,R(NOT PAINT)	1	Rp128.000	UP TO 202204
13-2	82811-73R21-000	HANDLE,FRONT DOOR OUT,R(NOT PAINT)	1	Rp128.000	FROM 202205
14-1	82812-73R01-000	BRACKET,FR DR OUT HANDLE,R	1	Rp12.500	UP TO 202204
14-2	82812-73R01-000	BRACKET,FR DR OUT HANDLE,R	1	Rp12.500	FROM 202205
15	82813-73R00-000	PAD,FRONT DOOR OUT HANDLE	1	Rp6.500
16-1	82821-73R31-000 SUB: 82821-73R30-000	HANDLE,FRONT DOOR OUT,L(NOT PAINT)	1	Rp140.000	UP TO 202204
16-2	82821-73R31-000	HANDLE,FRONT DOOR OUT,L(NOT PAINT)	1	Rp140.000	FROM 202205
17-1	82822-73R01-000	BRACKET,FR DR OUT HANDLE,L	1	Rp12.500	UP TO 202204
17-2	82822-73R01-000	BRACKET,FR DR OUT HANDLE,L	1	Rp12.500	FROM 202205
18	09116-06168-000	BOLT (6X12)	4	Rp15.000
19	09250-25007-000	CAP (OD:25)	2	Rp10.500
20	83110M74L10-C48	HANDLE,SIDE DR INS,R (CHROME/BLACK)	1	Rp111.000	XL7
21	83130M74L10-C48	HANDLE,SIDE DR INS,L (CHROME/BLACK)	1	Rp111.000	XL7
22	83271M50E00-000	CLIP,DR HANDLE ROD	2	Rp6.500
23	09132-05058-000	SCREW (5X12)	2	Rp14.000
24	09148-05031-000	NUT (M5)	2	Rp18.000
