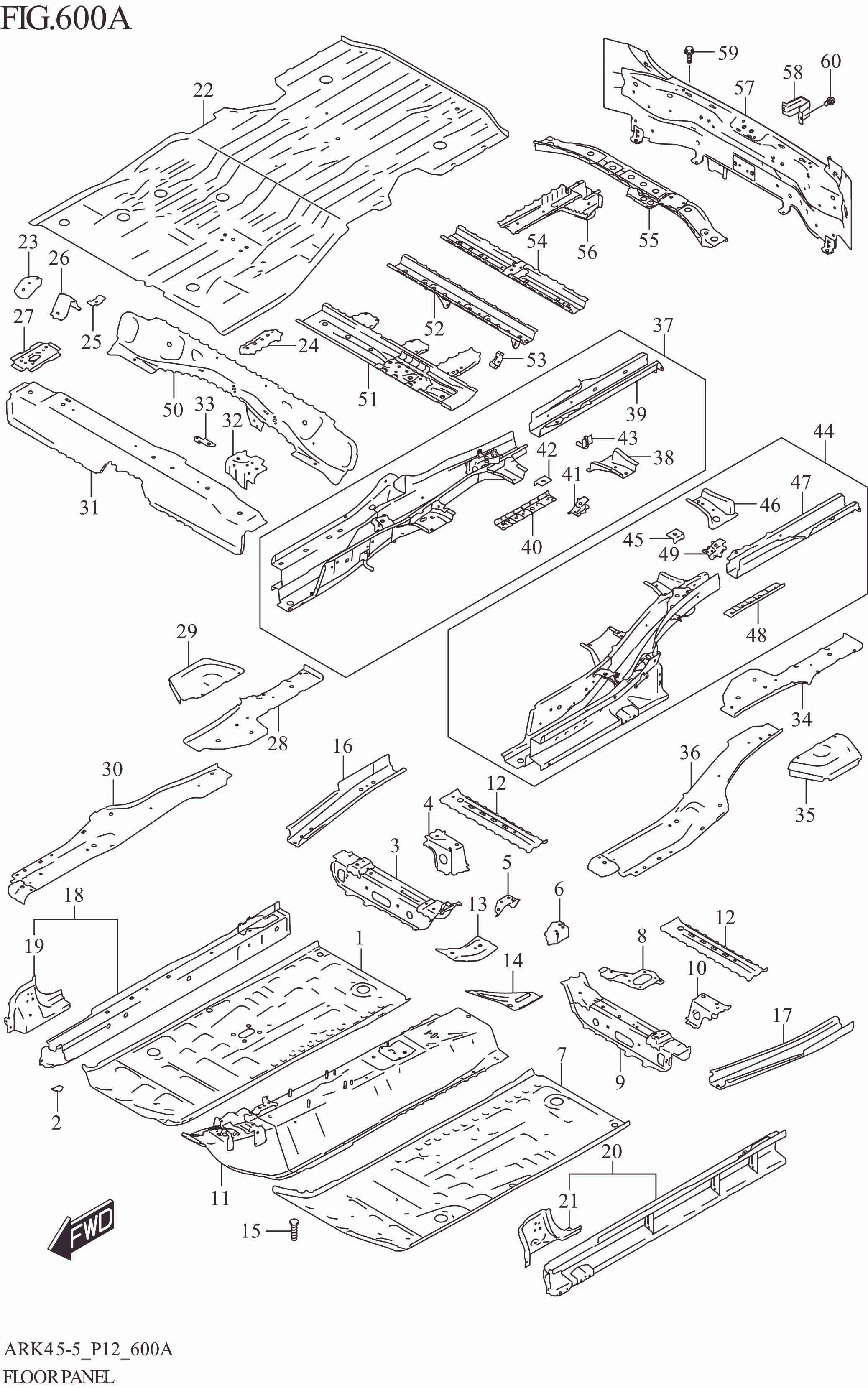

FIG. 600A FLOOR PANEL (GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61111-73R00-000	PAN,MAIN FLOOR,R	1	Rp642.000
2	61112M68P00-000	BRACKET,DASH LWR PAD	1	Rp18.000
3	61120-73R00-000	CROSSMEMBER,FLR PAN UPR,R	1	Rp315.000
4	61130-73R00-000	BRACKET,FR SEAT RR OUT,R	1	Rp170.500
5	61141-73R00-000	BRACKET,FR SEAT RR INSIDE,R	1	Rp114.500
6	61143-73R00-000	BRACKET,FR SEAT RR INSIDE,L	1	Rp114.500
7	61161-73R60-000	PAN,MAIN FLOOR,L	1	Rp647.000
8	61163-73R00-000	REINF,MAIN FLOOR CTR	1	Rp40.000
9	61170-73R00-000	CROSSMEMBER,FLR PAN UPR,L	1	Rp315.000
10	61180-73R00-000	BRACKET,FR SEAT RR OUT,L	1	Rp170.500
11	61210-73R01-000	TUNNEL,MAIN FLOOR	1	Rp2.173.000
12	61232M68P00-000	CROSSMEMBER,FL PAN UPR RR	2	Rp143.000
13	61234-72R00-000	REINF,MAIN FLOOR,R	1	Rp74.500
14	61235M68P00-000	REINF,MAIN FLOOR INSIDE,R	1	Rp84.000
15	09119-05018-000	BOLT (5X14.3)	4	Rp13.000
16	61241-55R00-000	MEMBER,FLOOR SIDE RR,R	1	Rp158.000
17	61261-55R00-000	MEMBER,FLOOR SIDE RR,L	1	Rp158.000
18	61310-73R00-000	PANEL,SIDE SILL INNER,R	1	Rp715.000
19	61316-73R00-000	.PANEL,DASH SIDE LOWER,R	1	Rp104.000
20	61320-73R00-000	PANEL,SIDE SILL INNER,L	1	Rp715.000
21	61326-73R00-000	.PANEL,DASH SIDE LOWER,L	1	Rp105.000
22	61512-73R00-000	PANEL,RR FLOOR	1	Rp1.438.500
23	61515-73R00-000	BRACKET,3RD SEAT FR	4	Rp20.000
24	61516-73R00-000	BRACKET,3RD SEAT RR INSIDE	2	Rp33.000
25	61517-73R00-000	BRACKET,FUEL HOSE CLAMP	1	Rp12.500
26	61518-73R00-000	BRACKET,LUGGAGE BOARD	2	Rp24.000
27	61519-72R00-000	BRACKET,FIRE EXTINGUISHER	1	Rp17.500
28	61522-73R20-000	PANEL,RR FLOOR SIDE RR,R	1	Rp315.000
29	61523-73R30-000	EXTENSION,RR FLOOR RR SIDE,R	1	Rp252.000
30	61540-73R00-000	PANEL,RR FLOOR SIDE FR,R	1	Rp569.000
31	61511-73R00-000	PANEL,RR FLOOR FR	1	Rp577.000
32	61531-73R00-000	REINF,RR SEAT RAIL FR CTR	1	Rp135.500
33	61532-73R00-000	PATCH,RR SEAT RAIL FR CTR	1	Rp35.500
34	61572-73R00-000	PANEL,RR FLOOR SIDE RR,L	1	Rp305.000
35	61573-73R30-000	EXTENSION,RR FLOOR RR SIDE,L	1	Rp247.000
36	61590-73R00-000	PANEL,RR FLOOR SIDE FR,L	1	Rp551.500
37-1	62100-73R21-000 SUB: 62100-73R20-000	MEMBER,RR FLOOR SIDE,R	1	Rp2.369.500	UP TO 202204
37-2	62100-73R21-000	MEMBER,RR FLOOR SIDE,R	1	Rp2.369.500	FROM 202205
38	62118-73R00-000	.EXTENSION,RR FLR 4TH X MBR,R	1	Rp53.000
39	62121-73R00-000	.EXTENSION,RR FLR SIDE MBR RR,R	1	Rp260.500
40	62122-73R00-000	.REINF,RR FLR SIDE MBR,R	1	Rp24.000
41	62123-73R00-000	.REINF,3RD SEAT HINGE,R	1	Rp20.500
42	62124-73R00-000	.REINF,3RD SEAT HINGE FR	1	Rp13.000
43	62140-73R00-000	.ROD,MUFFLER HANGER	1	Rp47.500
44-1	62300-73R21-000 SUB: 62300-73R20-000	MEMBER,RR FLOOR SIDE,L	1	Rp2.369.500	UP TO 202204
44-2	62300-73R21-000	MEMBER,RR FLOOR SIDE,L	1	Rp2.369.500	FROM 202205
45	62124-73R00-000	.REINF,3RD SEAT HINGE FR	1	Rp13.000
46	62318-73R00-000	.EXTENSION,RR FLR 4TH X MBR,L	1	Rp51.500
47	62321-73R00-000	.EXTENSION,RR FLR SIDE MBR RR,L	1	Rp260.500
48	62322-73R00-000	.REINF,RR FLR SIDE MBR,L	1	Rp24.000
49	62323-73R00-000	.REINF,3RD SEAT HINGE,L	1	Rp16.500
50	62610-73R00-000	CROSSMEMBER,RR FLOOR FR	1	Rp315.000
51	62620-73R00-000	CROSSMEMBER,RR FLOOR 2ND	1	Rp530.000
52	62650-73R10-000	CROSSMEMBER,RR FLOOR 3RD	1	Rp145.000
53	62654-73R00-000	BRACKET,CANISTER HOSE CLAMP	1	Rp34.500
54	62660-73R00-000	CROSSMEMBER,RR FLOOR 4TH	1	Rp122.000
55	62670-73R00-000	CROSSMEMBER,RR FLOOR 5TH	1	Rp253.500
56	62680-73R00-000	HOOK,TOWING RR	1	Rp211.500
57	65500-73R00-000	PANEL,BACK	1	Rp1.230.500
58	65541-73R00-000	ABSORBER,RR BUMPER	3	Rp21.000
59	01550-0612A-000	BOLT (6X12)	4	Rp3.500
60	01550-0612A-000	BOLT (6X12)	6	Rp3.500
