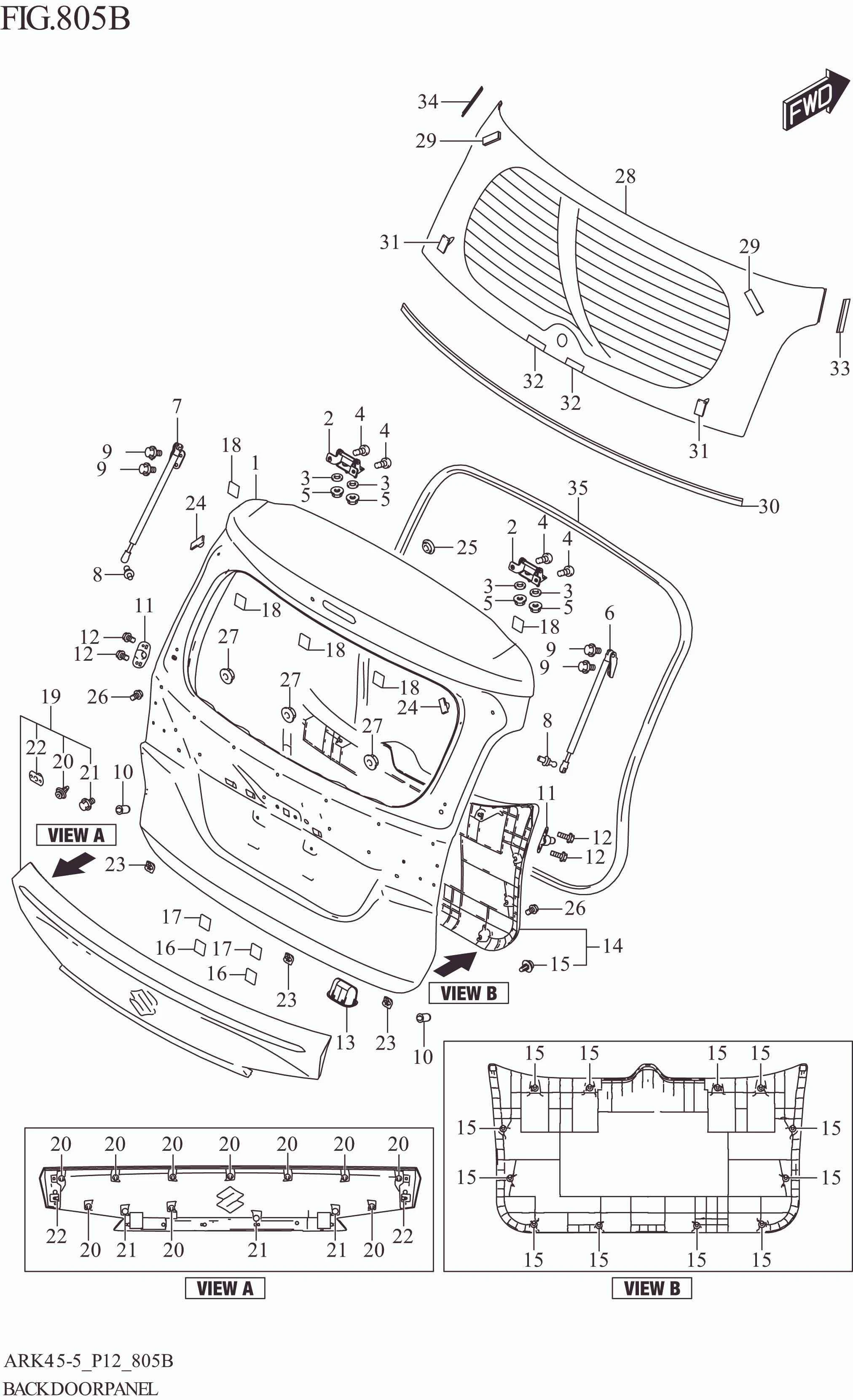

FIG. 805B BACK DOOR PANEL (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	69100-73R11-000	PANEL ASSY,BACK DOOR	1	Rp2.269.500	GL,GX
2	69510-73R00-000	HINGE,BACK DR	2	Rp49.500	GL,GX
3	69571M76G00-000	.PACKING,BACK DR HNG	4	Rp6.500	GL,GX
4	09111-06086-000	BOLT (6X12)	4	Rp16.000	GL,GX
5	08361-2508A-000	NUT	4	Rp16.500	GL,GX
6-1	81850M73R01-000	BALANCER,BK DR,R	1	Rp282.000	GL,GX,UP TO 202211
6-2	81850M73R01-000	BALANCER,BK DR,R	1	Rp282.000	GL,GX,FROM 202212
7-1	81860M73R01-000	BALANCER,BK DR,L	1	Rp282.000	GL,GX,UP TO 202211
7-2	81860M73R01-000	BALANCER,BK DR,L	1	Rp282.000	GL,GX,FROM 202212
8	81871M68P01-000	BALLSTUD,BACK DR BALANCER	2	Rp31.000	GL,GX
9	09113M08009-000	BOLT (8X12)	4	Rp5.500	GL,GX
10	82683-73R00-000	CUSHION,BACK DOOR LOWER	2	Rp19.500	GL,GX
11	82760-73R00-000	CUSHION,BACK DOOR SIDE	2	Rp25.000	GL,GX
12	02162-0616B-000	SCREW (6X16)	4	Rp15.500	GL,GX
13	82841-82G02-000	HANDLE,BACK DR INNER	1	Rp7.000	GL,GX
14	83770-73R00-5PK	TRIM,BACK DOOR (BLACK)	1	Rp513.000	GL,GX
15	09409-10327-000	.CLIP	12	Rp5.000	GL,GX
16	44281-29C00-000	CUSHION	2	Rp6.000	GL,GX
17	77151-82000-000	FILM	2	Rp7.000	GL,GX
18	77151-82000-000	FILM	5	Rp7.000	GX
19	839B0-86T11-ATR	GARNISH,BACK DR LIC (BLACK,CHROME)	1	Rp788.500	XL7:BODY COLOR:ZBD,ZRY,WAP,WAT,WAS,WAY
20	71812-78F00-000	.CLIP	10	Rp9.000	GL,GX
21	83947-73R00-000	.BOLT,BACK DR GARNISH	3	Rp27.500	GL,GX
22	09146M06003-000	.NUT	2	Rp7.500	GL,GX
23	83994-73R00-000	CAP,BACK DR DRAIN HOLE	3	Rp5.500	GL,GX
24	84515-65D00-000	FEMALE,GLASS FASTENER NO.2	2	Rp45.500	GL,GX
25	09250M20031-000	CAP (OD:25.8)	1	Rp4.500	GL,GX
26	02162-0616B-000	SCREW (6X16)	2	Rp15.500	GL,GX
27	08316-1006A-000	NUT (6X12)	3	Rp2.000	GL,GX
28-1	84571-73R10-000	GLASS,BACK DOOR WINDOW	1	Rp430.000	GL:XL7
28-2	84571-73R20-000	GLASS,BACK DOOR WINDOW	1	Rp680.000	GX:XL7
29	84513-76F00-000	.MALE,GLASS FASTENER NO.2	2	Rp38.500	GL,GX
30	84573-73R00-000	.PAD,BACK DOOR GLASS	1	Rp39.500	(GL,GX):XL7,FROM 202211
31	84575-73R00-000	.CLIP,GLASS FASTENER	2	Rp19.000	GL,GX
32	84617-73R10-000	.SPACER,BACK DOOR GLASS	2	Rp54.000	(GL,GX):XL7
33	84623-73R00-000	.MOLDING,BACK DR WINDOW,R	1	Rp19.000	GL,GX
34	84625-73R00-000	.MOLDING,BACK DR WINDOW,L	1	Rp19.000	GL,GX
35	84681-73R00-000	WEATHERSTRIP,BACK DR OPNG	1	Rp259.500	GL,GX
