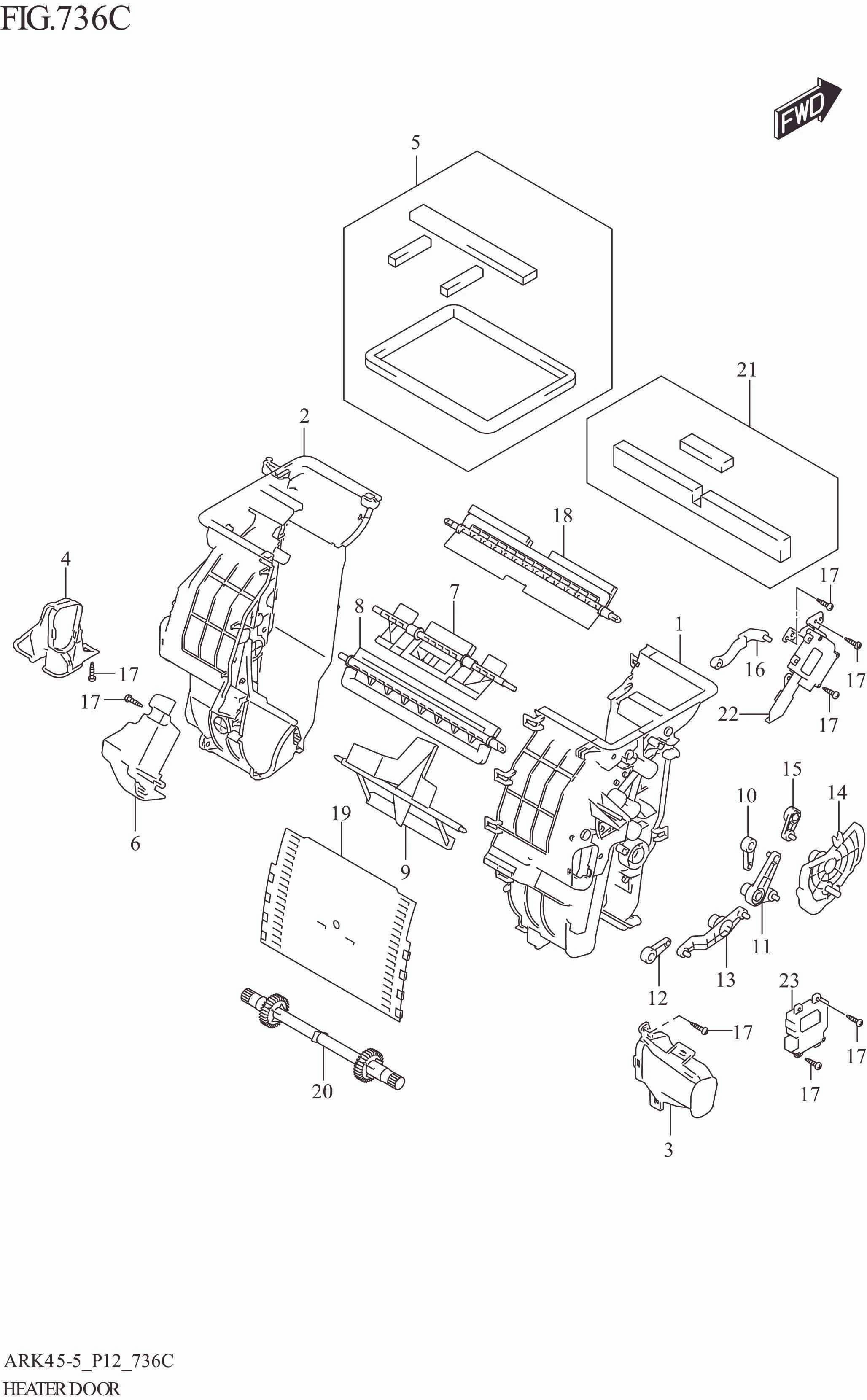

FIG. 736C HEATER DOOR (GX)

No	No. Part	Description	Qty	Price Per Pcs
1	74111-73RE0-000	CASE,HEATER	1	Rp310.000
2	74112-73RB0-000	CASE,HEATER	1	Rp275.500
3	74114-73RB0-000	DUCT S/ASSY,AIR	1	Rp88.500
4	74115-73RB0-000	DUCT S/ASSY,AIR	1	Rp97.500
5	74116-73R00-000	PACKING	1	Rp37.500
6	74131-73RB0-000	COVER,HEATER	1	Rp27.000
7	74178-73RE0-000	DOOR S/ASSY	1	Rp120.500
8	74174-73R00-000	DOOR S/ASSY	1	Rp110.000
9	74216-73R00-000	DUCT,AIR	1	Rp37.500
10	74191-73R00-000	LEVER	1	Rp14.500
11	74192-73RB0-000	LEVER	1	Rp20.500
12	74194-73R00-000	LEVER	1	Rp10.000
13	74195-73RB0-000	LEVER	1	Rp20.500
14	74222-73RL0-000	PLATE	1	Rp61.000
15	74193-73R00-000	LEVER	1	Rp22.500
16	74196-73RL0-000	ROD	1	Rp66.500
17	03112-0416A-000	SCREW	8	Rp23.500
18	74176-73R00-000	DOOR S/ASSY	1	Rp106.500
19	74178-73R00-000	DOOR	1	Rp92.000
20	74197-73R00-000	SHAFT	1	Rp264.500
21	74163-73R00-000	PACKING	1	Rp28.500
22	95653-73RL0-000	SERVO & ACCESSORY ASSY,MODE	1	Rp263.000
23	95654-73RE0-000	SERVO & ACCESSORY ASSY,A/M	1	Rp268.500
