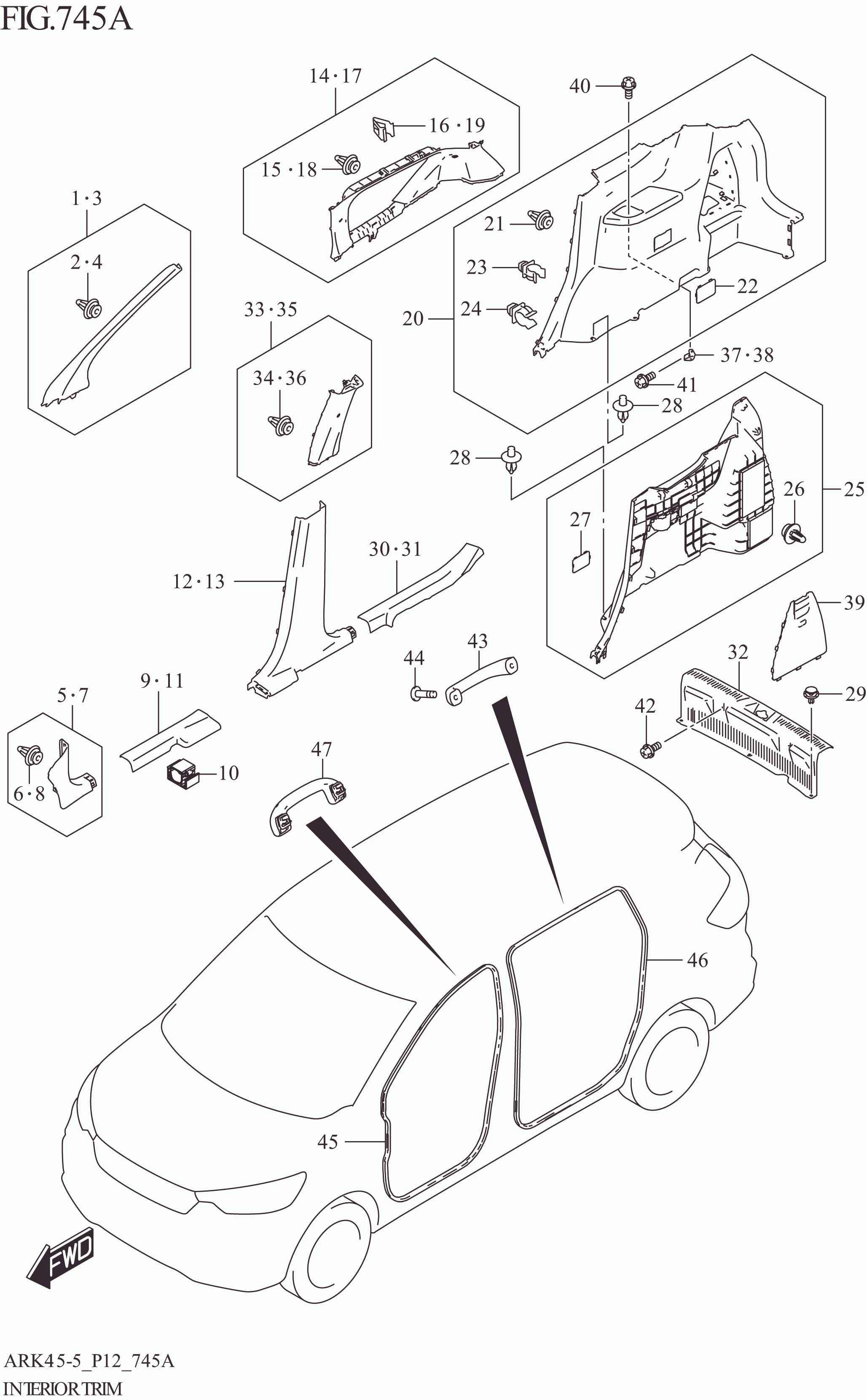

FIG. 745A INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	76110-73R00-6GS	TRIM,FRONT PILLAR,R (GRAY)	1	Rp159.500
2	09409-10314-000	.CLIP	3	Rp17.000
3	76120-73R00-6GS	TRIM,FRONT PILLAR,L (GRAY)	1	Rp159.500
4	09409-10314-000	.CLIP	3	Rp17.000
5	76130-73R00-5PK	TRIM,DASH SIDE,R (BLACK)	1	Rp128.000
6	76142-76G00-000	.CLIP,INR	1	Rp9.500
7	76140-73R00-5PK	TRIM,DASH SIDE,L (BLACK)	1	Rp128.000
8	76142-76G00-000	.CLIP,INR	1	Rp9.500
9	76151-73R00-5PK	SCUFF,SIDE SILL FRONT,R (BLACK)	1	Rp74.500
10	76158-71L00-000	CLAMP,SIDE SILL SCUFF	12	Rp34.500
11	76161-73R00-5PK	SCUFF,SIDE SILL FRONT,L (BLACK)	1	Rp74.500
12	76231-73R00-5PK	TRIM,CTR PILLAR LOWER,R (BLACK)	1	Rp174.000
13	76241-73R00-5PK	TRIM,CTR PILLAR LOWER,L (BLACK)	1	Rp174.000
14	76250-73R00-6GS	TRIM,QUARTER UPPER,R (GRAY)	1	Rp343.000
15	09409-10327-000	.CLIP	5	Rp5.000
16	09409-07335-000	.CLIP	2	Rp17.500
17	76260-73R00-6GS	TRIM,QUARTER UPPER,L (GRAY)	1	Rp343.000
18	09409-10327-000	.CLIP	5	Rp5.000
19	09409-07335-000	.CLIP	2	Rp17.500
20	76270-73R00-5PK	TRIM,QUARTER LOWER,R (BLACK)	1	Rp1.076.500
21	09409-10327-000	.CLIP	6	Rp5.000
22	76273-73R00-5PK	.CAP,QUARTER LOWER TRIM,R (BLACK)	1	Rp23.500
23	09403-08326-000	.CLAMP (D:8)	2	Rp19.500
24	09403-13317-000	.CLAMP	2	Rp9.000
25-1	76280-73R00-5PK	TRIM,QUARTER LOWER,L (BLACK)	1	Rp1.076.500	XL7:GL
25-2	76280-73RA0-5PK	TRIM,QUARTER LOWER,L (BLACK)	1	Rp610.000	XL7:GX
26	09409-10327-000	.CLIP	6	Rp5.000
27	76283-73R00-5PK	.CAP,QUARTER LOWER TRIM,L (BLACK)	1	Rp24.000
28	09409-07330-5PK	CLIP (BLACK)	4	Rp12.500
29	09409-07340-000	CLIP (6.8X11.5)	3	Rp17.500
30	76171-73R00-5PK	SCUFF,SIDE SILL REAR,R (BLACK)	1	Rp86.500
31	76181-73R00-5PK	SCUFF,SIDE SILL REAR,L (BLACK)	1	Rp86.500
32	76190-73R10-5PK	TRIM,TAIL END (BLACK)	1	Rp129.000
33	76210-73R00-6GS	TRIM,CTR PILLAR UPPER,R (GRAY)	1	Rp125.000
34	76142-76G00-000	.CLIP,INR	1	Rp9.500
35	76220-73R00-6GS	TRIM,CTR PILLAR UPPER,L (GRAY)	1	Rp125.000
36	76142-76G00-000	.CLIP,INR	1	Rp9.500
37	76279-73R00-000	BRACKET,QTR LWR TRIM ARMREST,R	1	Rp14.000
38	76289-73R00-000	BRACKET,QTR LWR TRIM ARMREST,L	1	Rp14.000
39	76310-73R00-5PK	LID,JACK (BLACK)	1	Rp64.000
40	02142-0612A-000	SCREW	2	Rp4.000
41	02162-0612A-000	SCREW (6X12)	2	Rp11.000
42	02162-0612A-000	SCREW (6X12)	2	Rp11.000
43	76411M79F00-6GS	GRIP,ASST (GRAY)	2	Rp27.000
44	09139-06104-000	SCREW (6X26)	4	Rp22.500
45	76291-73R00-000	TRIM,FR DR OPENING	2	Rp186.000
46	76295-73R00-000	TRIM,RR DR OPENING	2	Rp200.500
47	76410M79M20-6GS	GRIP,ASSISTANT (GRAY)	3	Rp82.500
