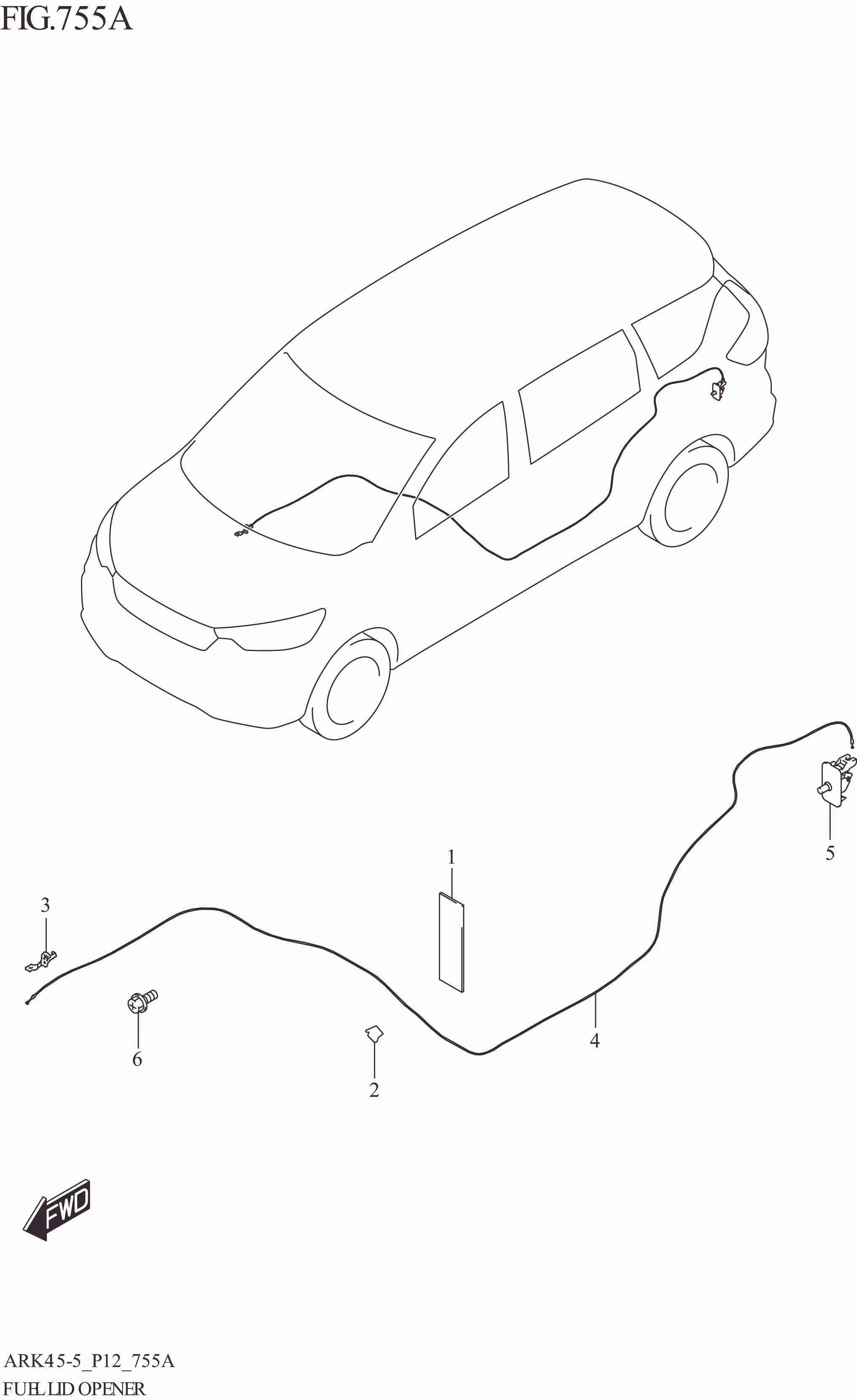

FIG. 755A FUEL LID OPENER

FIG. 755A FUEL LID OPENER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36930M82000-000	COVER (30X100X2)	2	Rp6.500
2	75411M64L10-000	CLAMP,FUEL LID OPENER CABLE	1	Rp6.500
3	76420-73R00-000	LEVER,FUEL LID OPENER	1	Rp30.500
4	76430-73R00-000	CABLE,FUEL LID OPENER	1	Rp59.000
5	76520-72M00-000	OPENER,FUEL LID	1	Rp171.000
6	02162-0612A-000	SCREW (6X12)	1	Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
