NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUCTH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUCTH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

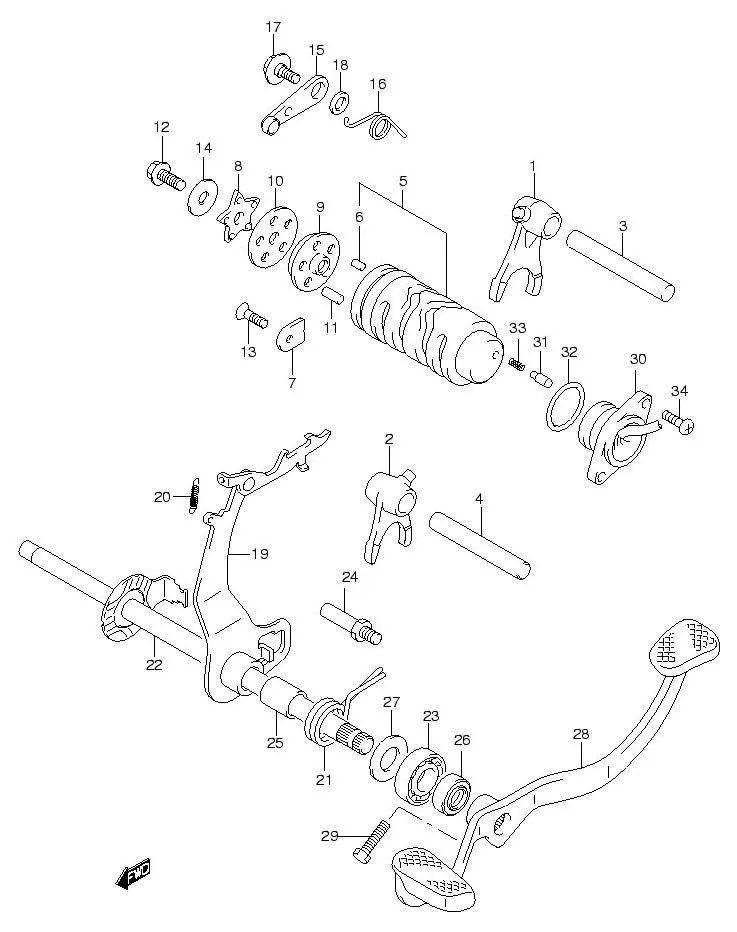

FIG.16 GEAR SHIFTING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 25211B23F20N000	FORK, GEAR SHIFT NO.1	1	-
2	DISCONTINUE SUB: 25221B23F20N000	FORK, GEAR SHIFT NO.2	1	-
3	DISCONTINUE SUB: 25411B13A01N000	SHAFT, SHIFT FORK NO.1	1	-
4	DISCONTINUE SUB: 25421B35403N000	SHAFT, SHIFT FORK NO.2	1	-
5	DISCONTINUE SUB: 25310B23F30N000	CAM, GEAR SHIFT	1	-
6	04221-04089-000 SUB: 04221B04089N000	•PIN	1	Rp3.500
7	DISCONTINUE SUB: 25341-09G02-000	RETAINER, SHIFT CAM	1	-
8	DISCONTINUE SUB: 25381B30A50N000	PLATE, SHIFT CAM STOPPER	1	-
9	25382-30A70-000 SUB: 25382-30A60-000	PLATE, SHIFT CAM NO.2	1	Rp48.500
10	DISCONTINUE SUB: 25382-35411-000	GUIDE, GR SHF CAM	1	-
11	09261-04002-000	PIN, SHIFT CAM (4X13.8)	5	Rp8.000
12	01500-0625A-000 SUB: 01500B0625AN000	BOLT, SHIFT CAM PIN	1	Rp2.000
13	DISCONTINUE SUB: 25342B09G00N000	SCREW, SHIFT CAM RETAINER	1	-
14	08211-06221-000	STOPPER, SHIFT CAM PIN	1	Rp10.500
15	25350-23F00-000	STOPPER, SHIFT CAM	1	Rp70.500
16	25355-09400-000	SPRING SHIFT CAM	1	Rp105.000
17	09111-06041-000 SUB: 09111B06041N000	BOLT, SHIFT CAM (6X14.3)	1	Rp4.000
18	08211-06121-000 SUB: 08211B06121N000	WASHER, SHIFT CAM	1	Rp7.500
19	25520-09G30-000 SUB: 25520B09G30N000	ARM, GEAR SHIFT	1	Rp37.500
20	09443-05019-000 SUB: 09443B05019N000	SPRING, SHIFT PAWL	1	Rp6.500
21	09444-26028-000	SPRING, SHIFT ARM RETURN	1	Rp11.000
22	25510-20G20-000 SUB: 25510B20G20N000	SHAFT, GEAR SHIFT	1	Rp148.000
23	08110-60010-000 SUB: 08110B60010N000	BEARING, GEAR SHIFT	1	Rp37.000
24	25671-20G00-000	STOPPER, SHIFT ARM	1	Rp11.000
25	09180-12036-000	SPACER, SHIFT ARM (12X16X20)	1	Rp64.000
26	09283-12010-000 SUB: 09285-12002L000	SEAL, SHIFT SHAFT OIL	1	Rp10.000
27	DISCONTINUE SUB: 25516B07H00N000	SPACER	1	-
28	25610-09G20-000 SUB: 25610B09G20N000	LEVER ASSY, GEAR SHIFT	1	Rp90.500
29	01500-0620B-000 SUB: 01500B0620BN000	BOLT, SHIFT LEVER	1	Rp3.000
30	37720-20G10-000 SUB: 37720B30D00N000	BASE ASSY, GEAR SHIFT	1	Rp42.500
31	09209-05011-000 SUB: 09209B05011N000	CONTACT, GEAR POSITION	1	Rp5.500
32	09280-21008-000 SUB: 09280-21008L000	O RING, GEAR SHIFT	1	Rp2.500	D:2.5, ID:21.0
33	09440-04010-000 SUB: 09440B04010N000	SPRING, GEAR SHIFT	1	Rp3.000
34	02112-7516A-000 SUB: 02112B7516AN000	SCREW, GEAR SHIFT	2	Rp7.000
