NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUCTH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUCTH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

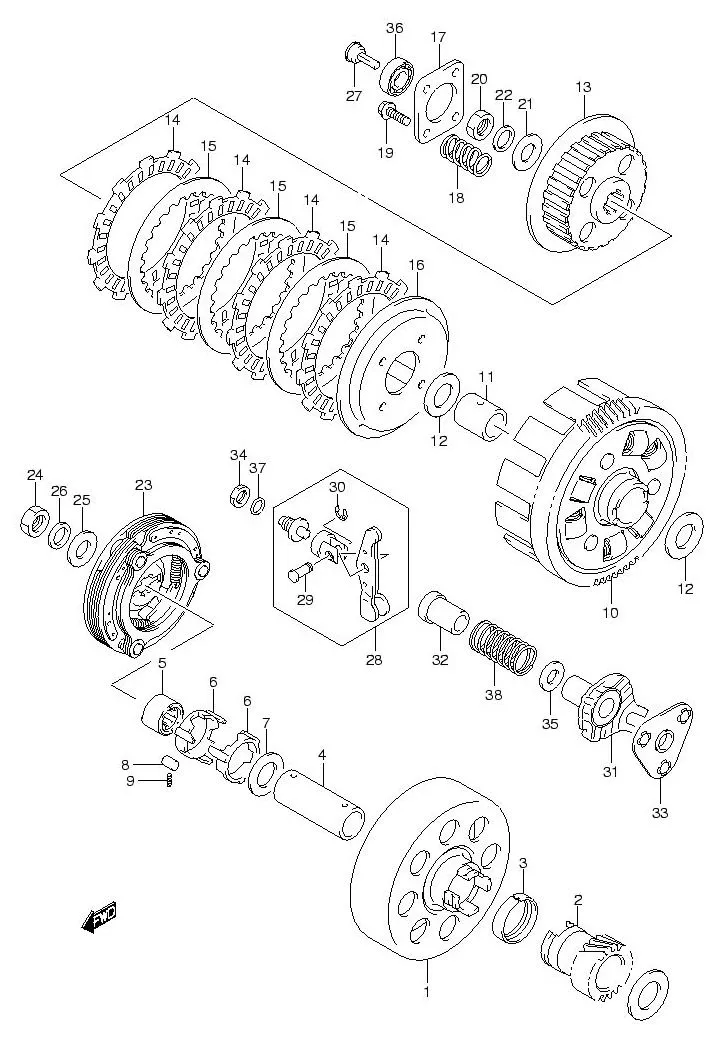

FIG.14 CLUCTH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21102-23FB0-000 SUB: 21102B23F10N000	HOUSING, CLUTCH 1ST	1	Rp222.000
2	DISCONTINUE SUB: 21111B23F00N000	GEAR, PRIMARY DRIVE	1	-
3	21114-23F00-000 SUB: 21114B23F00N000	RING, PRIMARY DRIVE GEAR	1	Rp34.500
4	DISCONTINUE SUB: 21119B23F30N000	SPACER, PRIMARY DRIVE	1	-
5	21631-21D02-000 SUB: 21631B21D02N000	RACE, ONE WAY CLUTCH INR	1	Rp66.500
6	21652-23F00-000 SUB: 21652B23F00N000	RETAINER, ONE WAY CLUTCH	2	Rp8.500
7	DISCONTINUE SUB: 09181B18002N000	WASHER, PRI DRIVE GEAR	2	-
8	09261-07006-000 SUB: 09261B07006N000	ROLLER, ONE WAY CLUTCH	3	Rp4.000
9	09440-02002-000 SUB: 09440B02002N000	SPRING, ONE WAY CLUTCH	3	Rp3.000
10	DISCONTINUE SUB: 21200B09G00N000	GEAR ASSY, PRIMARY DRIVEN	1	-
11	21251-23F20-000 SUB: 21251B23F20N000	SPACER, PRIMARY DRIVEN	1	Rp25.000
12	09181-17018-000 SUB: 09181B17018N000	WASHER (17X32X2.0)	2	Rp8.000
13	21411-20G00-000 SUB: 21411B09G00N000	HUB, CLUTCH SLEEVE	1	Rp60.000
14	DISCONTINUE SUB: 21441B23F00N000	PLATE, CLUTCH DRIVE	4	-
15	21451-21D40-000 SUB: 21451B21D40N000	PLATE, CLUTCH DRIVEN	3	Rp21.500
16	21461-09G00-000 SUB: 21461B09G00N000	DISK, CLUTCH PRESSURE	1	Rp35.000
17	21465-09G00-000 SUB: 21465B09G00N000	PLATE, RELEASE	1	Rp3.000
18	09440-18035-000 SUB: 09440B18035N000	SPRING, CLUTCH	4	Rp6.000
19	21482-09G00-000 SUB: 21482B09G00N000	BOLT, CLUTCH SPRING	4	Rp3.000
20	09140-14022-000 SUB: 09140B14022N000	NUT, CLUTCH SLEEVE HUB	1	Rp9.000
21	09160-14005-000 SUB: 09160B14005N000	WASHER, CLUTCH SLEEVE HUB	1	Rp4.500
22	09164-14011-000 SUB: 09164B14011N000	WASHER, CLUTCH SLEEVE WAVE	1	Rp4.000
23	21501-23F10-000 SUB: 21501B23F10N000	CLUTCH ASSY, SHOE	1	Rp282.000
24	09140-14022-000 SUB: 09140B14022N000	NUT, SHOE CLUTCH	1	Rp9.000
25	09160-14005-000 SUB: 09160B14005N000	WASHER	1	Rp4.500
26	09164-14011-000 SUB: 09164B14011N000	WASHER	1	Rp4.000
27	23121-09G01-000 SUB: 23121B09G00N000	PIECE, CLUTCH PUSH	1	Rp11.500
28	23220-23F20-000 SUB: 23220B23F20N000	ARM, CLUTCH RELEASE	1	Rp165.500
29	09208-07005-000 SUB: 09208B07005N000	•PIN	1	Rp9.500
30	DISCONTINUE SUB: 08332B11058N000	•E-RING	1	-
31	23230-20G00-000 SUB: 23230B20G00N000	GUIDE, RELEASE BALL OUTER	1	Rp33.000
32	23234-23F10-000 SUB: 23234B23F10N000	SPACER, RELEASE ARM	1	Rp24.000
33	23250-20G00-000 SUB: 23250B20G00N000	BALL, CLUTCH RELEASE	1	Rp17.000
34	09140-12051-000 SUB: 09140B12051N000	NUT, CLUTCH RELEASE ADJUST	1	Rp10.000
35	09160-10142-000 SUB: 09160-10085-000	WASHER, RELEASE ARM	1	Rp17.000
36	09262-15032-000 SUB: 09262B15032N000	BEARING, PUSH PIECE THRUST	1	Rp40.500
37	09280-12004-000 SUB: 09280B12004N000	O RING	1	Rp2.500	(D:1.9,ID:11.8)
38	DISCONTINUE SUB: 09440B19025N000	SPRING, RELEASE ARM	1	-
