NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

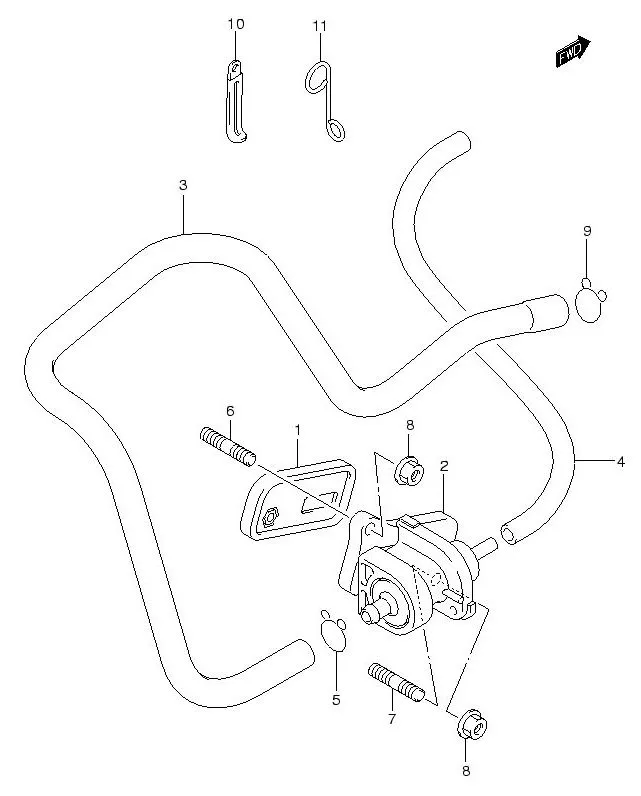

FIG.13 2ND AIR

FIG.13 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-20G10-000
SUB: 18450B20G00N000		 VALVE ASSY, 2ND AIR REED 1 Rp78.000
2 DISCONTINUE
SUB: 18510B07H10N000		 VALVE ASSY, AIR CUT 1 -
3 18711-20G00-000 HOSE, 2ND AIR CLEANER 1 Rp23.000
4 09352-40703-000
SUB: 09352-40703-450		 HOSE, 2ND AIR VALVE VACUUM 1 Rp5.500
5 09401-10401-000
SUB: 09401B10401N000		 CLIP, 2ND AIR CLEANER HOSE 1 Rp5.500
6 01421-0616A-000
SUB: 01421B0616BN000		 BOLT, STUD 1 Rp3.500
7 DISCONTINUE
SUB: 09108-06102-000		 BOLT, STUD 1 -
8 08316-1006A-000
SUB: 08316B1006BN000		 NUT 2 Rp2.000
9 09401-12305-000 CLIP 1 Rp4.000
10 09404-06429-000
SUB: 09404B06429N000		 CLAMP 1 Rp15.000
11 13827-20G00-000 CLAMP 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
