NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

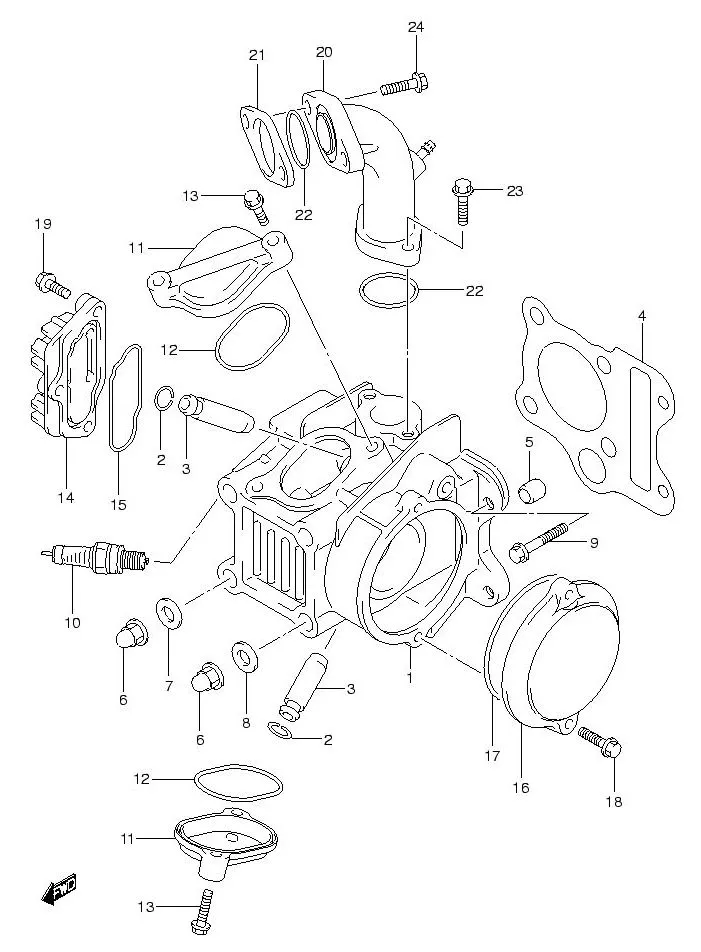

FIG.1 CYLINDER HEAD

FIG.1 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B09G60N000		 HEAD, CYLINDER 1 -
2 09381-10004-000
SUB: 09381B10004N000		 •RING 2 Rp3.000
3 11115-09G10-000
SUB: 11115B09G20N000		 GUIDE, VALVE (OS:0.3) 2 Rp18.000
4 11141-09G30-000
SUB: 11141B09G20N000		 GASKET, CYLINDER HEAD 1 Rp15.500
5 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
6 09159-08137-000 NUT 4 Rp11.000
7 09168-08021-000
SUB: 09168B08021N000		 GASKET 2 Rp5.000
8 09160-08121-000
SUB: 09160B08121N000		 WASHER 2 Rp6.500
9 01547-0625A-000
SUB: 01547B0625BN000		 BOLT, CYLINDER HEAD 2 Rp6.500
10-1 09482-00406-000
SUB: 09482B00406N000		 SPARK PLUG (NGK,C6HSA) 1 Rp25.500
10-2 DISCONTINUE
SUB: 09482-00720L000		 SPARK PLUG (ND,U20FS-U) 1 -
11 11175-09400-000
SUB: 11175-09400L000		 CAP, INSPECTION 2 Rp14.000
12 09280-50007-000
SUB: 09280B50007N000		 O RING, INSPECTION CAP 2 Rp4.000
13 01547-0620B-000
SUB: 01547B0620BN000		 BOLT 4 Rp6.500
14 DISCONTINUE
SUB: 11134B09G00N000		 COVER, CYLINDER HEAD RH 1 -
15 11144-09G00-000
SUB: 11144B09G00N000		 O RING, HEAD COVER 1 Rp6.500
16 DISCONTINUE
SUB: 11121B09G10N000		 COVER, CYLINDER HEAD LH 1 -
17 09280-80004-000
SUB: 09280B80004N000		 O RING 1 Rp4.500
18 01547-0620B-000
SUB: 01547B0620BN000		 BOLT 2 Rp6.500
19 01547-0625A-000
SUB: 01547B0625BN000		 BOLT, CYLINDER HEAD COVER 3 Rp6.500
20 DISCONTINUE
SUB: 13110B09G10N000		 PIPE, INTAKE 1 -
21 DISCONTINUE
SUB: 13129B07H00N000		 INSULATOR, CARBURETOR 1 -
22 09280-24005-000
SUB: 09280-24010-000		 O RING, INSULATOR 2 Rp3.000
23 01547-0625A-000
SUB: 01547B0625BN000		 BOLT, INTAKE HEAD 2 Rp6.500
24 01547-0625A-000
SUB: 01547B0625BN000		 BOLT, INTAKE CARBURETOR 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
