NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUCTH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUCTH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

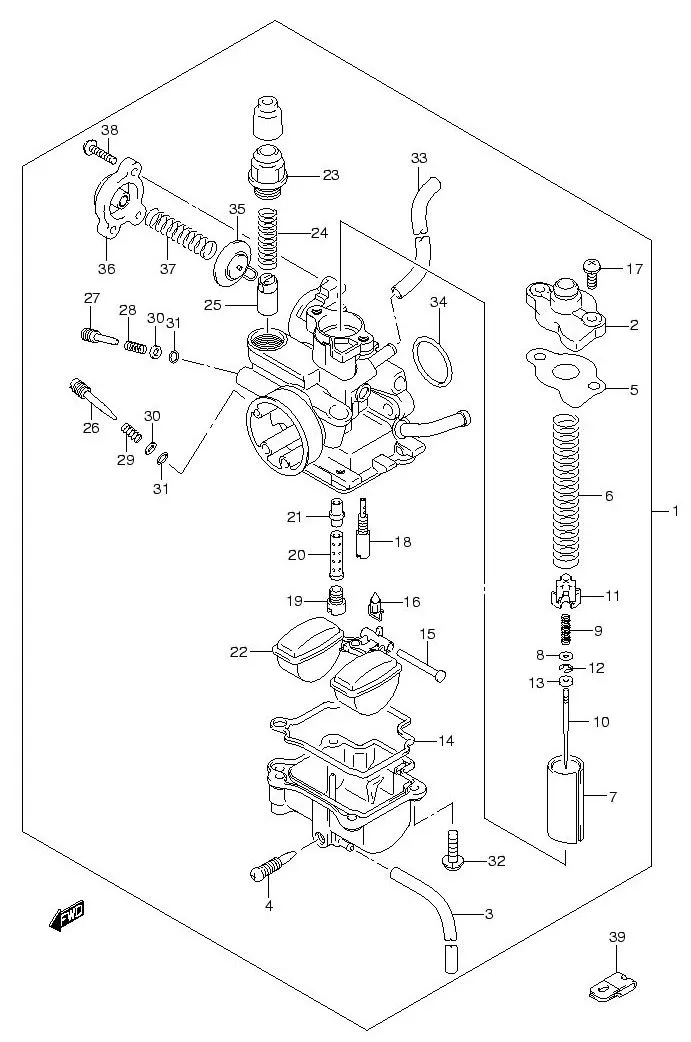

FIG.9 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs
1	13200-07H20-000 SUB: 13200B07H20N000	CABURETOR	1	Rp616.500
2	DISCONTINUE SUB: 13261B09G20N000	•CAP ASSY, TOP	1	-
3	09355-25001-600 SUB: 09355-25705-600	•HOSE	1	Rp51.000
4	13247-09G10-000 SUB: 13247B09G10N000	•SCREW, DRAIN	1	Rp21.000
5	13249-30A10-000 SUB: 13249B30A10N000	•GASKET	1	Rp9.000
6	DISCONTINUE SUB: 13573B20G20N000	•SPRING	1	-
7	13551-20G20-000 SUB: 13551B20G20N000	•PISTON VALVE	1	Rp65.000
8	13382-23F00-000 SUB: 13382B23F00N000	•WASHER	1	Rp8.500
9	13481-23F00-000 SUB: 13481B23F00N000	•SPRING	1	Rp8.500
10	13383-09G10-000 SUB: 13383B09G10N000	•NEEDLE, JET (4PA11)	1	Rp22.500
11	13418-12F40-000 SUB: 13418B12F40N000	•HOLDER	1	Rp12.500
12	13533-98410-000 SUB: 13533B98410N000	•E RING	1	Rp6.000
13	13387-23F00-000 SUB: 13387B23F00N000	•RING	1	Rp8.500
14	13258-30A00-000 SUB: 13258B30A00N000	•PACKING	1	Rp9.000
15	13254-20010-000 SUB: 13254B20010N000	•PIN	1	Rp7.500
16	DISCONTINUE SUB: 13372B20GA0N000	•NEEDLE ASSY	1	-
17	DISCONTINUE SUB: 02112B34123N000	•SCREW	2	-
18	09492-15011-000 SUB: 09492B15011N000	•JET, PILOT	1	Rp21.000
19	09491-95004-000 SUB: 09491B95004N000	•JET, MAIN (95)	1	Rp12.500
20	13385-09G20-000 SUB: 13385B09G20N000	•PIPE	1	Rp37.000
21	13341-20G00-000 SUB: 13341B20G00N000	•JET, NEEDLE (D-8)	1	Rp34.500
22	13250-30D00-000 SUB: 13250B30D00N000	•FLOAT ASSY	1	Rp32.500
23	13418-43410-000 SUB: 13418B43410N000	•HOLDER, GUIDE	1	Rp7.500
24	13417-01010-000 SUB: 13417B01010N000	•SPRING	1	Rp6.500
25	13411-01010-000 SUB: 13411B01010N000	•PLUNGER ASSY	1	Rp13.000
26	13267-09400-000	•ADJUSTER	1	Rp55.500
27	DISCONTINUE SUB: 13267B09G20N000	•ADJUST SCREW	1	-
28	DISCONTINUE SUB: 13268B09G20N000	•SPRING	1	-
29	13268-35010-000 SUB: 13268B35010N000	•SPRING	1	Rp5.500
30	13291-29900-000 SUB: 13291B29900N000	•WASHER	2	Rp6.500
31	13295-29900-000 SUB: 13295B29900N000	•O RING	2	Rp8.000
32	13601-04148-000 SUB: 13601B04148N000	•SCREW	4	Rp8.000
33	DISCONTINUE SUB: 13684B07H00N000	•HOSE	1	-
34	DISCONTINUE SUB: 13278B29C50N000	•O RING	1	-
35	13480-09G10-000 SUB: 13480B09G10N000	•DIAPHRAGM ASSY	1	Rp31.500
36	DISCONTINUE SUB: 13502B09G10N000	•COVER, DIAPHRAGM	1	-
37	13481-09GE0-000 SUB: 13481B09GE0N000	•SPRING	1	Rp8.000
38	DISCONTINUE SUB: 13601B20G00N000	•SCREW	2	-
39	DISCONTINUE SUB: 13827B09G00N000	CLAMP, OVERFLOW HOSE	1	-
