NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

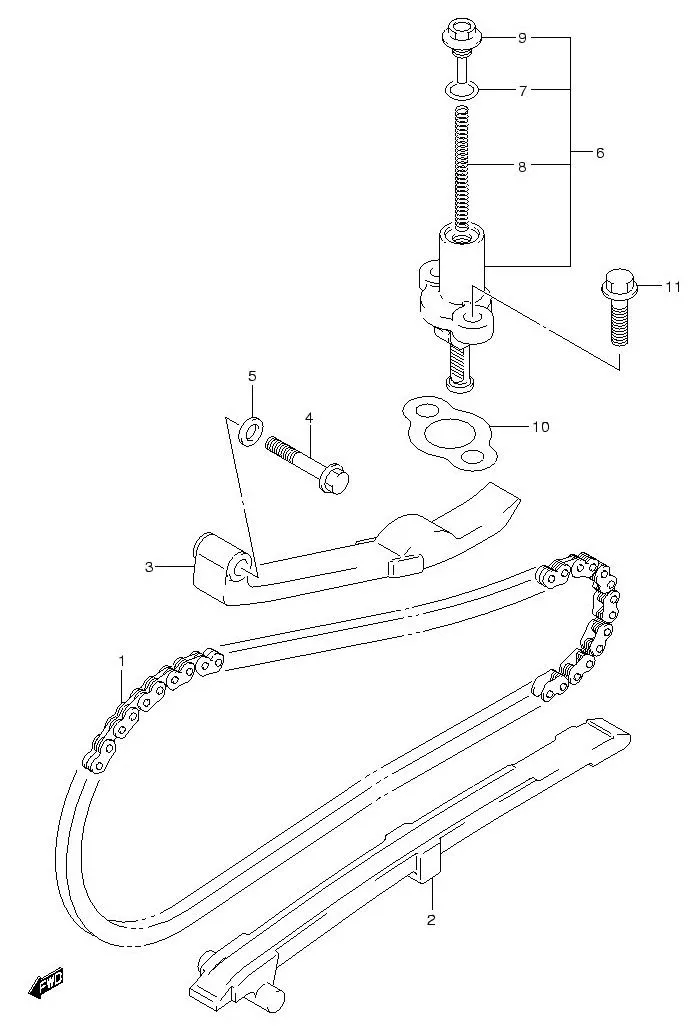

FIG.8 CAM CHAIN

FIG.8 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-09G11-000
SUB: 12760B09G11N000		 CHAIN, CAMSHAFT DRIVE 1 Rp95.500
2 12771-09G00-000
SUB: 12771B09G00N000		 GUIDE, CAM CHAIN 1 Rp41.000
3 12811-09G00-000
SUB: 12811B09G00N000		 TENSIONER, CAM CHAIN 1 Rp41.500
4 09103-06247-000
SUB: 09103B06247N000		 BOLT, CAM CHAIN TENSIONER 1 Rp4.000
5 09168-06004-000
SUB: 09168B06004N000		 GASKET 1 Rp2.500
6 12830-09G00-000
SUB: 12830-30A01-000		 ADJUSTER ASSY, TENSIONER 1 Rp253.000
7 DISCONTINUE
SUB: 12832-02A00-000		 •O RING 1 -
8 12833-30A01-000 •SPRING 1 Rp17.000
9 DISCONTINUE
SUB: 12834-02A00-000		 •PLUG 1 -
10 12837-09G20-000
SUB: 12837B09G20N000		 GASKET, TENSIONER ADJUSTER 1 Rp3.000
11 01547-0620B-000
SUB: 01547B0620BN000		 BOLT (6X20) 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
