NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

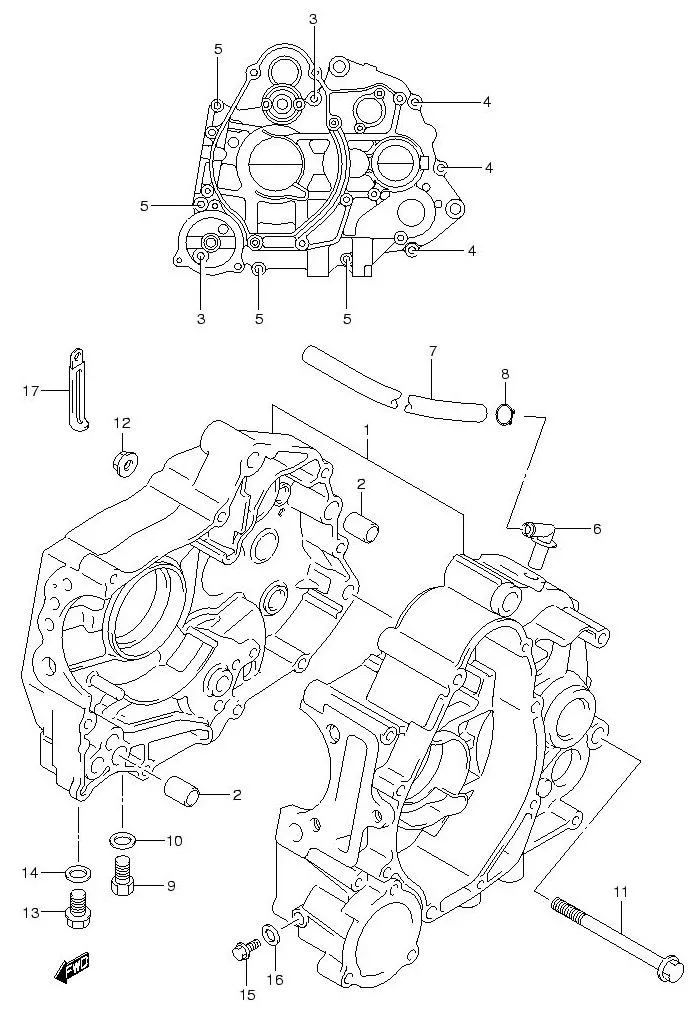

FIG.3 CRANKCASE

FIG.3 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11300B09G50N000		 CRANKCASE ASSY 1 -
2 04211M13189-000 •PIN 2 Rp9.000
3 01547-0640B-000
SUB: 01547B0640BN000		 •SCREW 2 Rp7.000
4 01547-0650A-000
SUB: 01547B0650BN000		 •SCREW 3 Rp7.000
5 01547-0675A-000
SUB: 01547B0675BN000		 •SCREW 4 Rp7.500
6 DISCONTINUE
SUB: 16910-23F00-000		 UNION, BREATHER HOSE 1 -
7 09352-70113-340 HOSE, BREATHER 1 Rp12.500
8 09401-10401-000
SUB: 09401B10401N000		 CLIP 1 Rp5.500
9 01500-1016A-000
SUB: 01500B1016BN000		 PLUG, OIL DRAIN 1 Rp7.500
10 09168-10L02-000
SUB: 09168B10002N000		 GASKET 1 Rp2.500
11 DISCONTINUE
SUB: 09103B10408N000		 BOLT (L:110) 2 -
12 08319-3110A-000
SUB: 08319B3110BN000		 NUT 2 Rp4.500
13 09247-10008-000 PLUG, OIL GALLERY (10X12) 1 Rp11.500
14 09168-10L02-000
SUB: 09168B10002N000		 GASKET (9.9X14X0.3) 1 Rp2.500
15 01547-0610A-000
SUB: 01547B0612BN000		 PLUG, OIL GALLERY 1 Rp3.000
16 09168-06004-000
SUB: 09168B06004N000		 GASKET (6.2X11X1.2) 1 Rp2.500
17 09404-06431-000 CLAMP 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
