NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUCTH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUCTH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

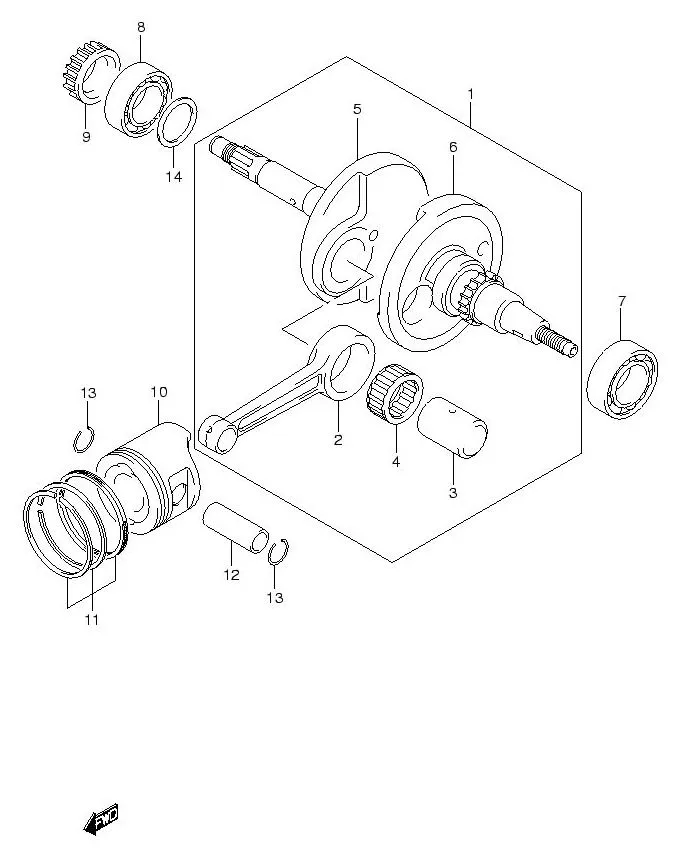

FIG.5 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 12200B09G40N000	CRANKSHAFT ASSY	1	-
2	12161-09G00-000 SUB: 12161-09G00-0C0	•ROD, CONNECTING	1	Rp84.500
3	12211-20G00-0A0 SUB: 12211-20G00-000	•PIN, CRANK	1	Rp56.500
4	09263-28040-0B0 SUB: 09263B28040N0B0	•BEARING	1	Rp50.500
5	DISCONTINUE SUB: 12221B09G00N000	•CRANKSHAFT, RH	1	-
6	DISCONTINUE SUB: 12261B09G40N000	•CRANKSHAFT, LH	1	-
7	09262-35063-000 SUB: 09262B35063N000	BEARING, LH	1	Rp69.000
8	09262-25L02-000 SUB: 09262B25159N000	BEARING, RH	1	Rp73.500
9	16321-23F01-000 SUB: 16321B23F01N000	GEAR, OIL PUMP DRIVE	1	Rp24.000
10-1	12111-09G10-0F0 SUB: 12111B09G10N0F0	PISTON (STD)	1	Rp78.500
10-2	12111-09G10-050 SUB: 12111B09G10N050	PISTON OS : 0.50	1	Rp76.000
10-3	12111-09G10-100 SUB: 12111B09G10N100	PISTON OS : 1.00	1	Rp78.500
11-1	12140-23F10-000 SUB: 12140B23F10N000	RING SET, PISTON	1	Rp58.000
11-2	12140-23F10-050 SUB: 12140B23F10N050	RING SET, PISTON (OS:0.5)	1	Rp58.000
12	12151-20G00-000 SUB: 12151B20G00N000	PIN, PISTON	1	Rp18.000
13	09381-14001-000 SUB: 09381B14001N000	CIRCLIP	2	Rp2.500
14-1	09181-25051-000	SHIM (T:0.60)	1	Rp17.000
14-2	09181-25052-000	SHIM (T:0.65)	1	Rp18.000
14-3	09181-25160-000 SUB: 09181-25053-000	SHIM (T:0.70)	1	Rp19.500
14-4	09181-25054-000	SHIM (T:0.75)	1	Rp18.000
14-5	09181-25162-000 SUB: 09181-25055-000	SHIM (T:0.80)	1	Rp17.000
14-6	09181-25056-000	SHIM (T:0.85)	1	Rp18.500
14-7	09181-25164-000 SUB: 09181-25057-000	SHIM (T:0.90)	1	Rp19.500
14-8	09181-25058-000	SHIM (T:0.95)	1	Rp18.000
14-9	09181-25167-000 SUB: 09181-25059-000	SHIM (T:1.00)	1	Rp18.000
14-10	09181-25060-000	SHIM (T:1.05)	1	Rp18.500
14-11	09181-25061-000	SHIM (T:1.10)	1	Rp19.000
14-12	09181-25062-000	SHIM (T:1.15)	1	Rp19.500
14-13	DISCONTINUE SUB: 09181-25063-000	SHIM (T:1.20)	1	-
14-14	09181-25179-000	SHIM (T:1.25)	1	Rp24.500
14-15	DISCONTINUE SUB: 09181-25181-000	SHIM (T:1.30)	1	-
