NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

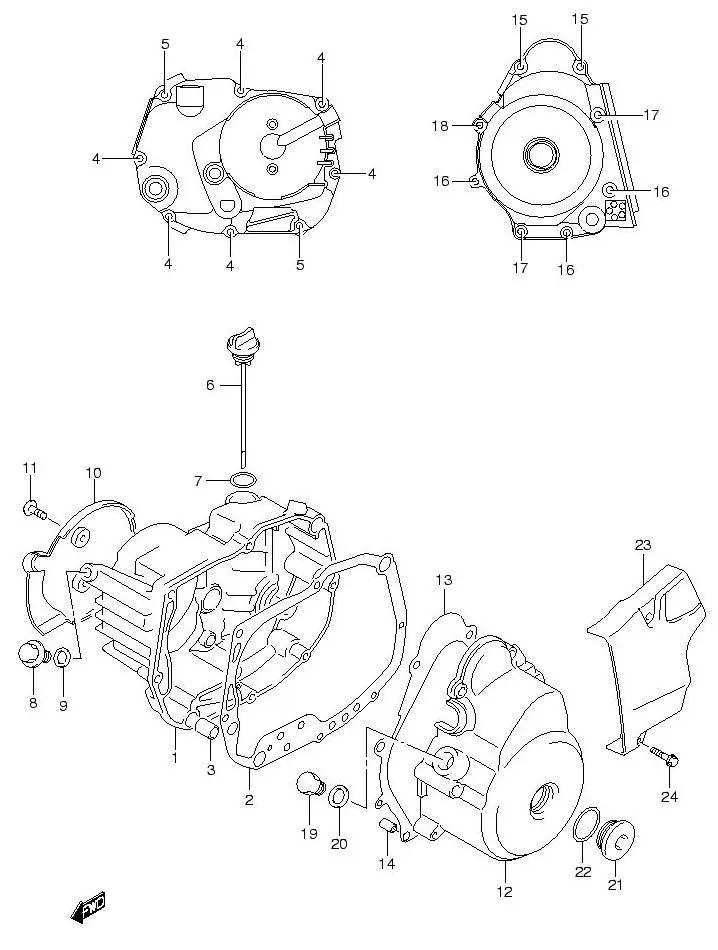

FIG.4 CRANKCASE COVER

FIG.4 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11341B09GB0N000		 COVER, CLUTCH 1 -
2 11482-09G20-000
SUB: 11482B09G20N000		 GASKET, CLUTCH COVER 1 Rp16.500
3 04211M13189-000 PIN 2 Rp9.000
4 01547-0630A-000
SUB: 01547B0630BN000		 SCREW 6 Rp6.500
5 01547-0640B-000
SUB: 01547B0640BN000		 SCREW 2 Rp7.000
6 11971-09403-000
SUB: 11971B09403N000		 GAUGE, OIL LEVEL 1 Rp46.000
7 09280-17003-000
SUB: 09280-17003L000		 O RING 1 Rp2.000
8 01550-0812B-000 PLUG, OIL CHECK 1 Rp5.500
9 09168-08015-000
SUB: 09168B08015N000		 GASKET 1 Rp2.000
10 DISCONTINUE
SUB: 11383B20GA0N000		 CAP, CLUTCH COVER 1 -
11 02142-0508A-000
SUB: 02142B0508AN000		 SCREW, CAP 2 Rp3.500
12 DISCONTINUE
SUB: 11351B23FA0N000		 COVER, MAGNETO 1 -
13 11483-09G30-000
SUB: 11483B09G20N000		 GASKET, MAGNETO COVER 1 Rp12.000
14 04211-09149-000
SUB: 04211B09149N000		 PIN 2 Rp3.000
15 01547-0680A-000
SUB: 01547-0680B-000		 SCREW 2 Rp4.000
16 01547-0630A-000
SUB: 01547B0630BN000		 SCREW 3 Rp6.500
17 01547-0640B-000
SUB: 01547B0640BN000		 SCREW 2 Rp7.000
18 01547-0650A-000
SUB: 01547B0650BN000		 SCREW 1 Rp7.000
19 09247-12104-000 PLUG, TOP (12X10) 1 Rp17.500
20 09168-12002-000
SUB: 09168B12002N000		 GASKET (12.1X16.2X1.2) 1 Rp10.000
21 09259-26015-000 PLUG, HOLE 1 Rp11.000
22 09280-22008-000
SUB: 09280-22008L000		 O RING 1 Rp3.500
23 DISCONTINUE
SUB: 11361B23FA0N000		 COVER, ENGINE SPROCKET 1 -
24 01547-0630A-000
SUB: 01547B0630BN000		 SCREW 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
