NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

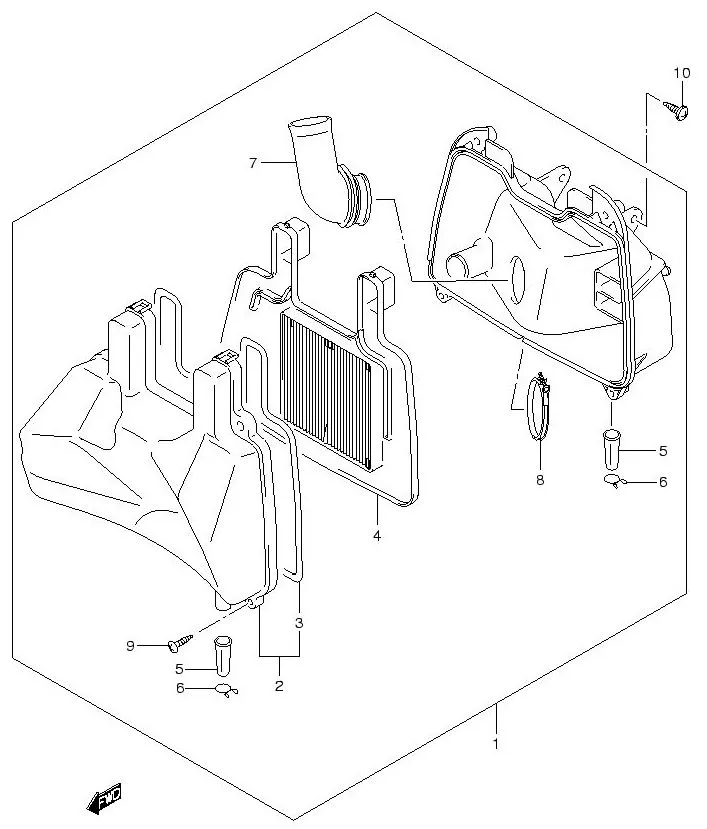

FIG.10 AIR CLEANER

FIG.10 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-09G51-000
SUB: 13700B09G50N000		 CLEANER ASSY, AIR 1 Rp143.500
2 DISCONTINUE
SUB: 13740B09G10N000		 •CAP, AIR CLEANER 1 -
3 DISCONTINUE
SUB: 13746B09G00N000		 ••GASKET 1 -
4 13780-09G00-000
SUB: 13780B09G00N000		 •FILTER, AIR CLEANER 1 Rp46.000
5 13871-09G00-000
SUB: 13871B09G00N000		 •PLUG, DRAIN 2 Rp4.000
6 13824-18910-000
SUB: 13824B18910N000		 •CLIP 2 Rp3.500
7 13881-09G30-000
SUB: 13881B09G30N000		 •TUBE, OUTLET 1 Rp18.000
8 09402-40208-000
SUB: 09402B40208N000		 •CLAMP 1 Rp9.000
9 03541-0520A-000
SUB: 03541B05203N000		 •SCREW 4 Rp3.500
10 09136-06062-000
SUB: 09136B06017N000		 SCREW, AIR CLEANER 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
