NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUCTH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUCTH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

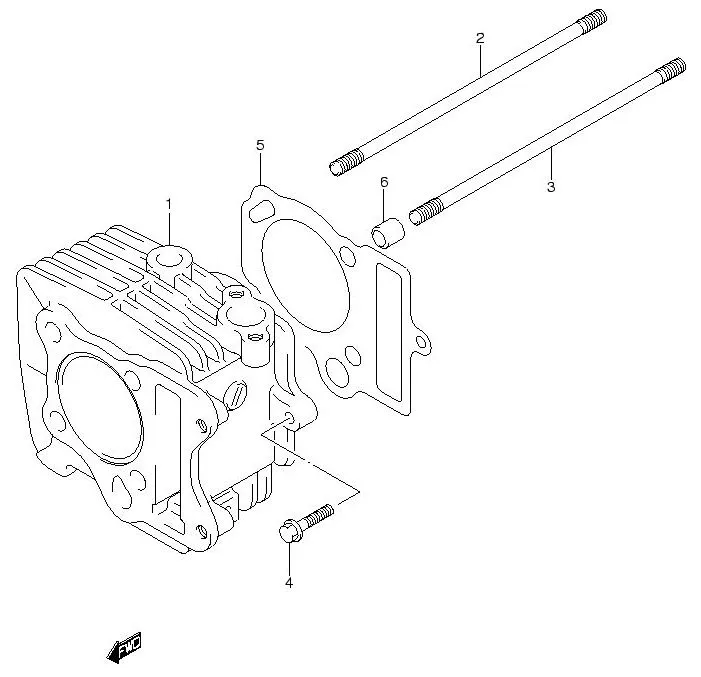

FIG.2 CYLINDER

FIG.2 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-09G10-000 SUB: 11210B09G10N000	CYLINDER	1	Rp467.500
2	09108-08171-000	STUD BOLT (8X192)	2	Rp52.500
3	09108-08263-000	STUD BOLT (8X197)	2	Rp54.500
4	01547-0625A-000 SUB: 01547B0625BN000	STUD BOLT (6X25)	1	Rp6.500
5	11241-09G30-000 SUB: 11241B09G20N000	GASKET, CYLINDER	1	Rp10.000
6	04211-11129-000 SUB: 04211B11129N000	PIN	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
