NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

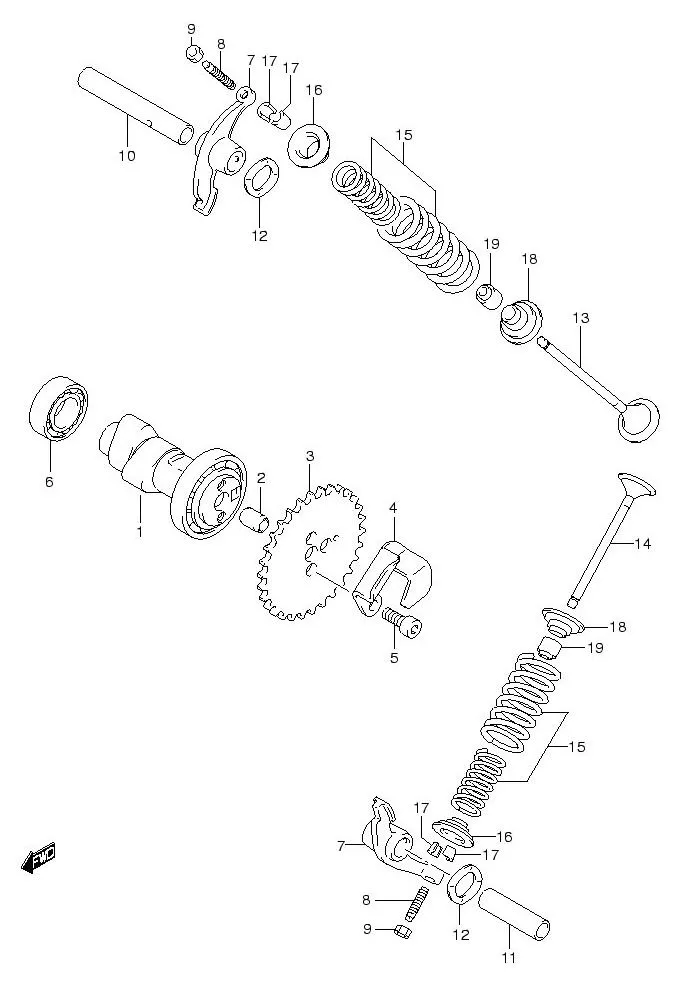

FIG.7 CAM SHAFT/VALVE

FIG.7 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12710B07H10N000		 CAMSHAFT COMP 1 -
2 09206-08008-000
SUB: 09206B08008N000		 •PIN 1 Rp4.000
3 DISCONTINUE
SUB: 12741B09G10N000		 •SPROCKET, CAMSHAFT 1 -
4 12954-09G10-000
SUB: 12954B09G10N000		 •STOPPER 1 Rp25.000
5 09106-05028-000
SUB: 09106B05028N000		 •BOLT 2 Rp6.500
6 DISCONTINUE
SUB: 09262B15026N000		 BEARING 1 -
7 12840-20G20-000
SUB: 12840-20G00-000		 ARM, VALVE ROCKER 2 Rp127.500
8 12842-49201-000
SUB: 12842-09G00-000		 •SCREW, ADJUSTING 2 Rp30.500
9 12843-27A00-000
SUB: 12843-09G00-000		 •NUT, ADJUSTING 2 Rp19.000
10 12861-09D00-000
SUB: 12861B09D00N000		 SHAFT, ROCKER ARM INTAKE 1 Rp16.500
11 12871-30A00-000
SUB: 12871B30A00N000		 SHAFT, ROCKER ARM EXHAUST 1 Rp14.500
12 09164-10017-000
SUB: 09164B10012N000		 WASHER 2 Rp10.500
13 12911-09G20-000
SUB: 12911B09G20N000		 VALVE, INTAKE 1 Rp45.000
14 12912-09G20-000
SUB: 12912B20G20N000		 VALVE, EXHAUST 1 Rp66.500
15 12921-09G00-000
SUB: 12921B09G00N000		 SPRING SET, VALVE 2 Rp12.000
16 12931-09G00-000
SUB: 12931B09G00N000		 RETAINER, VALVE SPRING 2 Rp13.000
17 12932-09G00-000 COTTER, VALVE 4 Rp4.500
18 12933-09G00-000
SUB: 12933B09G00N000		 SEAT, SPRING 2 Rp9.000
19 09289-05008-000
SUB: 09289-05008L000		 OIL SEAL 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
