NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

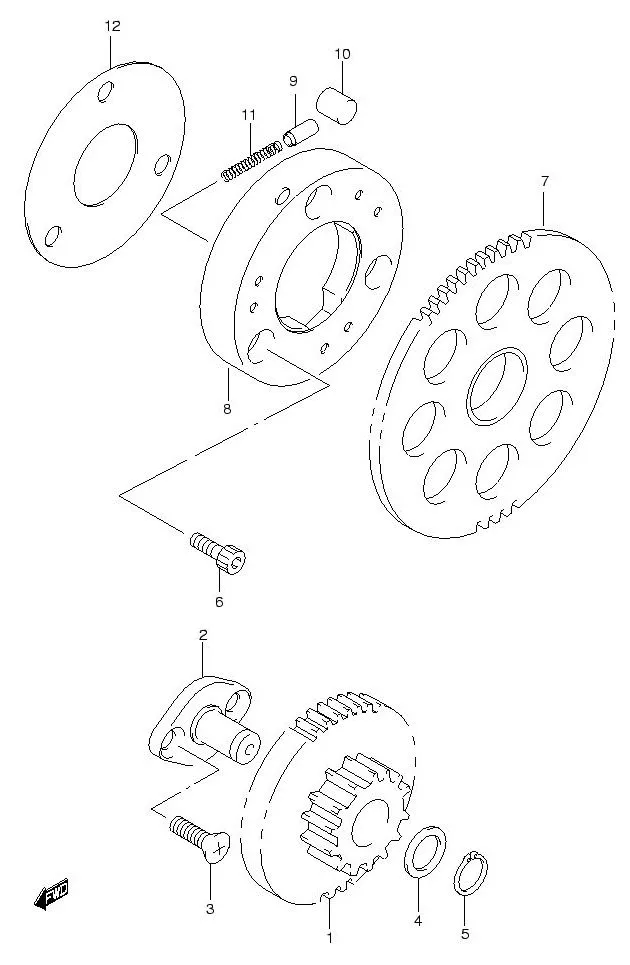

FIG.6 STARTER CLUCTH

FIG.6 STARTER CLUCTH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-23F00-000 GEAR, STARTER IDLE (NT:68/14) 1 Rp128.500
2 DISCONTINUE
SUB: 12612-23F00-000		 SHAFT, STARTER IDLE GEAR 1 -
3 02122-0616A-000
SUB: 02122B0616BN000		 SCREW 2 Rp3.500
4 09160-13010-000 WASHER 1 Rp12.500
5 08331-3113A-000
SUB: 08331-31136-000		 CIRCLIP 1 Rp13.000
6 07130-0612A-000
SUB: 07130-0612B-000		 BOLT (6X10) 3 Rp3.500
7 12620-07H11-000 GEAR COMP, STARTER CLUTCH 1 Rp481.500
8 12630-29B04-000 HUB COMP STARTER CLUCTH 1 Rp924.000
9 12633-05300-000
SUB: 12633B05300N000		 PIECE, PUSH 3 Rp49.500
10 09261-10003-000 ROLLER 3 Rp17.000
11 09440-03012-000 SPRING 3 Rp15.000
12 12649-30D00-000 SHIM 1 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
