NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUCTHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUCTHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

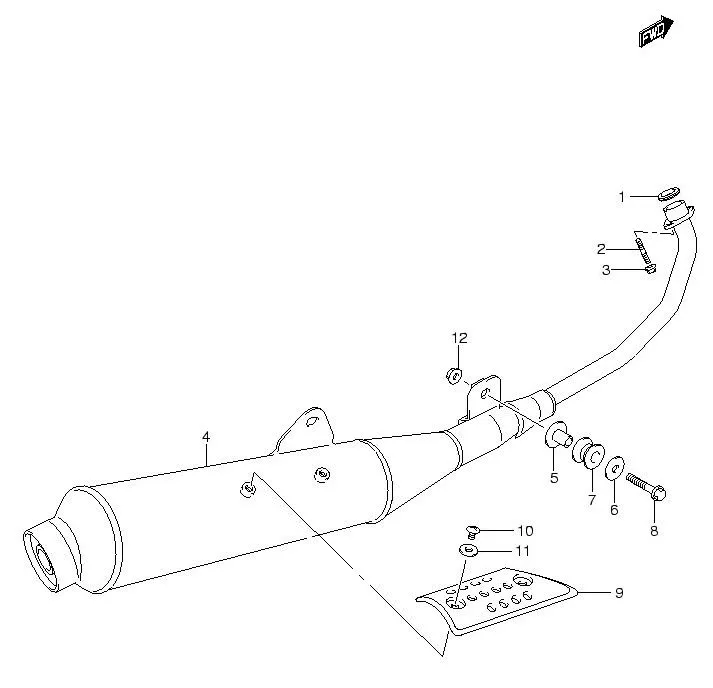

FIG.11 MUFFLER

FIG.11 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-23F30-000
SUB: 14181B23F30N000		 GASKET, EXHAUST PIPE 1 Rp5.000
2 01421-0616A-000
SUB: 01421B0616BN000		 BOLT, STUD 2 Rp3.500
3 08316-1006A-000
SUB: 08316B1006BN000		 NUT 2 Rp2.000
4 14305-07H10-000
SUB: 14305B07H10N000		 MUFFLER ASSY 1 Rp1.387.500
5 DISCONTINUE
SUB: 09180B08212N000		 SPACER, MUF SPRT 2 -
6 09160-08149-000
SUB: 09160B08149N000		 WASHER 2 Rp6.500
7 09320-12078-000
SUB: 09320-12048-000		 CUSHION 2 Rp18.000
8 01550-0840B-000
SUB: 01550B0840BN000		 BOLT 2 Rp5.500
9 14791-20G10-000
SUB: 14791B20G10N000		 COVER 1 Rp20.000
10 14783-23FA0-000
SUB: 14783B23FA0N000		 SCREW 2 Rp5.000
11 09160-06129-000
SUB: 09160B06129N000		 WASHER 2 Rp5.500
12 08316-1008A-000
SUB: 08316B1008BN000		 NUT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
