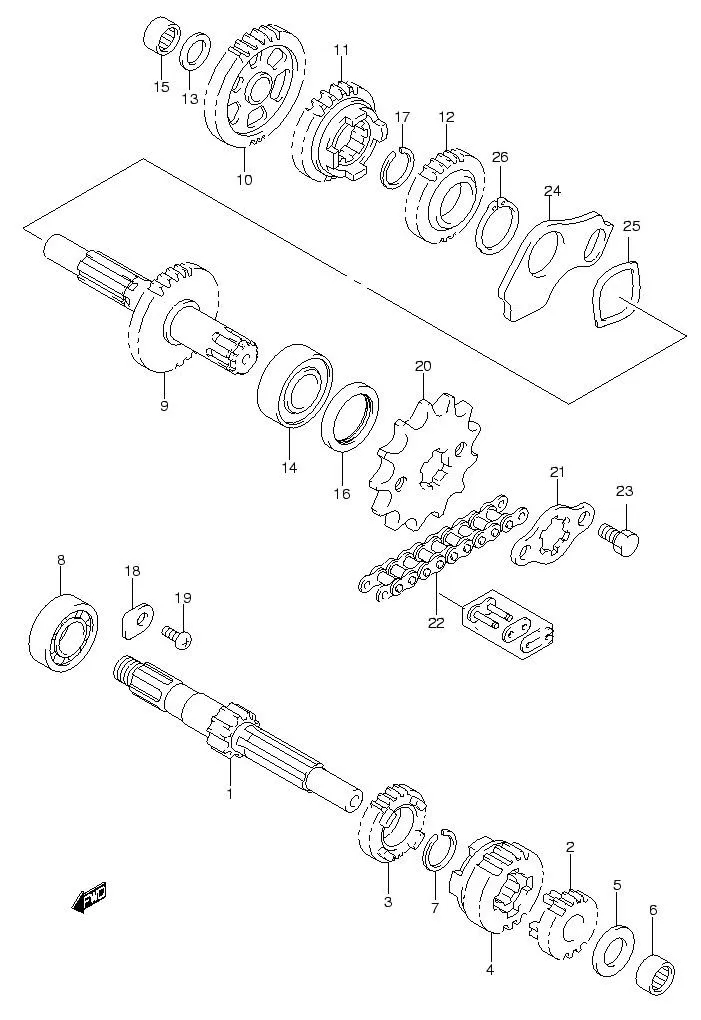

FIG.15 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 24120B23F30N000	SHAFT, COUNTER (NT:11)	1	-
2	24221-35440-000 SUB: 24221B35440N000	GEAR, 2ND DRIVE (NT:16)	1	Rp61.000
3	24231-30A40-000 SUB: 24231B30A40N000	GEAR, 3RD DRIVE (NT:19)	1	Rp75.500
4	DISCONTINUE SUB: 24241B23F30N000	GEAR, 4TH DRIVE (NT:19)	1	-
5	DISCONTINUE SUB: 09160B13006N000	WASHER, 2ND DRIVE	1	-
6	09263-13003-000 SUB: 09263B13003N000	BEARING, COUNTER LH	1	Rp27.000
7	09380-17007-000 SUB: 09380B17007N000	CIRCLIP, 3RD DRIVE	1	Rp11.000
8	08110-62030-000 SUB: 08110-62030L000	BEARING, COUNTER RH	1	Rp33.500
9	24130-09G00-000 SUB: 24130B09G30N000	SHAFT, DRIVE (NT:30)	1	Rp418.500
10	DISCONTINUE SUB: 24311B23F10N000	GEAR, 2ND DRIVEN (NT:33)	1	-
11	24331-30A40-000 SUB: 24331B30A40N000	GEAR, 3RD DRIVEN (NT:26)	1	Rp84.000
12	24341-23F30-000 SUB: 24341B23F30N000	GEAR, 4TH DRIVEN (NT:20)	1	Rp88.000
13	DISCONTINUE SUB: 09160B13006N000	WASHER, 1ST DRIVEN	1	-
14	08110-62030-000 SUB: 08110-62030L000	BEARING, DRIVE SHAFT LH	1	Rp33.500
15	09263-13003-000 SUB: 09263B13003N000	BEARING, DRIVE SHAFT RH	1	Rp27.000
16	09283-17025-000 SUB: 09283-17025L000	SEAL, DRIVE SHAFT	1	Rp7.000
17	09380-17007-000 SUB: 09380B17007N000	CIRCLIP, 4TH DRIVEN	1	Rp11.000
18	24741-20A10-000 SUB: 24741B20A10N000	RETAINER, COUNTERSHAFT BRG	1	Rp3.500
19	02112-0612A-000 SUB: 02112B0612BN000	SCREW, COUNTER SHAFT	1	Rp3.500
20-1	27511-09G10-000 SUB: 27511B09G30N000	SPROCKET, ENGINE (NT:14)	1	Rp53.500
20-2	27511-09G10-000 SUB: 27511B09G10N000	SPROCKET, ENGINE (NT:14)	1	Rp53.500
21	27512-09G00-000 SUB: 27512B09G00N000	PLATE, ENGINE SPROCKET	1	Rp8.500
22	27600-20960-102 SUB: 27600B20960N102	CHAIN ASSY, DRIVE (DID 428)	1	Rp138.500
23	01500-0610A-000 SUB: 01500B0610AN000	BOLT, ENGINE SPROCKET	0	Rp6.500
24	DISCONTINUE SUB: 25361B23F00N000	PLATE, ROTARY STOP	1	-
25	DISCONTINUE SUB: 09164B25002N000	WASHER, ROTARY WAVE	1	-
26	08331-31259-000 SUB: 08331B31259N000	CIRCLIP	1	Rp5.000
