NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

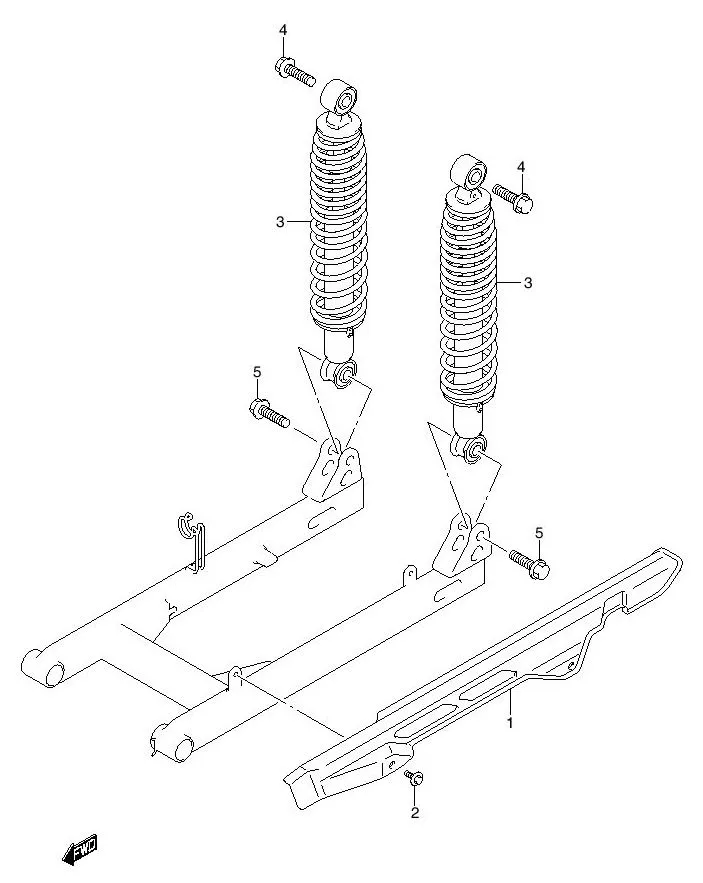

FIG.48 CHAIN CASE

FIG.48 CHAIN CASE
No No. Part Description Qty Price Per Pcs Remarks
1 61310-23F00-000
SUB: 61310B23F00N000		 CASE, CHAIN UPPER 1 Rp63.500
2 09111-06065-000
SUB: 09111B06065N000		 BOLT, FRONT 2 Rp4.000
3 DISCONTINUE
SUB: 61338B09G00N000		 SPACER, CHAIN CASE 1 -
4-1 DISCONTINUE
SUB: 62100B20GG0N000		 ABSORBER ASSY, REAR SHOCK 2 -
4-2 DISCONTINUE
SUB: 62100B20GH0N000		 ABSORBER ASSY, REAR SHOCK 2 -
5 01550-1035B-000
SUB: 01550B1035BN000		 BOLT, UPPER 2 Rp5.000
6 09103-10229-000
SUB: 09103B10229N000		 BOLT, LOWER 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
