  3. NEW SMASH (FK110SD/SC)
  4. Body
  5. FIG.45 FRONT CALIPER

NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

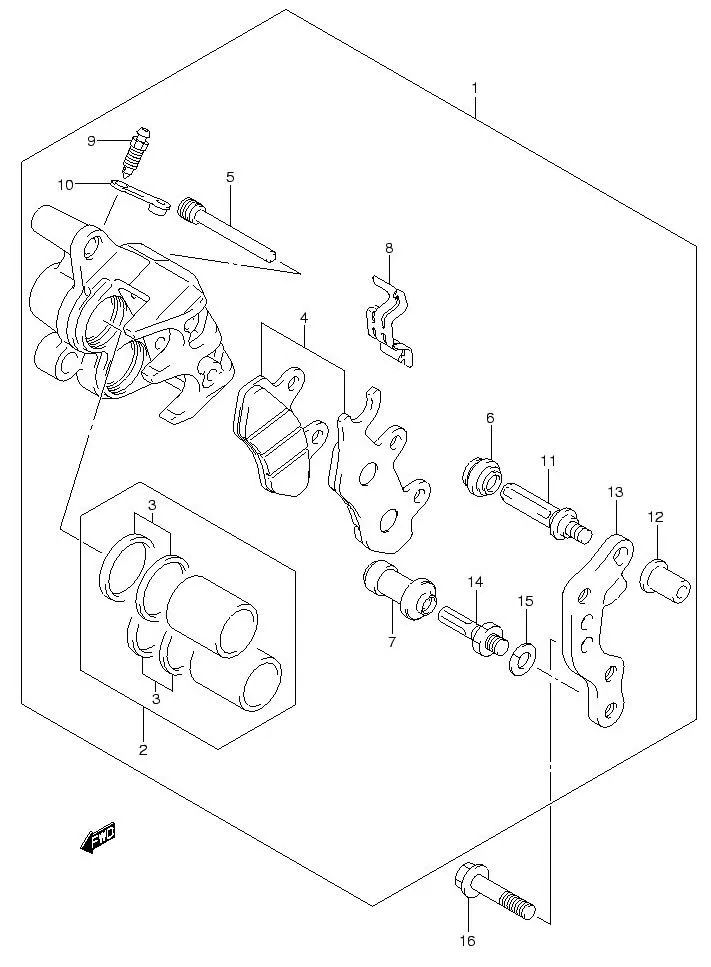

FIG.45 FRONT CALIPER

FIG.45 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-07H21-000
SUB: 59100B07H21N000		 CALIPER ASSY, FRONT 1 Rp981.500
2 69100-31810-000
SUB: 69100-31810L000		 •PISTON SET 1 Rp166.500
3 59300-13820-000
SUB: 59300-13820L000		 ••SEAL SET, PISTON 1 Rp37.000
4 59100-21850-000
SUB: 59100-21850L000		 •PAD SET (N ABS) 1 Rp66.000
5 59345-14600-000
SUB: 59345-14600L000		 •PIN 2 Rp35.000
6 59303-14500-000
SUB: 59303-14500L000		 •BOOT 1 Rp12.500
7 59386-13A00-000
SUB: 59386-13A00L000		 •BOOT 1 Rp14.000
8 69115-31D10-000
SUB: 69115-31D10L000		 •SPRING 1 Rp26.500
9 59121-01A00-000
SUB: 59121-01A00L000		 •BLEEDER 1 Rp14.500
10 59122-01A00-000
SUB: 59122B01A00N000		 •CAP, BLEEDER 1 Rp3.000
11 59387-00B20-000
SUB: 59387-00B20L000		 •PIN 1 Rp25.500
12 59388-00B20-000
SUB: 59388-00B20L000		 •NUT 1 Rp28.500
13 59151-47E00-000 •BRACKET 1 Rp541.000
14 59382-13A00-000
SUB: 59382-13A00L000		 •BOLT 1 Rp13.500
15 59314-13A00-000
SUB: 59314B13A00N000		 •WASHER 1 Rp3.000
16 09103-08107-000
SUB: 09103B08107N000		 BOLT (8X33) 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
