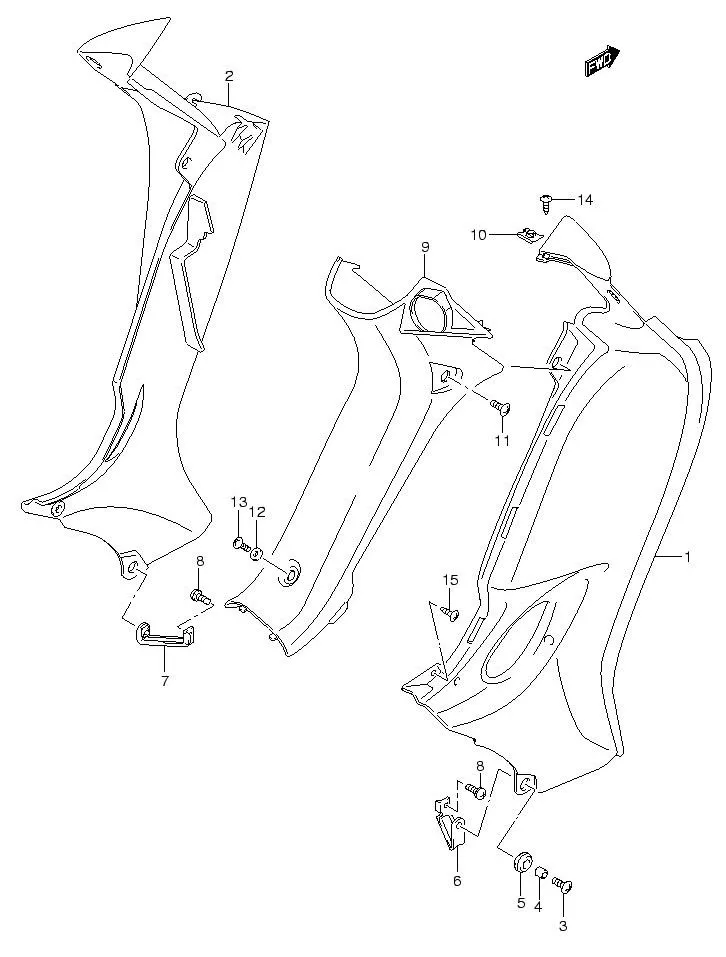

FIG.32 SHIELD LEG

FIG.32 SHIELD LEG
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 48111B07H00NX0G		 SHIELD LEG RH (BRILIANT WHITE) 1 - FK110-SC
1-3 DISCONTINUE
SUB: 48111B07H00N735		 SHIELD LEG RH (SOLARIZE SILVER) 1 - FK110-SD
1-4 48111-07H10-X0H
SUB: 48111B07H00NX0H		 SHIELD LEG RH (TITAN BLACK) 1 Rp228.500 FK110-SD
1-5 48111-07H00-X1G
SUB: 48111B07H00NX1G		 SHIELD LEG RH (STRONG RED) 1 Rp235.000 FK110-SD
1-6 48111-07H10-X2J
SUB: 48111B07H00NX2J		 SHIELD LEG RH (M BRITE BLUE) 1 Rp292.500 FK110-SD
1-7 DISCONTINUE
SUB: 48111B07H00NX3B		 SHIELD LEG RH (AURA YELLOW) 1 - FK110-SD
1-1 DISCONTINUE
SUB: 48111B07H00NX6D		 SHIELD LEG RH (NEW ORANGE) 1 - FK110-SC
2-7 DISCONTINUE
SUB: 48121B07H00NX3B		 SHIELD LEG LH (AURA YELLOW) 1 - FK110-SD
2-6 48121-07H10-X2J
SUB: 48121B07H00NX2J		 SHIELD LEG LH (M BRITE BLUE) 1 Rp292.500 FK110-SD
2-5 48121-07H00-X1G
SUB: 48121B07H00NX1G		 SHIELD LEG LH (STRONG RED) 1 Rp235.000 FK110-SD
2-3 DISCONTINUE
SUB: 48121B07H00N735		 SHIELD LEG LH (SOLARIZE SILVER) 1 - FK110-SD
2-2 DISCONTINUE
SUB: 48121B07H00NX0G		 SHIELD LEG LH (BRILIANT WHITE) 1 - FK110-SC
2-1 DISCONTINUE
SUB: 48121B07H00NX6D		 SHIELD LEG LH (NEW ORANGE) 1 - FK110-SC
2-4 48121-07H10-X0H
SUB: 48121B07H00NX0H		 SHIELD LEG LH (TITAN BLACK) 1 Rp228.500 FK110-SD
3 09136-06004-000
SUB: 09136-06009-000		 SCREW, LOWER 2 Rp14.500
4 48211-09G00-000
SUB: 48211B09G00N000		 SPACER 2 Rp3.000
5 09320-09062-000
SUB: 09320-09045-000		 CUSHION 2 Rp14.000
6 DISCONTINUE
SUB: 48140B07H00N000		 BRACE, LEG RH 1 -
7 DISCONTINUE
SUB: 48150B07H00N000		 BRACE, LEG LH 1 -
8 02142-0616B-000
SUB: 02142B0616BN000		 SCREW, BRACE 2 Rp5.500
9 48131-07H10-000
SUB: 48131B07H10N000		 SHIELD, LEG CENTER 1 Rp74.000
10 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
11 48135-07H00-000
SUB: 48135B07H00N000		 SCREW, CENTER UPPER 2 Rp7.000
12 09169-06071-000
SUB: 09169B06071N000		 WASHER, REAR 1 Rp7.500
13 02142-0612A-000
SUB: 02142B0612BN000		 SCREW, CENTER REAR 1 Rp4.000
14 09136-05052-000
SUB: 09136B05052N000		 SCREW, LEG UPPER 4 Rp6.500
15 09136-05052-000
SUB: 09136B05052N000		 SCREW, LEG REAR 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
