NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

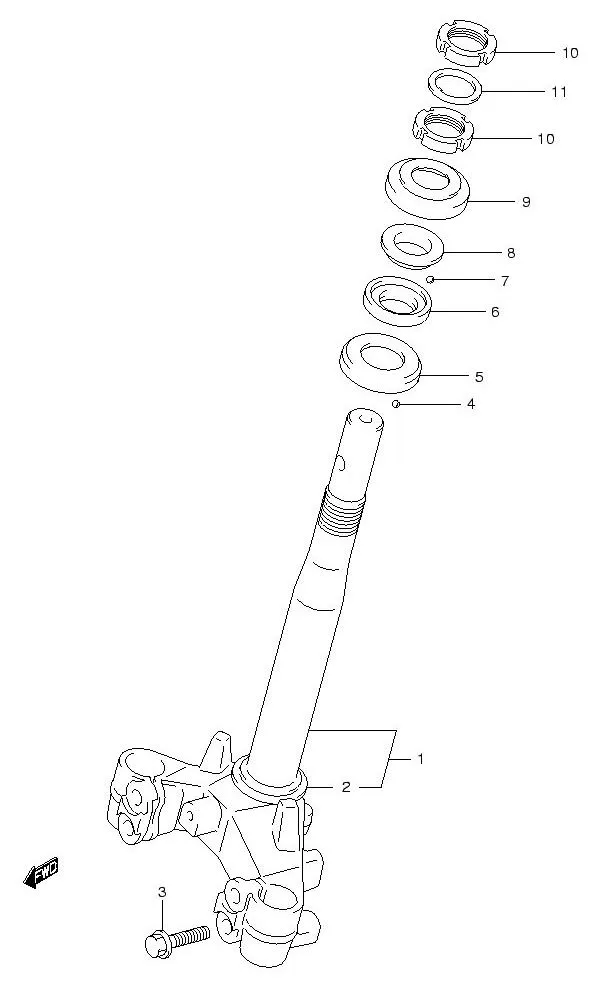

FIG.42 FRONT FORK BRACKET

FIG.42 FRONT FORK BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51410B09G20N000		 BRACKET, FRONT FORK UNDER 1 -
2 51622-41H00-000
SUB: 51622B35400N000		 •RACE, OUTER LOWER 1 Rp56.500
3 51156-09G00-000 BOLT 4 Rp4.500
4 06111-06004-000
SUB: 06111B06003N000		 BALL, LOWER 27 Rp1.000
5 51612-35400-000
SUB: 51612B35400N000		 RACE, INNER LOWER 1 Rp24.000
6 51611-09G00-000
SUB: 51611B09G00N000		 RACE, INNER UPPER 1 Rp29.000
7 06111-06004-000
SUB: 06111B06003N000		 BALL, UPPER 22 Rp1.000
8 51621-25000-000
SUB: 51621B25000N000		 RACE, OUTER UPPER 1 Rp23.000
9 51643-06001-000
SUB: 51643-06001L000		 SEAL, DUST UPPER 1 Rp3.000
10 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM 2 Rp20.000
11 09166-24001-000
SUB: 09166B24001N000		 WASHER 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
