NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

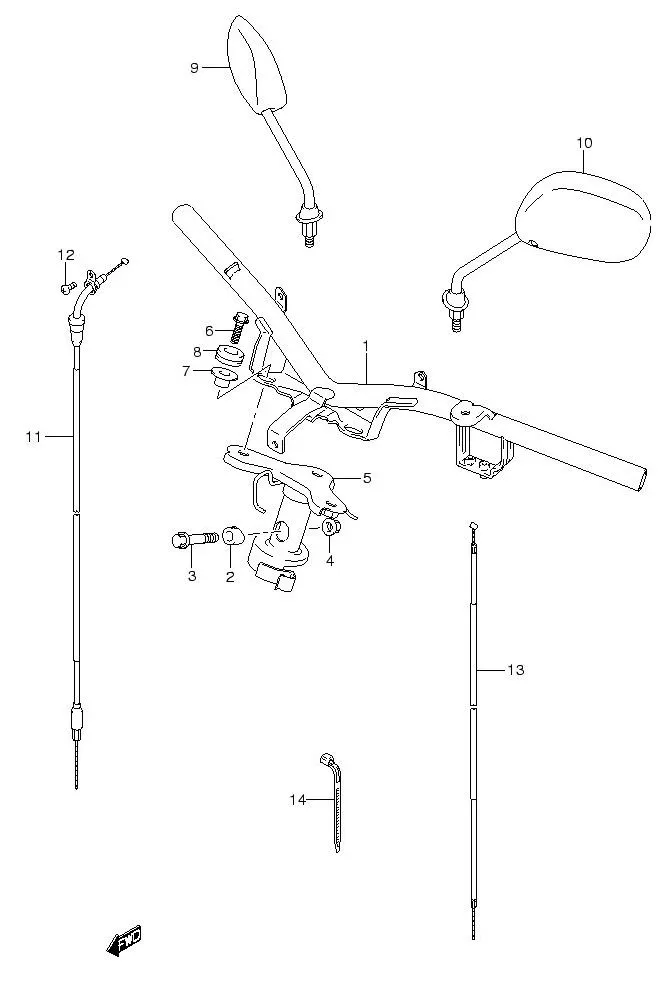

FIG.34 HANDLER BAR

FIG.34 HANDLER BAR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 56110B07H10N000		 HANDLEBAR 1 -
2 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLE 1 Rp8.000
3 09103-10126-000
SUB: 09103B10126N000		 BOLT 1 Rp28.500
4 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
5 DISCONTINUE
SUB: 51310B07H10N000		 BRACKET, FORK UPPER 1 -
6 01550-0825A-000
SUB: 01550-0825B-000		 BOLT 3 Rp3.500
7 DISCONTINUE
SUB: 56243B09G00N000		 SPACER 3 -
8 DISCONTINUE
SUB: 56247B09G00N000		 CUSHION 3 -
9 56500-09G40-000
SUB: 56500B09G40N000		 MIRROR ASSY, REAR VIEW RH 1 Rp87.500
10 56600-09G40-000
SUB: 56600B09G40N000		 MIRROR ASSY, REAR VIEW LH 1 Rp87.500
11 58300-07H00-000
SUB: 58300B07H00N000		 CABLE ASSY, THROTTLE 1 Rp33.000
12 02112-0512A-000
SUB: 02112B0512BN000		 SCREW 1 Rp2.500
13 58410-09G00-000
SUB: 58410B09G00N000		 CABLE, STARTER 1 Rp21.500
14 DISCONTINUE
SUB: 09407-25401L000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
