NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

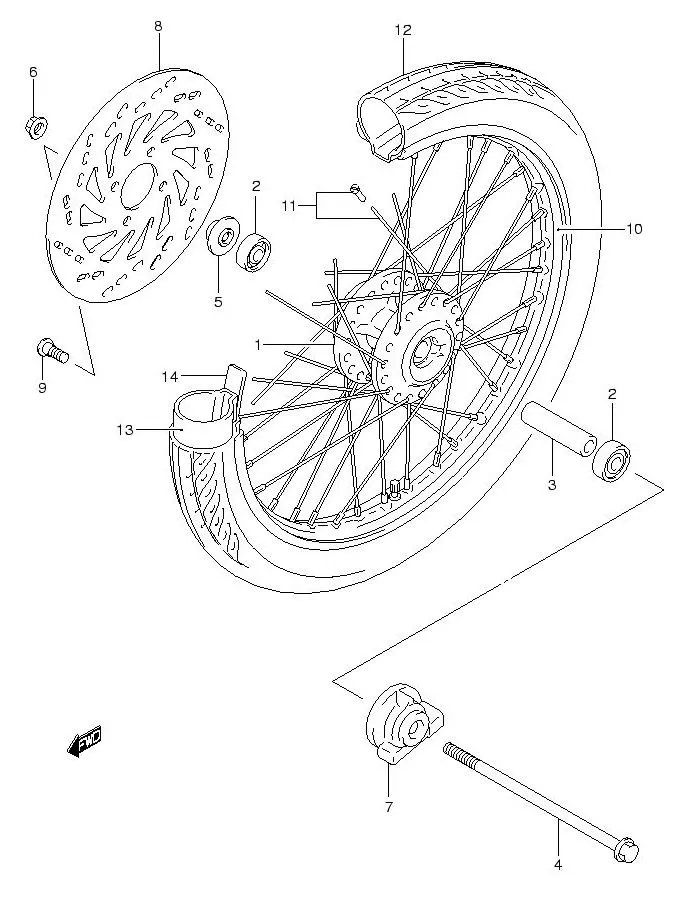

FIG.44 FRONT WHEEL

FIG.44 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-09G00-000
SUB: 54111B09G00N000		 HUB, FRONT WHEEL 1 Rp126.000
2 08123-63007-000 BEARING 2 Rp32.500
3 DISCONTINUE
SUB: 09180-10148-000		 SPACER, FRONT HUB (10.2X16X51) 1 -
4 54711-13H00-000 AXLE, FRONT 1 Rp13.000
5 54750-46100-000 SPACER, FRONT AXLE RH 1 Rp12.500
6 08319-3110A-000 NUT 1 Rp4.500
7 DISCONTINUE
SUB: 54600B07H10N000		 BOX ASSY, SPEEDOMETER GEAR 1 -
8 59211-09G00-018
SUB: 59211B09G00N018		 DISC FRONT BRAKE (NEBULAR GOLD) 1 Rp213.000
9 59218-09G10-000 BOLT 4 Rp7.000
10 55311-09G40-000
SUB: 55311B09G40N000		 RIM, FRONT WHEEL (17X1.40) 1 Rp351.000
11 55320-46100-000
SUB: 55320-46100L000		 SPORK SET, FRONT WHEEL 1 Rp44.500
12 DISCONTINUE
SUB: 55110B30D40N000		 TIRE, FRONT (2.50-17) 1 -
13 DISCONTINUE
SUB: 55200B20G81N000		 TUBE ASSY, WHEEL INNER 1 -
14 DISCONTINUE
SUB: 55261B38D20N000		 PROTECTOR, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
