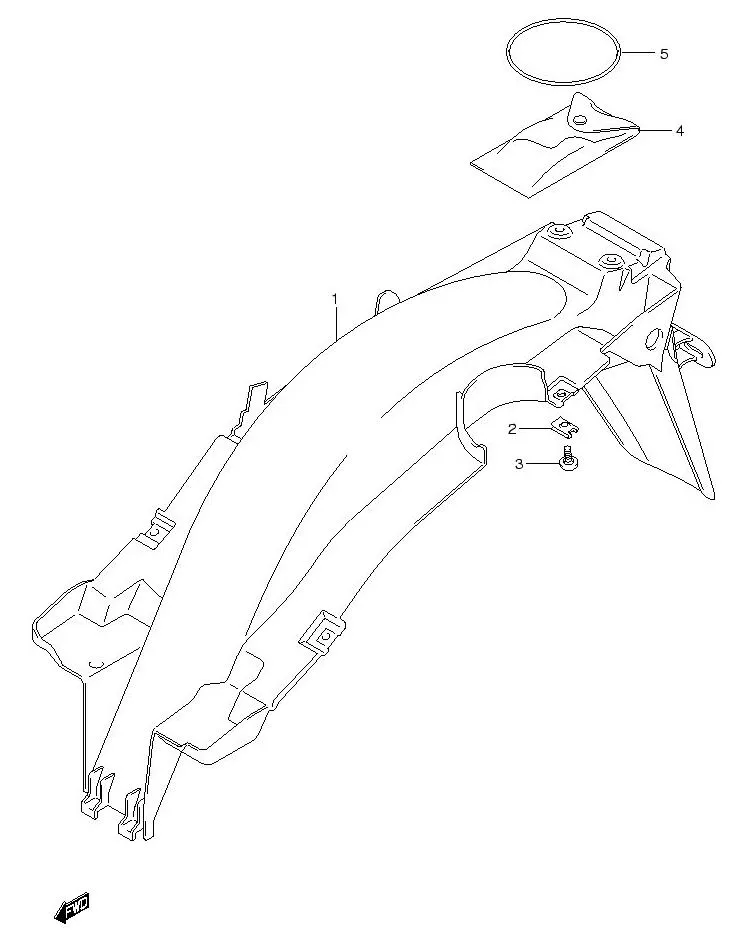

FIG.37 REAR FENDER

FIG.37 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-07H00-000
SUB: 63111B07H00N000		 FENDER, REAR 1 Rp65.500
2 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
3 61361-09G00-000
SUB: 61361B09G00N000		 BOLT 5 Rp4.000
4 DISCONTINUE
SUB: 09800B21005N000		 TOOL ASSY 1 -
5 DISCONTINUE
SUB: 47435B09G00N000		 BAND, TOOL 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
