NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

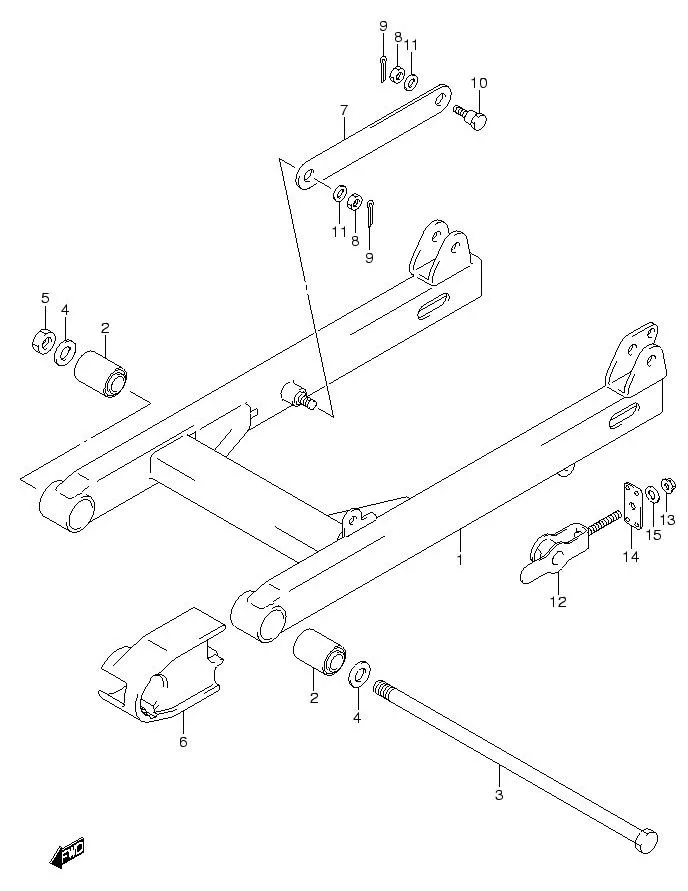

FIG.47 REAR SWINGARM

FIG.47 REAR SWINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-20G10-13L
SUB: 61100B20G50N000		 SWINGING ARM, REAR 1 Rp457.500
2 09319-10009-000
SUB: 09319-10009L000		 BUSHING (10X23X35) 4 Rp18.000
3 61211-07H00-000
SUB: 61211B07H00N000		 SHAFT, REAR SWINGING ARM 1 Rp21.000
4 DISCONTINUE
SUB: 09160B10079N000		 WASHER 2 -
5 08319-3110A-000
SUB: 08319B3110BN000		 NUT 1 Rp4.500
6 61273-16H00-000
SUB: 61273B20G10N000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp20.000
7 DISCONTINUE
SUB: 64311B31C10N000		 TORQUE LINK, REAR 1 -
8 09140-08008-000 NUT 2 Rp10.500
9 04111-2020A-000
SUB: 04111B2020AN000		 COTTER PIN 2 Rp5.000
10 09111-08013-000
SUB: 09111B08013N000		 BOLT (8X26.5) 1 Rp5.500
11 08322M0108A-000
SUB: 08322-0108B-000		 WASHER 2 Rp5.500
12 61410-20G30-000
SUB: 61410B20G00N000		 ADJUSTER, CHAIN 2 Rp34.500
13 08319-3106A-000
SUB: 08319B3106AN000		 NUT 2 Rp6.500
14 61421-16H00-000
SUB: 61421B20G00N000		 GUIDE, CHAIN ADJUSTER 2 Rp29.000
15 09160-12017-000
SUB: 09160B12017N000		 WASHER, CHAIN ADJUSTER GUIDE 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
