NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

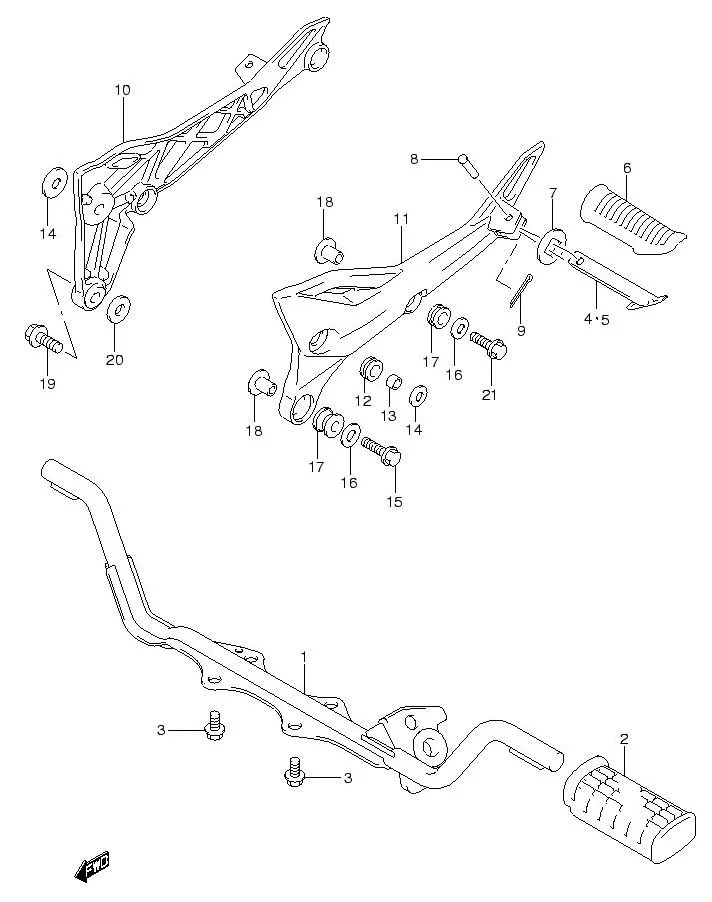

FIG.29 FOOTREST

FIG.29 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-09G00-000
SUB: 43510B09G00N000		 BAR, FRONT FOOTREST 1 Rp156.500
2 43551-35560-000
SUB: 43551-35510L000		 RUBBER 2 Rp18.500
3 01550-0816A-000
SUB: 01550B0816BN000		 BOLT 4 Rp6.000
4 43610-34A00-000
SUB: 43610-34A00L000		 BAR, PILLION RH 1 Rp15.000
5 43710-34A00-000
SUB: 43710-34A00L000		 BAR, PILLION LH 1 Rp15.000
6 43612-09G00-000
SUB: 43612B09G00N000		 RUBBER 2 Rp14.000
7 43631-09G00-000
SUB: 43631B09G00N000		 WASHER 2 Rp7.500
8 09200-06041-000
SUB: 09200B06041N000		 PIN 2 Rp4.000
9 04111-2515A-000
SUB: 04111B2515AN000		 COTTER PIN 2 Rp8.500
10 DISCONTINUE
SUB: 43811B07H00N000		 BRACKET, PILLION RH 1 -
11 DISCONTINUE
SUB: 43821B07H00N000		 BRACKET, PILLION LH 1 -
12 DISCONTINUE
SUB: 43817B23F20N000		 RUBBER, PIVOT LH 1 -
13 DISCONTINUE
SUB: 43816B23F20N000		 SPACER, PIVOT 1 -
14 DISCONTINUE
SUB: 09160B10079N000		 WASHER 2 -
15 01550-0840B-000
SUB: 01550B0840BN000		 BOLT, LH 1 Rp5.500
16 09160-08032-000
SUB: 09160B08032N000		 WASHER 2 Rp6.500
17 43818-07H00-000
SUB: 43818B07H00N000		 RUBBER 2 Rp8.500
18 09180-08151-000
SUB: 09180B08151N000		 SPACER 1 Rp22.000
19 DISCONTINUE
SUB: 09103B08342N000		 BOLT, RH 1 -
20 09160-08128-000 WASHER, INNER RH 1 Rp6.500
21 01550-0830B-000
SUB: 01550B0830BN000		 BOLT, LH 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
