NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

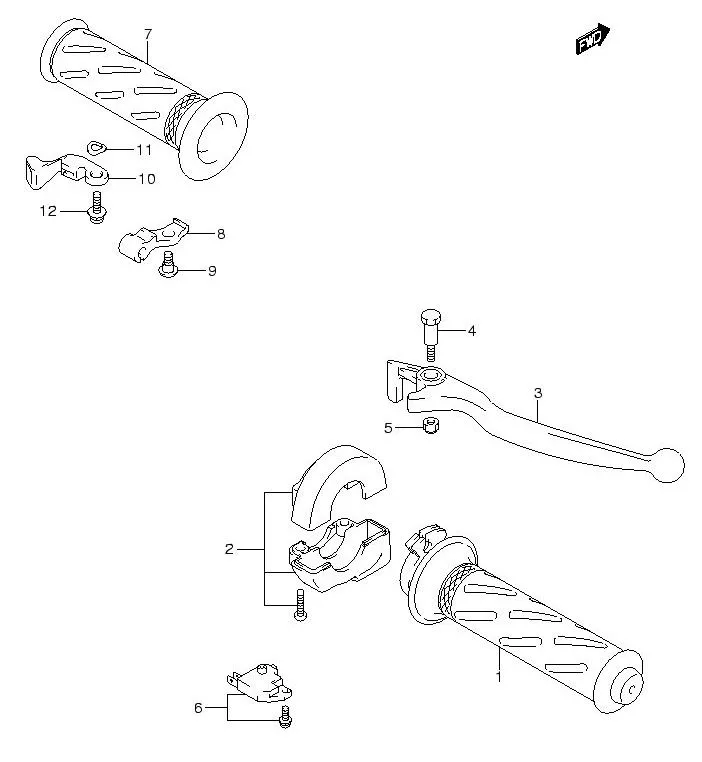

FIG.36 LEVER HANDLE

FIG.36 LEVER HANDLE
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09G10-000
SUB: 57110B09G10N000		 GRIP, THROTTLE 1 Rp42.500
2 57100-09G11-000
SUB: 57100B09G11N000		 CASE ASSY, THROTTLE 1 Rp19.500
3 57421-46G00-000
SUB: 57421B46G00N000		 LEVER, BRAKE 1 Rp38.000
4 DISCONTINUE
SUB: 57431B29C10N000		 BOLT, PIVOT 1 -
5 DISCONTINUE
SUB: 08319B21063N000		 NUT 1 -
6 57460-41H00-000
SUB: 57460B17C01N000		 SWITCH, STOP 1 Rp69.500
7 57211-09G00-000
SUB: 57211B09G00N000		 GRIP, LH 1 Rp30.000
8 DISCONTINUE
SUB: 58711B09G00N000		 HOLDER, STARTER CABLE 1 -
9 09139-05057-000
SUB: 09139B05057N000		 SCREW 1 Rp6.500
10 58721-23F01-000 LEVER CHOKE 1 Rp10.500
11 DISCONTINUE
SUB: 09164B07001N000		 WASHER 1 -
12 02112-7516A-000
SUB: 02112-7516B-000		 SCREW 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
